W-285 (12A-285D790) - White Outdoor 22" Walk-Behind Mower (2005) General Assembly Parts Diagram

22" Walk-Behind Mower

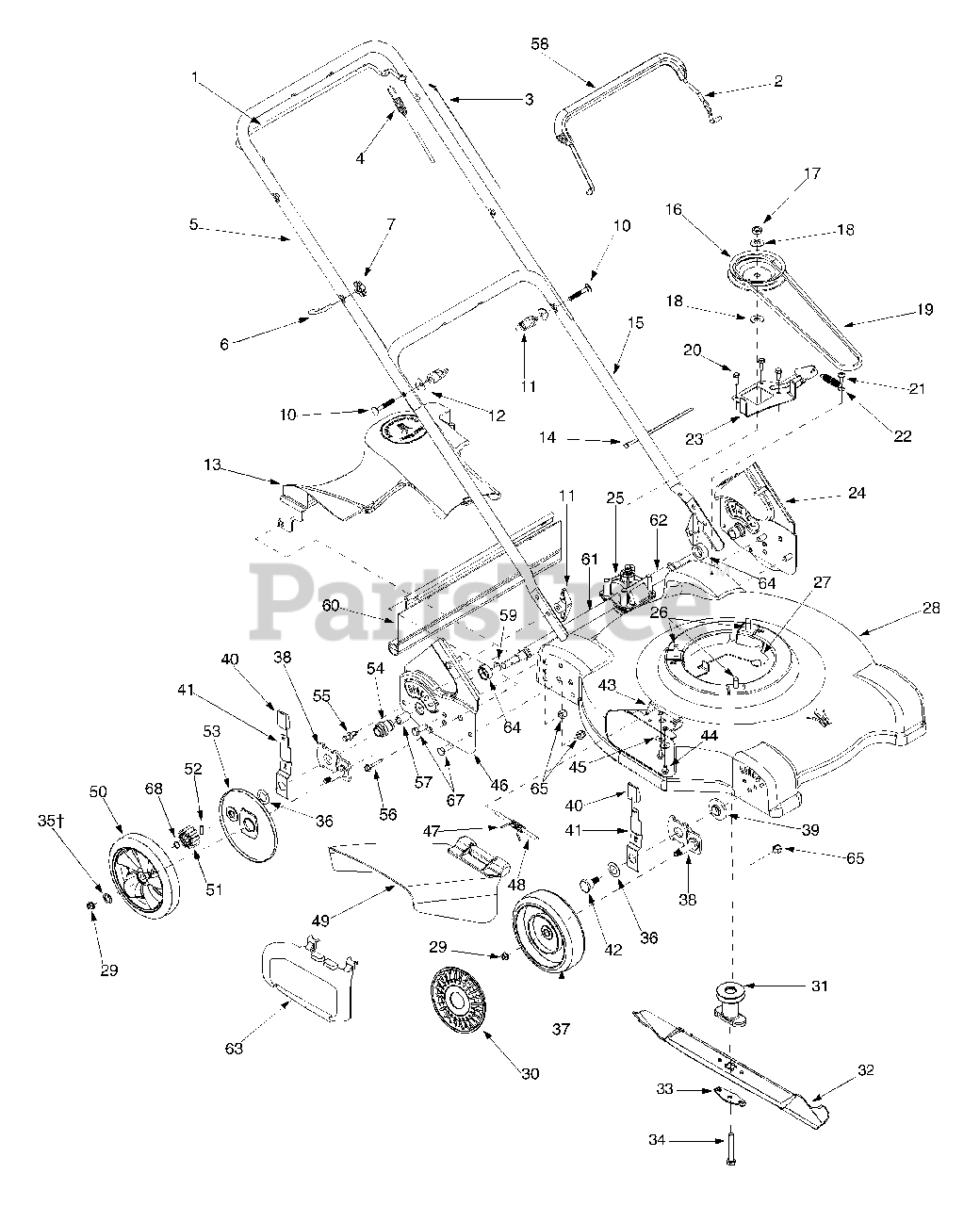

General Assembly Parts Diagram

  • Title

1

White Outdoor 747-1214

Drive Control Handle

$22.99

$

In Stock, Qty 5

0

2

White Outdoor 747-1161A

Blade Control Handle

Variations

White Outdoor 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 1 left!

0

$13.99

$

In Stock, only 1 left!

0

3

White Outdoor 746-1114

Blade Control Cable - 50.56"
(Superseded to 946-1114)

$23.99

$

In Stock, Qty 7

0

4

White Outdoor 746-1093A

Drive Control Cable
(Superseded to 946-1093A)

$

$

Not available

5

White Outdoor 749-1092A

Upper Handle

Variations

White Outdoor 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

White Outdoor 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

6

White Outdoor 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 720-0279

Wing Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

11

White Outdoor 720-0284

Wing Nut 5/16-18

$6.99

$

In Stock, Qty 20+

0

12

White Outdoor 736-0451

Shoulder Washer.320 ID x.93 OD

$4.49

$

In Stock, Qty 7

0

13

White Outdoor 731-0074

Transmission Cover

$

$

Not available

14

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 749-04037

Lower Handle

Variations

White Outdoor 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 5

0

$53.99

$

In Stock, Qty 5

0

16

White Outdoor 756-1169

Transmission Pulley

$

$

Not available

17

White Outdoor 712-0240

Jam Nut 7/16-20
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 736-0407

Bell Washer.45 ID x 1.00 OD

$3.99

$

In Stock, Qty 12

0

19

White Outdoor 754-0484

V-Belt
(Superseded to 954-0484)

$

$

Not available

20

White Outdoor 710-0642

Hex Washer Screw 1/4-20 x.75

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 738-1002

Shoulder Screw.375 x.25

$4.49

$

In Stock, only 1 left!

0

22

White Outdoor 732-0993

Extension Spring

$

$

Not available

23

White Outdoor 782-9061

Transmission Belt Bracket

$

$

Not available

24

White Outdoor 682-3073

Handle Bracket Assembly - LH

Variations

White Outdoor 682-3073-0638

BRACKET ASSY-HANDLE LH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 682-3073-0665

BRACKET ASSY-HANDLE LH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 682-3073-0709

BRACKET ASSY-HANDLE LH - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

25

White Outdoor 618-0607A

Transmission Assembly
(Superseded to 918-0607A)

$

$

Not available

26

White Outdoor 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 782-9063

Engine Belt Keeper Bracket
(Superseded to 782-9063B-0637)

$26.99

$

Usually ships in 3-6 days

0

28

White Outdoor 687-02049

22" Deck Assembly

Variations

White Outdoor 687-02049-0638

DECK ASSY-22" SIDE DISCHARGE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 687-02049-0665

DECK ASSY-22" SIDE DISCHARGE - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 687-02049-0691

DECK ASSY-22" SIDE DISCHARGE - BLACK JACK (0691)

$

$

Not available

White Outdoor 687-02049-0709

DECK ASSY-22" SIDE DISCHARGE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

29

White Outdoor 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

30

White Outdoor 731-0981A

Hub Cap
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

31

White Outdoor 748-04016A

One Piece Blade Adapter

$58.99

$

In Stock, Qty 5

0

32

White Outdoor 742-0742A

22" Mulching Blade
(Superseded to 942-0742A)

$24.99

$

In Stock, only 1 left!

0

33

White Outdoor 736-0524B

Bell Blade Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 5

0

34

White Outdoor 710-1044

Hex Cap Screw 3/8-24 x 2.5

$3.99

$

In Stock, only 2 left!

0

35

White Outdoor 736-3013

Flat Washer 1/2 x 1.00 x.030

Note: If Equipped

$4.49

$

In Stock, only 3 left!

0

36

White Outdoor 736-0741

Bell Washer.401 ID x.870 OD

$4.99

$

Usually ships in 3-6 days

0

37

White Outdoor 734-04158

Front Wheel
(Superseded to 734-04176A)

$46.99

$

Usually ships in 3-6 days

0

38

682-02094

Pivot Arm Assembly

$

$

Not available

39

White Outdoor 741-0751

Height Adjuster Bearing

$8.99

$

Usually ships in 3-6 days

0

40

White Outdoor 720-0426

Height Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

41

White Outdoor 732-1026

Spring Lever

$6.99

$

In Stock, only 1 left!

0

42

White Outdoor 738-1172

Shoulder Screw 3/8-16

$5.99

$

Usually ships in 3-6 days

0

43

White Outdoor 17032A

Deflector Chute Adapter

$10.99

$

In Stock, only 2 left!

0

44

White Outdoor 710-0599

Hex Washer Screw 1/4-20 x.50

$4.49

$

In Stock, Qty 20+

0

45

White Outdoor 736-0270

Bell Washer.265 ID x.75 OD

$3.99

$

In Stock, Qty 20+

0

46

White Outdoor 682-3072

Handle Bracket Assembly - RH

Variations

White Outdoor 682-3072-0638

BRACKET ASSY-HANDLE RH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 682-3072-0665

BRACKET ASSY-HANDLE RH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 682-3072-0709

BRACKET ASSY-HANDLE RH - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

47

White Outdoor 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

48

White Outdoor 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

49

White Outdoor 731-1034B

Side Discharge Chute Assembly
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

50

White Outdoor 734-2042

Rear Wheel
(Superseded to 734-2042A)

$38.99

$

In Stock, Qty 12

0

51

White Outdoor 717-1762

Spur Gear 14T RH

$13.99

$

In Stock, only 3 left!

0

White Outdoor 717-1761

Spur Gear 14T LH

$13.99

$

In Stock, only 4 left!

0

52

White Outdoor 715-0221

Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

53

White Outdoor 731-04643

Wheel Cover

$8.49

$

In Stock, only 1 left!

0

54

White Outdoor 748-0455

Bearing Support

$18.99

$

Usually ships in 3-6 days

0

55

White Outdoor 728-0199

Plastic Rivet

$4.49

$

In Stock, Qty 20+

0

56

White Outdoor 710-1802

Screw 1/4-20

$

$

Not available

57

White Outdoor 741-0710

Sleeve Bearing

$6.49

$

Usually ships in 3-6 days

0

58

White Outdoor 731-04859

Snap-On Bail Cover

$11.99

$

Usually ships in 3-6 days

0

59

White Outdoor 716-0198

Retainer Ring

$4.99

$

In Stock, Qty 10

0

60

White Outdoor 731-04019

Trail Shield

$21.99

$

In Stock, Qty 12

0

61

White Outdoor 750-1210

Sleeve Spacer.550 ID x 9.0 OD

$

$

Not available

62

White Outdoor 750-1209

Sleeve Spacer.550 ID x 2.44 OD

$

$

Not available

63

White Outdoor 631-04045

Snap Mulching Plug

$19.99

$

In Stock, Qty 10

0

64

White Outdoor 748-0390

Bearing Spacer

$5.99

$

In Stock, Qty 10

0

65

White Outdoor 712-0431

Hex Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

66

White Outdoor 710-0216

Hex Cap Screw 3/8-16 x 1.0

$4.49

$

In Stock, Qty 15

0

67

White Outdoor 716-0865

Snap Ring.500

$4.49

$

In Stock, Qty 20+

0
