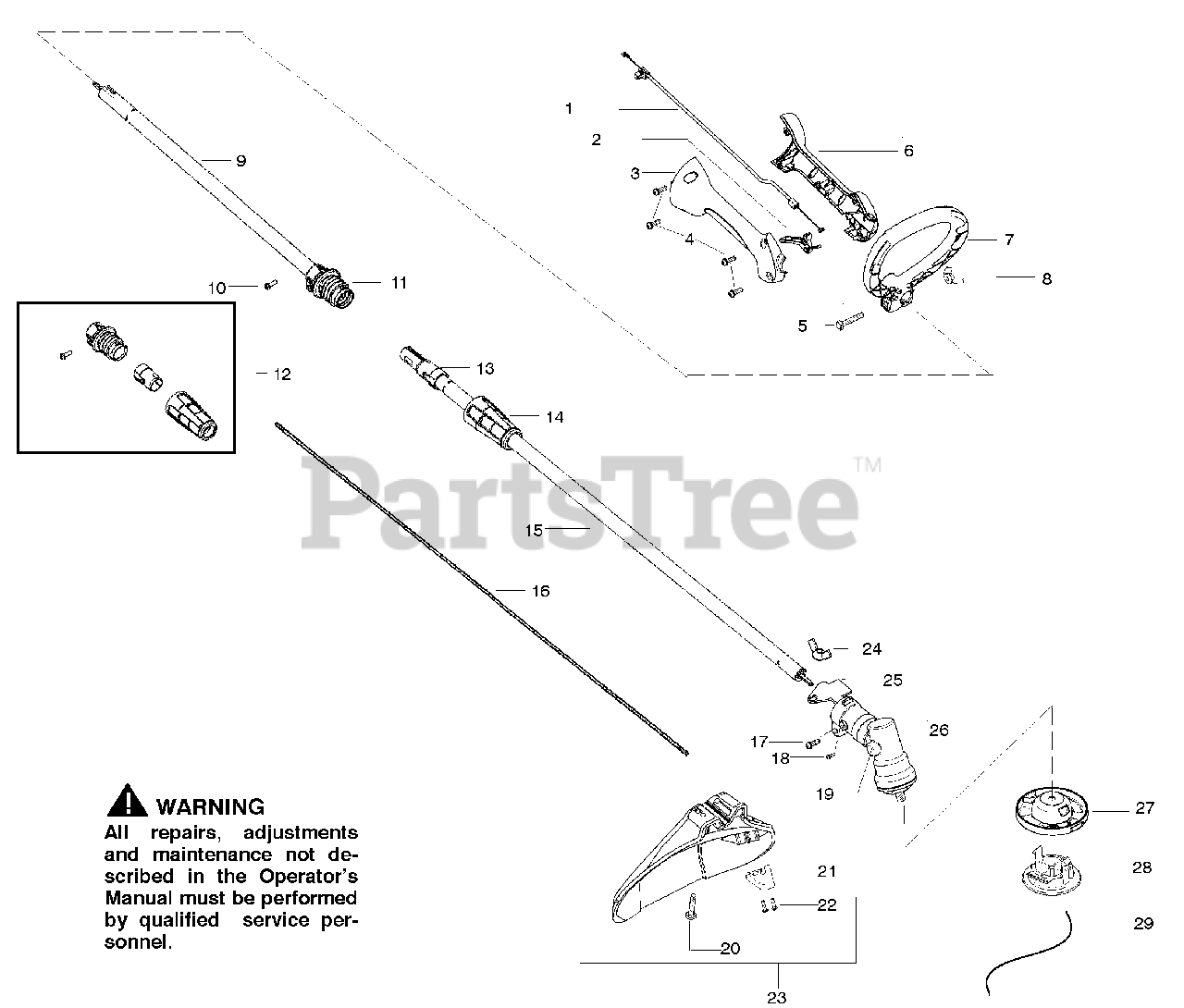

W 25 SFK (967184501) - Weed Eater String Trimmer (2012-11) SHAFT HANDLE Parts Diagram

String Trimmer

SHAFT HANDLE Parts Diagram

  • Title

1

Poulan 530057991

ASSY THROTTLE CABLE

$11.99

$

In Stock, only 2 left!

0

2

Poulan 530058000

TRIGGER

$6.49

$

In Stock, Qty 9

0

3

Poulan 530057582

HSG THROTTLE RH

$10.99

$

In Stock, only 2 left!

0

4

Poulan 530015880

SCREW

$4.99

$

In Stock, Qty 8

0

5

Poulan 530015821

BOLT\-1/4-20X1-1/2

$5.99

$

Usually ships in 3-10 days

0

6

Poulan 530057581

HSG THROTTLE LH

$11.99

$

Usually ships in 3-10 days

0

7

Poulan 530058580

ASSY ASSIST HANDLE
(Superseded to 530071747)

Note: INCL 5 8

$

$

Not available

8

Poulan 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

9

Poulan 545008059

KIT D'SHAFT UPPER BLK FLTCC
(Superseded to 545008061)

Note: INCL 10 11

$26.99

$

Usually ships in 3-10 days

0

10

Poulan 530015880

SCREW

$4.99

$

In Stock, Qty 8

0

11

Poulan 000000000

Note: REF 12

$

$

Not available

12

Poulan 581535001

DRIVESHAFT KIT KD COUPLER

Note: INCL 10 11 13 14

$9.99

$

Usually ships in 3-10 days

0

13

Poulan 000000000

Note: REF 12

$

$

Not available

14

Poulan 000000000

Note: REF 12

$

$

Not available

15

Poulan 581494903

KIT D SHAFT LOWER 52"

Note: INCL 13 14

$31.99

$

In Stock, only 1 left!

0

16

Poulan 576198301

ASSY FLEXSHAFT 51"
(Superseded to 545206701)

$11.99

$

Usually ships in 3-10 days

0

17

Poulan 530016014

SCREW - CARB. ADAPTOR

$6.49

$

In Stock, only 3 left!

0

18

Poulan 530016224

SCREW

$4.99

$

In Stock, Qty 5

0

19

Poulan 575724501

PLUG GREASE 8MM
(Superseded to 580345001)

$

$

Not available

20

Poulan 530015820

BOLT, TYPE 2

$4.99

$

In Stock, only 1 left!

0

21

Poulan 530052285

LINE LIMITER 17"

$3.99

$

Usually ships in 3-10 days

0

22

Poulan 530015966

SCREW - THROTTLE HOUSING

$2.49

$

Usually ships in 3-10 days

0

23

Poulan 530071771

KIT SHIELD

Note: INCL 20 21 22 24

$26.99

$

In Stock, only 2 left!

0

24

Poulan 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

25

Poulan 530096067

BRACKET SHIELD

$

$

Not available

26

Poulan 530096068

GEARBOX ASSY 3/4

$53.99

$

In Stock, only 1 left!

0

27

Poulan 545202401

HEAD CUTTING FIXED LINE

$31.99

$

Usually ships in 3-10 days

0

28

Poulan 545202501

CAP FIXED LINE 6

$

$

Not available

29

Poulan 581681001

ACCY WE.095 X 16.5" LINE 12PCS

$5.49

$

In Stock, only 1 left!

0
