W 25 CF (967184201) - Weed Eater String Trimmer (2012-11) ENGINE Parts Diagram

String Trimmer

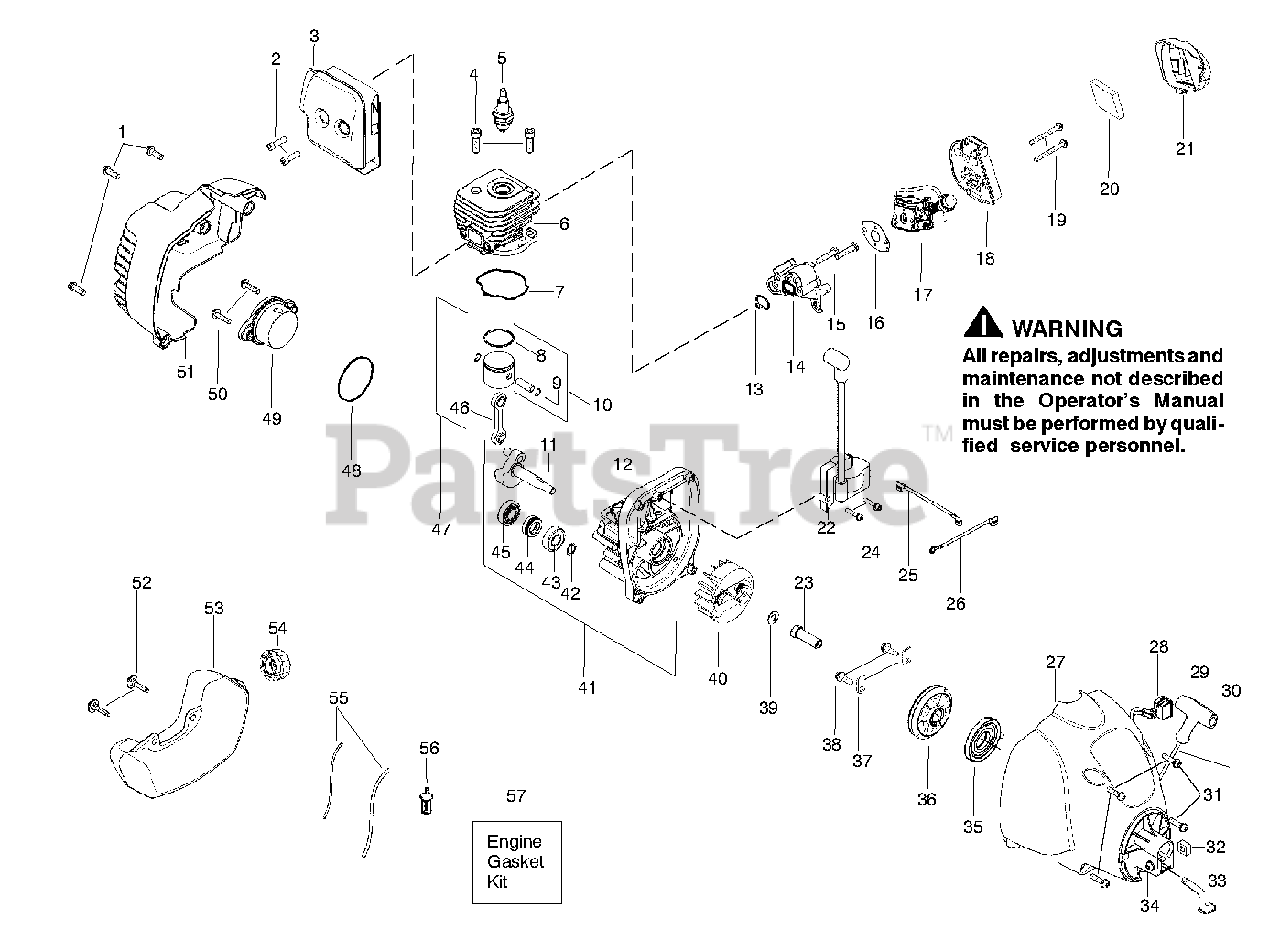

ENGINE Parts Diagram

  • Title

$6.49

$

In Stock, Qty 16

0

2

Poulan 530058982

BOLT MUFFLER

$4.99

$

In Stock, Qty 7

0

3

Poulan 545227901

ASSY MUFFLER SHIELD

Note: INCL 2

$43.99

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, Qty 7

0

5

Poulan 952030249

PLUG-SPARK (RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

6

Poulan 530012541

CYLINDER MACHINED 25CC LO

$31.99

$

In Stock, only 1 left!

0

7

Poulan 000000000

Note: REF 57

$

$

Not available

8

Poulan 545154001

RING PISTON

$4.99

$

In Stock, only 2 left!

0

9

Poulan 530015162

WRIST PIN RET.

$6.49

$

In Stock, only 1 left!

0

10

Poulan 530071357

PISTON
(Superseded to 530071833)

Note: INCL 8 9

$37.99

$

Usually ships in 3-10 days

0

11

Poulan 530057829

ASSY CRANKSHAFT

$43.99

$

Usually ships in 3-10 days

0

12

Poulan 530012582

ASSY CRANKCASE

Note: INCL 43 44 45

$37.99

$

Usually ships in 3-10 days

0

13

Poulan 000000000

Note: REF 57

$

$

Not available

14

Poulan 530057547

ADAPTOR CARBURETOR

$10.99

$

Usually ships in 3-10 days

0

15

$6.49

$

Usually ships in 3-10 days

0

16

Poulan 000000000

Note: REF 57

$

$

Not available

17

Poulan 577135902

CARBURETOR ASSY

$53.99

$

In Stock, only 1 left!

0

18

Poulan 530057585

BASE AIRBOX
(Superseded to 580731001)

$3.99

$

In Stock, only 1 left!

0

19

$4.99

$

In Stock, only 1 left!

0

20

Poulan 530057781

FOAM AIR FILTER

$5.99

$

In Stock, only 1 left!

0

21

Poulan 576694401

AIR BOX COVER

$

$

Not available

22

Poulan 578287001

IGNITION MODULE

$31.99

$

In Stock, only 2 left!

0

23

Poulan 530038604

DRIVE-COUPLING

$5.99

$

Usually ships in 3-10 days

0

24

$2.49

$

Usually ships in 3-10 days

0

25

Poulan 530014663

LEAD WIRE

$9.99

$

Usually ships in 3-10 days

0

26

Poulan 581425901

SWITCH, GROUND WIRE

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 580410802

HOUSING FAN SPRING ASSIST

$12.99

$

Usually ships in 3-10 days

0

28

Poulan 545081869

KIT SWITCH MOMENTARY

$4.99

$

Usually ships in 3-10 days

0

29

Poulan 530027569

HANDLE-STARTER

$6.49

$

Usually ships in 3-10 days

0

30

Poulan 530071798

KIT ROPE

$

$

Not available

31

$8.99

$

In Stock, only 1 left!

0

32

Poulan 530016124

NUT SQUARE

$3.99

$

Usually ships in 3-10 days

0

$3.99

$

Usually ships in 3-10 days

0

34

$4.99

$

Usually ships in 3-10 days

0

35

Poulan 545054901

SPRING STARTER SA
(Superseded to 545008014)

$10.99

$

In Stock, only 1 left!

0

36

Poulan 545050407

KIT STARTER PULLEY

$13.99

$

In Stock, only 3 left!

0

37

Poulan 530027523

RETAINER

$7.49

$

In Stock, only 2 left!

0

38

$4.99

$

In Stock, Qty 5

0

39

Poulan 530015828

WASHER FLAT

$4.99

$

Usually ships in 3-10 days

0

40

Poulan 530054115

FLYWHEEL
(Superseded to 545221701)

$28.99

$

In Stock, only 1 left!

0

41

Poulan 530071768

ASSEMBLY

Note: INCL 11 12 42

$24.99

$

In Stock, only 1 left!

0

42

Poulan 530015941

RETAINING RING

$4.99

$

Usually ships in 3-10 days

0

43

Poulan 530055728

OUTER BEARING

$9.99

$

Usually ships in 3-10 days

0

$7.49

$

In Stock, only 1 left!

0

45

Poulan 530032125

BEARING
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

46

Poulan 530069945

KIT-CONN ROD ASSY
(Superseded to 530049817)

$13.99

$

Usually ships in 3-10 days

0

47

Poulan 530071785

PISTON KIT

Note: INCL 10 46

$47.99

$

Usually ships in 3-10 days

0

48

Poulan 000000000

Note: REF 49 57

$

$

Not available

49

Poulan 530057954

ASSY REAR PLUG

Note: INCL 48

$5.99

$

In Stock, only 1 left!

0

50

$8.99

$

In Stock, only 1 left!

0

51

Poulan 545011004

CYLINDER COVER

$4.99

$

In Stock, only 4 left!

0

52

Poulan 530016445

SCREW FUEL TANK RETAINER

$6.49

$

Usually ships in 3-10 days

0

53

Poulan 581263701

FUEL TANK ASSY LOW PERM 188

$20.99

$

In Stock, only 2 left!

0

54

Poulan 579746601

FUEL CAP W/O RETAINER

$6.49

$

In Stock, Qty 6

0

55

Poulan 000000000

Note: REF 53

$

$

Not available

56

Poulan 530095646

FUEL PICK-UP ASSY

$6.99

$

In Stock, Qty 20+

0

57

Poulan 530071750

KIT GASKET 25CC

Note: INCL 7 13 16 48

$

$

Not available
