W 17542 H (960410120-00) - Weed Eater Lawn Tractor (2010-01) SEAT Parts Diagram

Lawn Tractor

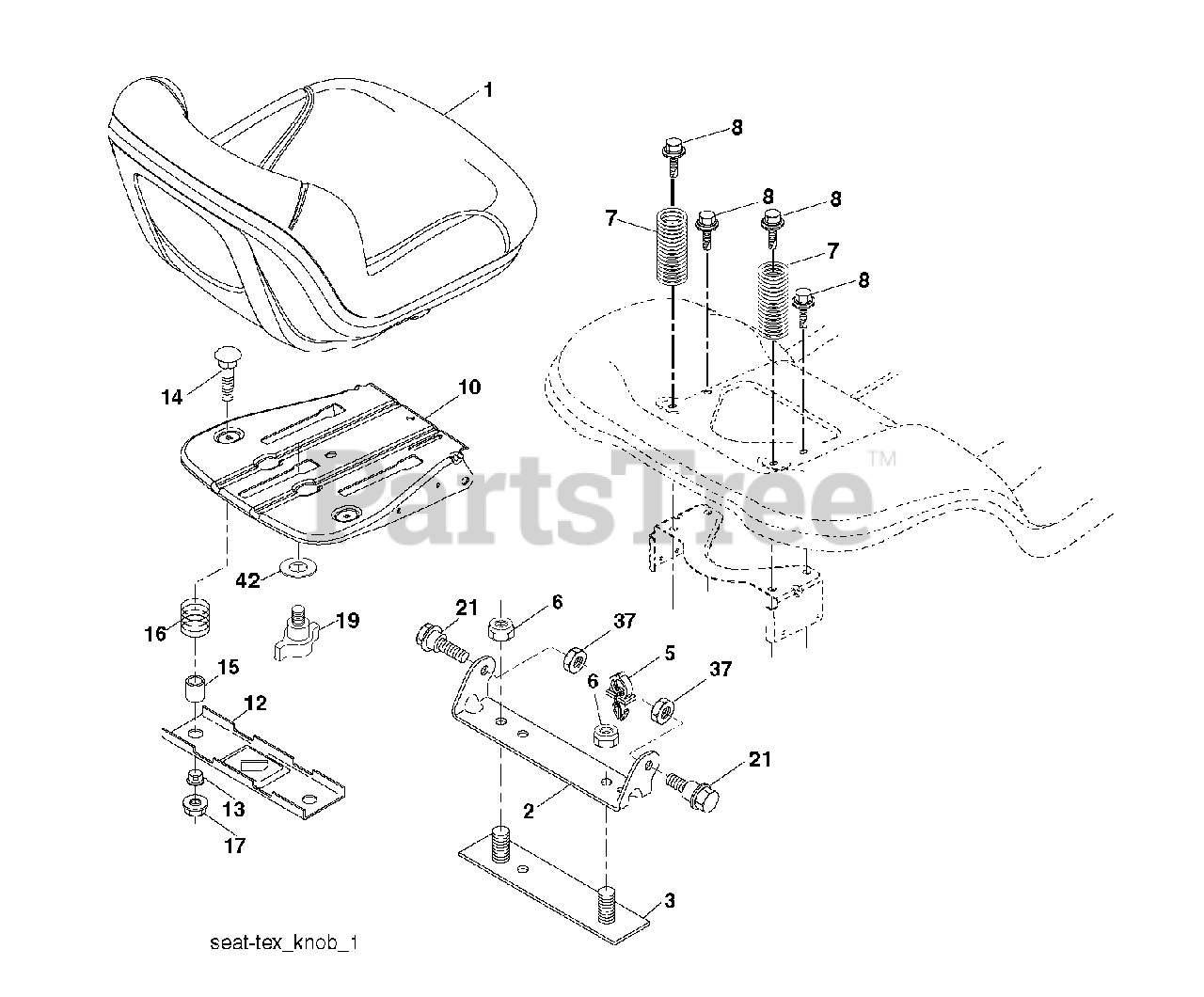

SEAT Parts Diagram

  • Title

1

Poulan 532411405

SEAT.TG130.BLACK.NO/LOGO.

$241.99

$

Usually ships in 3-10 days

0

2

Poulan 532180166

BRKT.PIVOT.FENDER

$13.99

$

In Stock, only 1 left!

0

3

Poulan 532140675

STRAP

$6.99

$

Usually ships in 3-10 days

0

5

Poulan 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0

6

Poulan 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

8

Poulan 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, Qty 5

0

10

Poulan 532199180

PAN.ASM.SEAT.SHORT
(Superseded to 532441805)

$56.99

$

Usually ships in 3-10 days

0

12

Poulan 532199370

BRKT.MNT.OPC.SW.SEAT.

$11.99

$

Usually ships in 3-10 days

0

13

Poulan 532121248

BUSHING

$6.49

$

Usually ships in 3-10 days

0

14

Poulan 872050412

BOLT.ROUND.HEAD.SQUARE.NECK

$6.49

$

Usually ships in 3-10 days

0

15

Poulan 532134300

SPACER SPLIT 28X.96

$7.49

$

Usually ships in 3-10 days

0

16

Poulan 532123740

SPRING COMPRESSED

$6.49

$

Usually ships in 3-10 days

0

17

Poulan 532123976

NUT T
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

19

Poulan 532199372

KNOB.SEAT.ADJ.

$8.99

$

In Stock, only 1 left!

0

21

Poulan 532171852

BOLT.SHOULDER.5/16-18
(Superseded to 587907801)

$4.99

$

In Stock, Qty 8

0

37

Poulan 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

42

Poulan 532199371

WASHER.CUP.SEAT.

$4.99

$

Usually ships in 3-10 days

0
