W 17542 H (960410120-00) - Weed Eater Lawn Tractor (2010-01) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

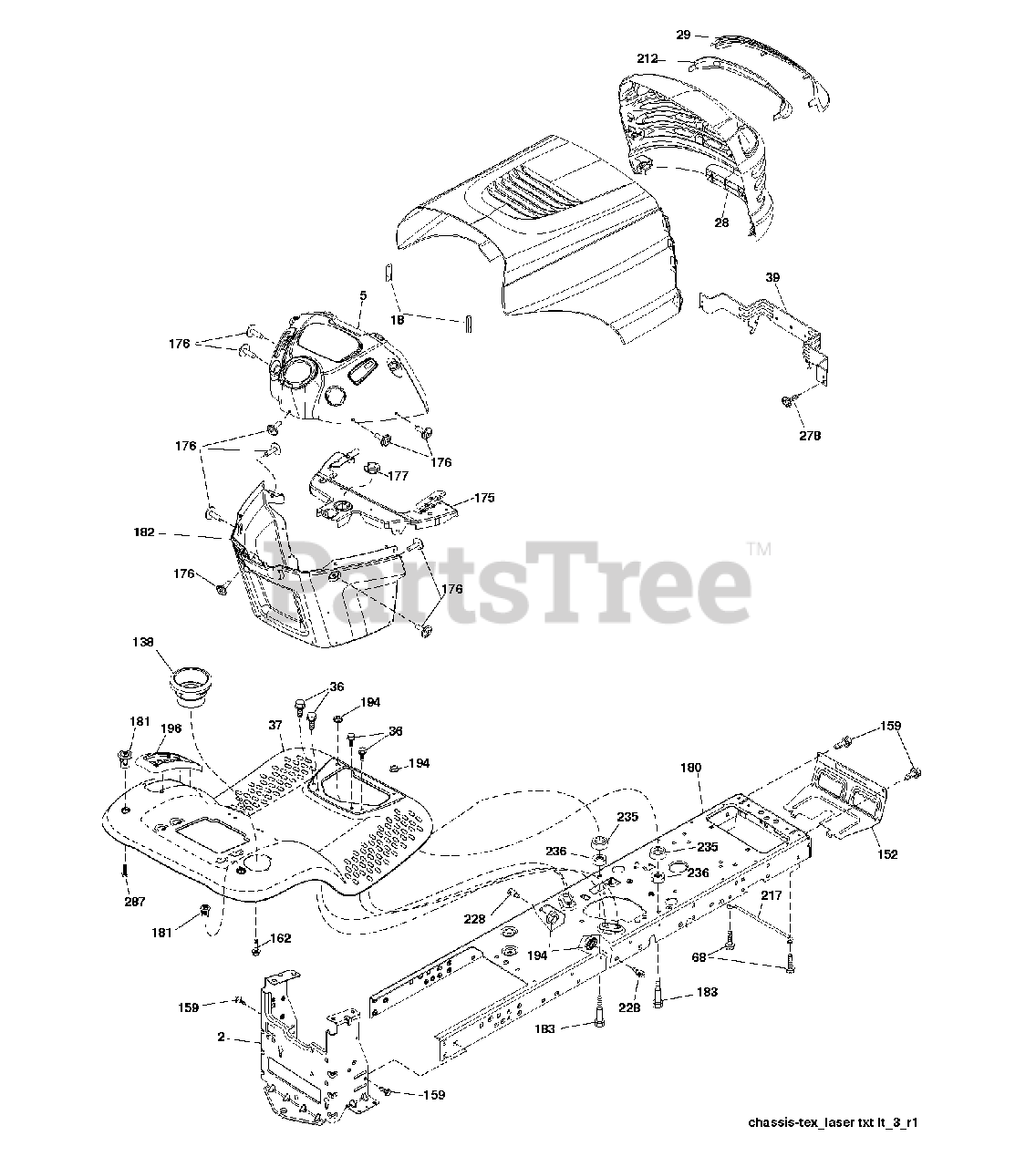

CHASSIS ENCLOSURES Parts Diagram

  • Title
2

Poulan 532194263

DRAWBAR.1PC.NSTL

$74.99

$

Usually ships in 3-10 days

0

5

Poulan 532411764

DASH.P/L.TEX.CBL.CL.N/CHK.BLAC

$66.99

$

Usually ships in 3-10 days

0

$

$

Not available

18

Poulan 532184921

BUMPER.HOOD.LARGE.1.75"

$7.49

$

In Stock, Qty 9

0

$

$

Not available

29

Poulan 532182718

LENS.LASER LT.CLEAR.BAR
(Superseded to 584463701)

$

$

Not available

36

Poulan 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 532424742

FENDER.TLT.FS.W/CPH.550
(Superseded to 532420986)

$206.99

$

Usually ships in 3-10 days

0

39

Poulan 532407807

BRACKET PIVOT

$31.99

$

Usually ships in 3-10 days

0

58

Poulan 532412280

DRAWBAR UPPER 2PC SMALL FENDER

$46.99

$

Usually ships in 3-10 days

0

68

Poulan 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

138

Poulan 532409730

CUPHOLDER.TL.TEX.BLACK

$7.99

$

Usually ships in 3-10 days

0

152

Poulan 532194329

SHIELD.BROWNING/DEBRIS

$20.99

$

Usually ships in 3-10 days

0

159

Poulan 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

162

Poulan 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

175

Poulan 532193243

CROSSMEMBER.LT

$27.99

$

Usually ships in 3-10 days

0

176

Poulan 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

177

Poulan 532195228

BUSHING STEERING

$5.99

$

Usually ships in 3-10 days

0

180

Poulan 532194260

CHASSIS.STAMPING.LT/GT
(Superseded to 532445559)

$265.99

$

Usually ships in 3-10 days

0

181

Poulan 532404796

FEND/FTRST.PCH.CPH.NFW
(Superseded to 532403025)

$

$

Not available

182

Poulan 532193057

DASH.LOWER.LT.CCS

$96.99

$

Usually ships in 3-10 days

0

183

Poulan 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

194

Poulan 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

196

Poulan 532414581

(Superseded to 583351401)

$37.99

$

Usually ships in 3-10 days

0

$

$

Not available

217

Poulan 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

228

Poulan 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

235

Poulan 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

236

Poulan 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

278

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

287

Poulan 817600406

SCREW 1/4X20

$6.49

$

Usually ships in 3-10 days

0
