VXS740EKC60400 - Exmark 60" Vertex S-Series Stand-On Mower, Kohler ECV740 (SN: 411294212 - 413950473) (Rev A) (2022) Electrical Assembly Parts Diagram

60" Vertex S-Series Stand-On Mower, Kohler ECV740

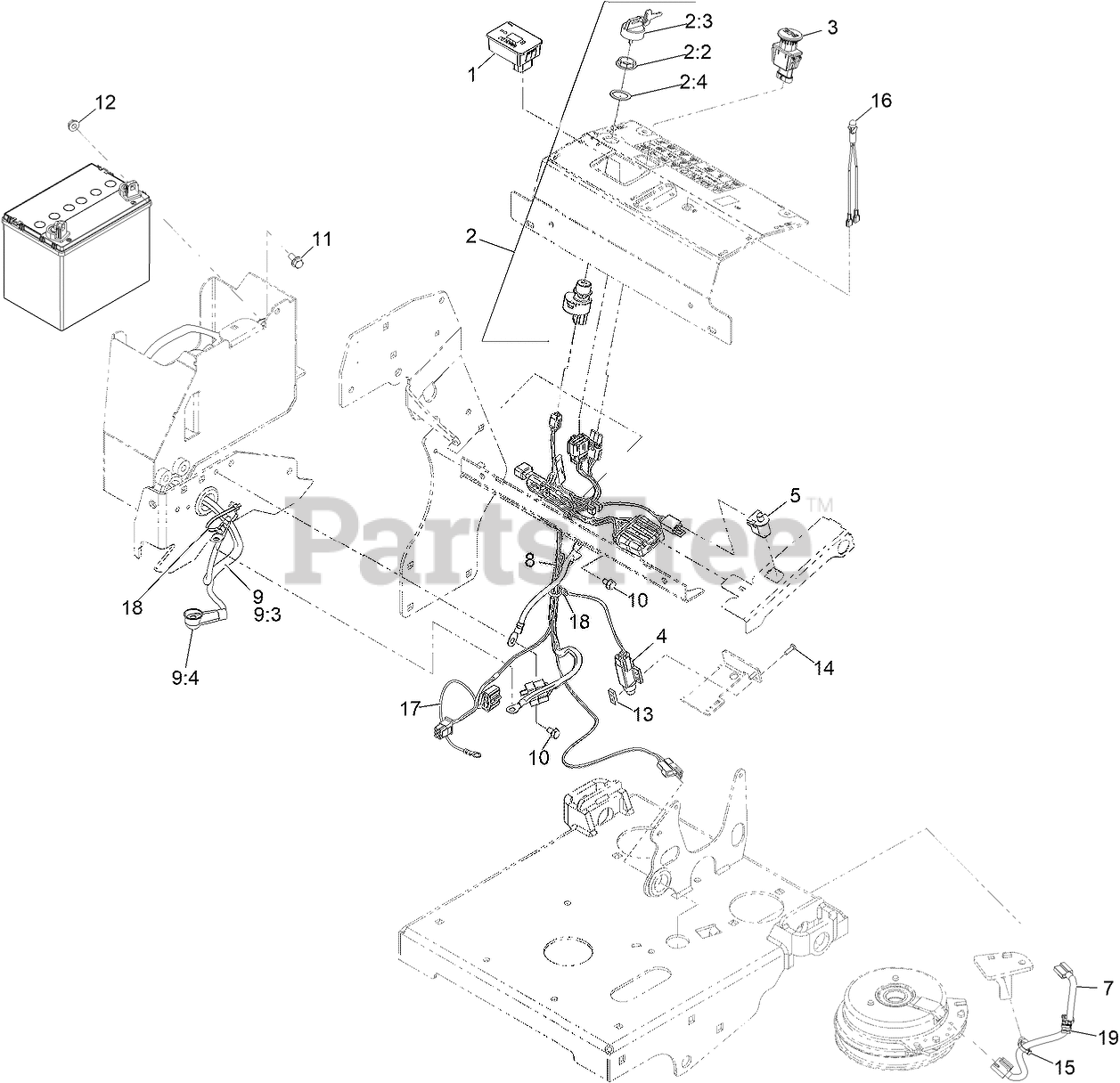

Electrical Assembly Parts Diagram

  • Title

1

Exmark 142-7401

MODULE-HOUR METER

$137.99

$

Usually ships in 3-6 days

0

2

Exmark 126-6285

IGNITION SWITCH ASM

$54.99

$

In Stock, Qty 20+

0

2:2

Exmark 108-8660

NUT-MOUNTING

$35.99

$

In Stock, only 3 left!

0

2:3

Exmark 106-5270

IGNITION KEY SET

$21.99

$

In Stock, Qty 18

0

2:4

Exmark 108-8659

WASHER-BACKUP

$14.99

$

In Stock, only 1 left!

0

3

Exmark 126-6187

SWITCH-PTO, SEALED

$54.99

$

In Stock, Qty 11

0

4

Exmark 99-7407

USE 107-0340
(Superseded to 107-0340)

$55.99

$

Usually ships in 3-6 days

0

5

Exmark 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 10

0

7

Exmark 126-0624

HARNESS-CLUTCH PIGTAIL

$13.99

$

Usually ships in 3-6 days

0

8

Exmark 142-6462

HARNESS-WIRING

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$315.99

$

Usually ships in 3-6 days

0

9

Exmark 142-6765

HARNESS-BATTERY

$65.99

$

Usually ships in 3-6 days

0

9:3

Exmark 32180-008

Insulator-Lug, Red

$5.49

$

Usually ships in 0 days

0

9:4

Exmark AU21001545

Boot-Battery, Red

$

$

Currently unavailable

10

Exmark 32104-82

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

11

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

12

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

14

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

15

Exmark 32180-030

CLIP-TIE

$4.99

$

In Stock, Qty 7

0

16

Exmark 1-643267

INDICATOR-LED, RED

$25.99

$

In Stock, only 1 left!

0

17

Exmark 142-8461

Harness-Indicator Light, EFI

$60.99

$

Usually ships in 3-6 days

0

18

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

19

Exmark 32180-078

Clip-Edge

$5.99

$

Usually ships in 3-6 days

0
