VXS740EKC60400 - Exmark 60" Vertex S-Series Stand-On Mower, Kohler ECV740 (SN: 411294212 - 413950473) (Rev A) (2022) Deck Assembly Parts Diagram

60" Vertex S-Series Stand-On Mower, Kohler ECV740

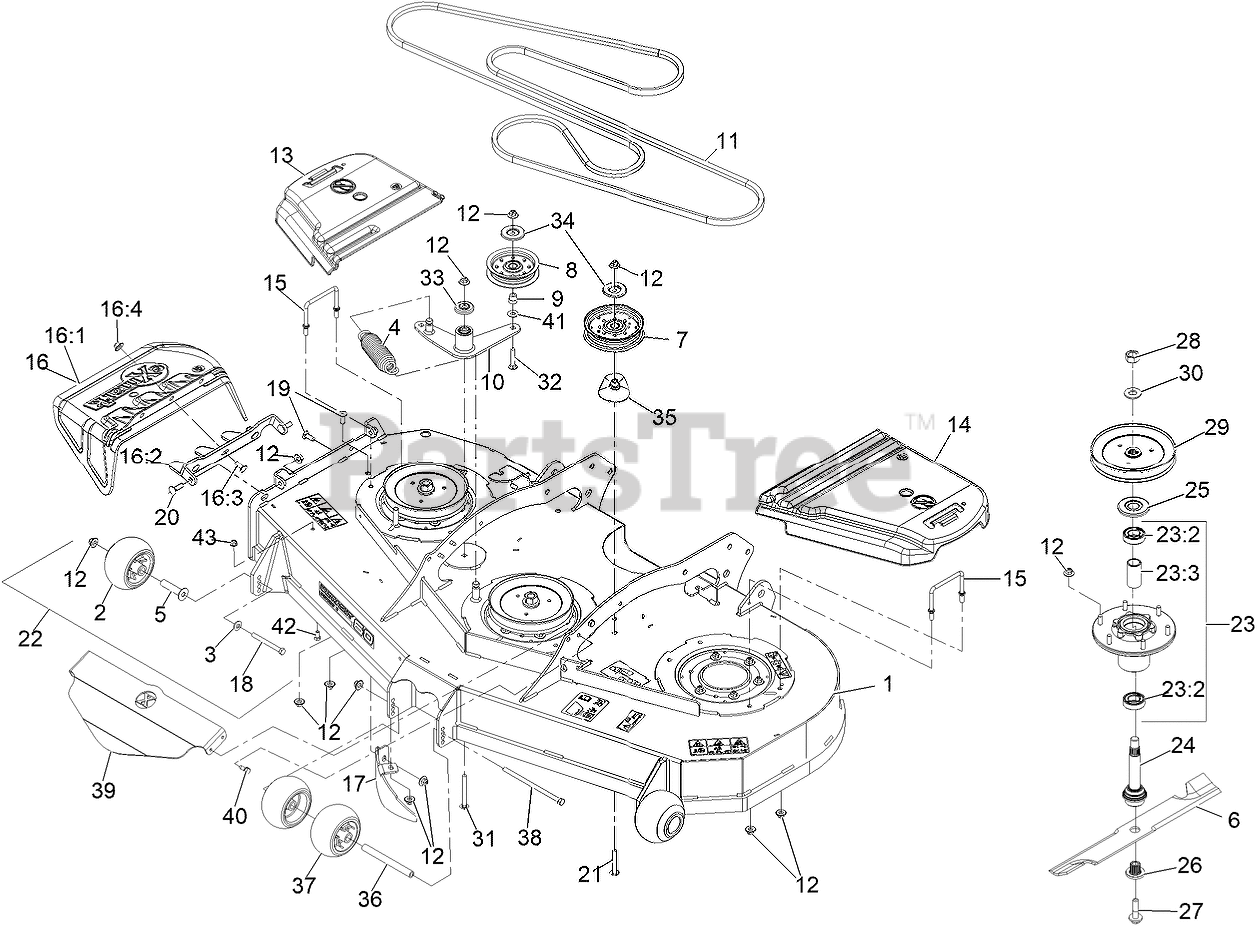

Deck Assembly Parts Diagram

  • Title

1

Exmark 142-5082

ASM-DECK W/DECALS 604

$2476.99

$

Usually ships in 3-6 days

0

2

Exmark 103-8415

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+

0

3

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

4

Exmark 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 7

0

5

Exmark 116-8131

AXLE, ROLLER

$12.99

$

In Stock, Qty 12

0

6

Exmark 116-5174

Blade-Extreme 2, 20.50"

Note: Optional Equipment

$

$

Currently unavailable

6

Exmark 103-6403

USE 103-6403-S
(Superseded to 103-6403-S)

$31.99

$

In Stock, Qty 20+

0

6

Exmark 103-6393

USE 103-6393-S
(Superseded to 103-6393-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details

$30.99

$

In Stock, Qty 20+

0

6

Exmark 103-6388

USE 103-6388-S
(Superseded to 103-6388-S)

Note: Optional Equipment

$37.99

$

In Stock, Qty 20+

0

6

Exmark 103-6383

USE 103-6383-S
(Superseded to 103-6383-S)

Note: Optional Equipment

$34.99

$

In Stock, Qty 20+

0

7

Exmark 126-9187

PULLEY-IDLER, FLAT

$60.99

$

In Stock, Qty 19

0

8

Exmark 116-3626

132-4718
(Superseded to 132-4718)

$33.99

$

In Stock, Qty 16

0

9

Exmark 1-513791

BUSHING,IDLER

$5.49

$

In Stock, only 1 left!

0

10

Exmark 116-3806

IDLER ARM ASM W/BEARINGS

$242.99

$

Usually ships in 3-6 days

0

11

Exmark 114-8154

BELT-V
(Superseded to 114-8154-SL)

$161.99

$

Usually ships in 3-6 days

0

12

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

13

Exmark 116-0094

COVER-BELT, RH

$86.99

$

In Stock, only 4 left!

0

14

Exmark 109-6938

COVER-BELT, LH

$96.99

$

In Stock, only 2 left!

0

15

Exmark 109-6982

WIREFORM-COVER

$11.99

$

In Stock, only 4 left!

0

16

Exmark 109-7188

ASM,DISCHARGE CHUTE

$104.99

$

In Stock, only 2 left!

0

16:1

Exmark 109-2738

CHUTE,DISCHARGE

$74.99

$

In Stock, Qty 20+

0

16:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$51.99

$

In Stock, only 1 left!

0

16:3

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

16:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

17

Exmark 116-5614-01

DOGLEG - LZ60

$60.99

$

Usually ships in 3-6 days

0

18

Exmark 116-9362

SCREW-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 17

0

19

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

20

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

21

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 15

0

22

Exmark 116-9981

KIT, ANTI-SCALP ROLLER

$52.99

$

In Stock, Qty 20+

0

23

Exmark 116-3344

ASM-CUTTER HSG WITH BEARINGS

$158.99

$

In Stock, Qty 20+

0

23:2

Exmark 116-0720

BEARING-BALL

$22.99

$

In Stock, Qty 20+

0

23:3

Exmark 116-3312

SPACER-BEARING

$9.49

$

In Stock, Qty 5

0

24

Exmark 116-3341

ASM-SPINDLE AND SEAL

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) to spindle shaft

$89.99

$

In Stock, Qty 20+

0

25

Exmark 116-1286

GUARD,BEARING TOP .989

$5.49

$

In Stock, Qty 9

0

26

Exmark 103-3037

BUSHING,SPLINED

$22.99

$

In Stock, Qty 20+

0

27

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

Note: Torque to 50-60 ft-lb | Apply lubricant to threads as needed to prevent seizing. Copper based anti-seize preferable. Grease is an acceptable substitute.

$8.49

$

In Stock, Qty 20+

0

28

Exmark 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 9

0

29

Exmark 116-0676

SHEAVE,BLADE DRIVE 7.25

$68.99

$

In Stock, Qty 20+

0

30

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 14

0

31

Exmark 3231-11

SCREW-CARR

$5.49

$

In Stock, only 2 left!

0

32

Exmark 3231-6

SCREW-CARR

$2.99

$

In Stock, Qty 19

0

33

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

34

Exmark 126-8043

SHIELD-DUST

$2.99

$

In Stock, only 3 left!

0

35

Exmark 109-2872

SPACER-PULLEY

$22.99

$

In Stock, only 2 left!

0

36

Exmark 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 8

0

37

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

38

Exmark 108-5388

SCREW-HH

$15.99

$

In Stock, only 2 left!

0

39

Exmark 142-6764-01

Guard-Front Deck

$51.99

$

Usually ships in 3-6 days

0

40

Exmark 32144-11

SCREW-THD ROLL, HWH

$7.99

$

In Stock, Qty 6

0

41

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

42

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

43

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0
