VXS740AKC48400 - Exmark 48" Vertex S-Series Stand-On Mower, Kohler ECV740 (SN: 413950474 & Above) (Rev A) (2023) Park Brake Assembly Parts Diagram

48" Vertex S-Series Stand-On Mower, Kohler ECV740

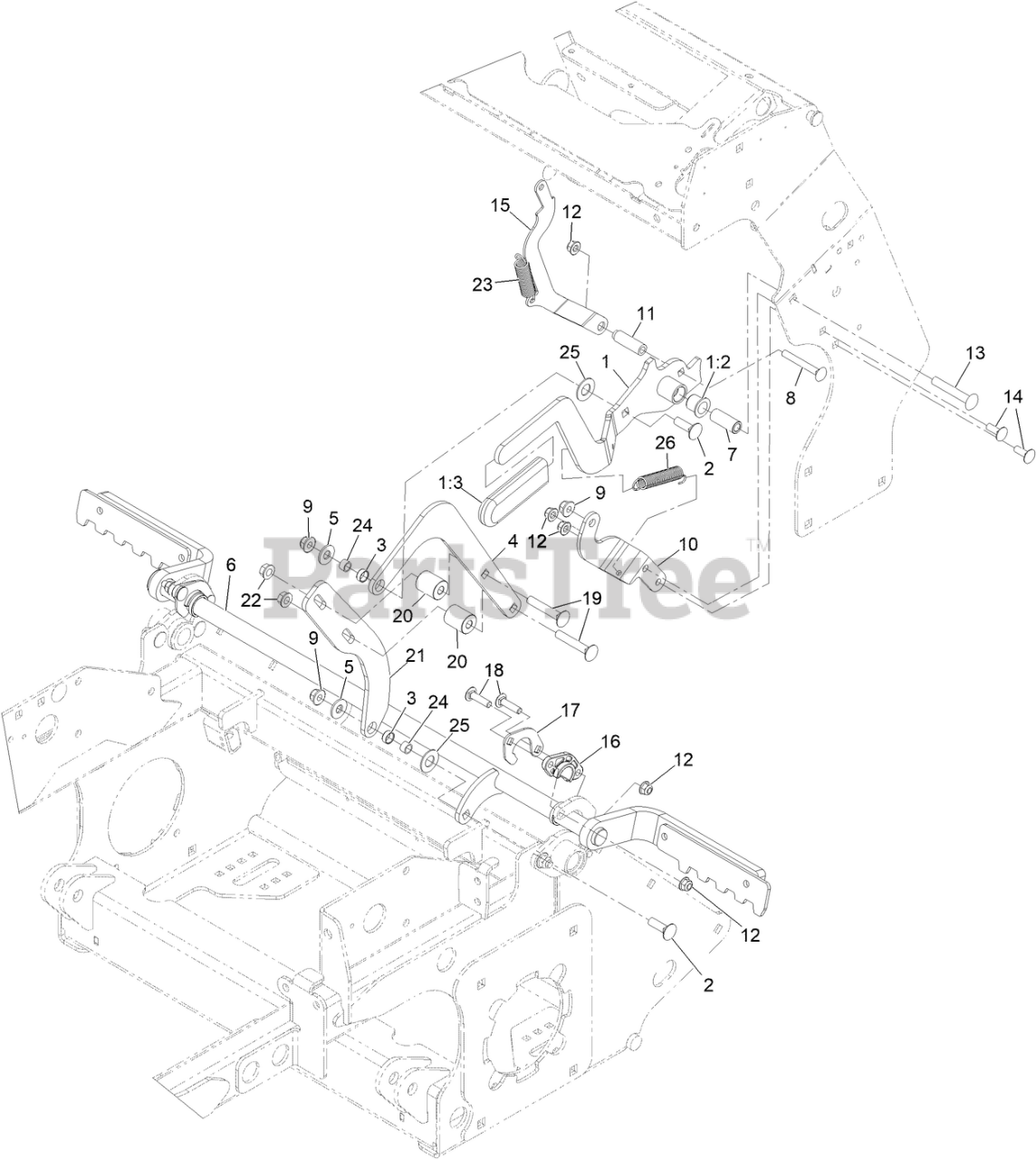

Park Brake Assembly Parts Diagram

  • Title
1

Exmark 146-0208

ASM-HANDLE BRAKE

$145.99

$

Usually ships in 0 days

0

1:2

Exmark 108-2974

BUSHING-FLANGE

$5.99

$

Usually ships in 3-6 days

0

1:3

Exmark 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 4 left!

0

2

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

3

Exmark 133-5109

BEARING-SLEEVE

$2.99

$

Usually ships in 3-6 days

0

4

Exmark 142-7464

LINK-BRAKE UPPER

$23.99

$

Usually ships in 3-6 days

0

5

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

6

Exmark 142-7470-03

ASM-Brake Shaft [black]

$190.99

$

Usually ships in 3-6 days

0

7

Exmark 146-0245

SPACER-PIVOT

$6.99

$

Usually ships in 3-6 days

0

8

Exmark 3230-8

SCREW-CARR

$4.99

$

In Stock, Qty 13

0

9

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Exmark 146-0570-03

BRACKET-BRAKE LEVER SUPT

$15.99

$

Usually ships in 0 days

0

11

Exmark 142-6746

SPACER-.31 X 1.25 YZ

$8.49

$

Usually ships in 3-6 days

0

12

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

13

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 15

0

14

Exmark 3230-10

BOLT-CARR

$3.99

$

Usually ships in 3-6 days

0

15

Exmark 142-7765-03

Link-Brake Control Lock

$17.99

$

Usually ships in 3-6 days

0

16

Exmark 115-5065

BUSHING-FLANGE

$7.99

$

In Stock, Qty 12

0

17

Exmark 135-7867

SUPPORT, BEARING

$5.49

$

Usually ships in 3-6 days

0

18

Exmark 3230-29

SCREW-CARR

$2.99

$

In Stock, Qty 12

0

19

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2 1/4

$6.99

$

In Stock, Qty 14

0

20

Exmark 142-7467

SPACER-.39 IDX1.0 ODX1.2 L

$5.49

$

In Stock, Qty 5

0

21

Exmark 142-9372

LINK - LOWER BRAKE

$23.99

$

Usually ships in 3-6 days

0

22

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

23

Exmark 126-2127

SPRING-EXTENSION

$7.99

$

In Stock, only 2 left!

0

24

Exmark 142-7468

SPACER-BRAKE PIVOT

$2.99

$

Usually ships in 3-6 days

0

25

Exmark 61-1950

WASHER-PLASTIC

$1.49

$

In Stock, Qty 8

0

26

Exmark 109-7124

SPRING-EXTENSION

$7.99

$

Usually ships in 3-6 days

0
