VXS740AKC48400 - Exmark 48" Vertex S-Series Stand-On Mower, Kohler ECV740 (SN: 413950474 & Above) (Rev A) (2023) Caster Wheel and Fork Assembly Parts Diagram

48" Vertex S-Series Stand-On Mower, Kohler ECV740

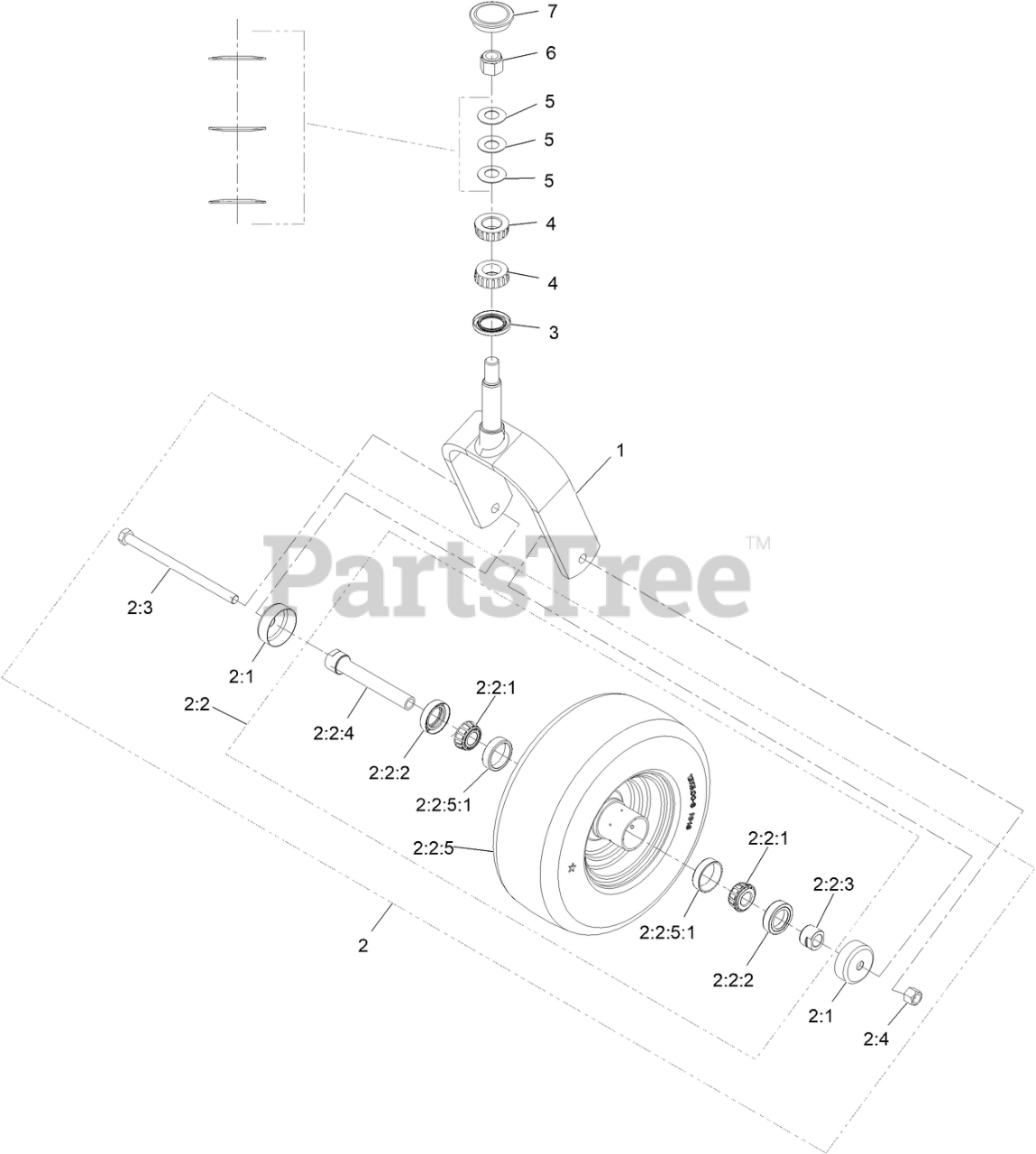

Caster Wheel and Fork Assembly Parts Diagram

  • Title

1

Exmark 142-4770-01

WELD-CASTER, FORK

$129.99

$

Usually ships in 3-6 days

0

2

Exmark 109-9126

WHEEL & TIRE ASM

$320.99

$

In Stock, only 4 left!

0

2:1

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

2:2

WHEEL AND TIRE ASM

Note: Not serviced separately

$

$

Not available

2:2:1

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$21.99

$

In Stock, Qty 20+

0

2:2:2

Exmark 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 20+

0

2:2:3

Exmark 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$9.49

$

In Stock, Qty 20+

0

2:2:4

Exmark 126-5360

AXLE-CASTER

$15.99

$

In Stock, only 2 left!

0

2:2:5

WHEEL AND TIRE ASM

Note: Not serviced separately

$

$

Not available

2:2:5:1

Exmark 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 12

0

2:3

Exmark 325-42

SCREW-HH

$14.99

$

In Stock, Qty 14

0

2:4

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

3

Exmark 116-5647

SEAL-GREASE

$5.49

$

In Stock, Qty 20+

0

4

Exmark 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

0

5

Exmark 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

6

Exmark 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

0

7

Exmark 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0
