VXS730GKA60400 - Exmark 60" Vertex S-Series Stand-On Mower, Kawasaki FX730V (SN: 411294212 - 413950473) (Rev A) (2022) Main Frame Assembly Parts Diagram

60" Vertex S-Series Stand-On Mower, Kawasaki FX730V

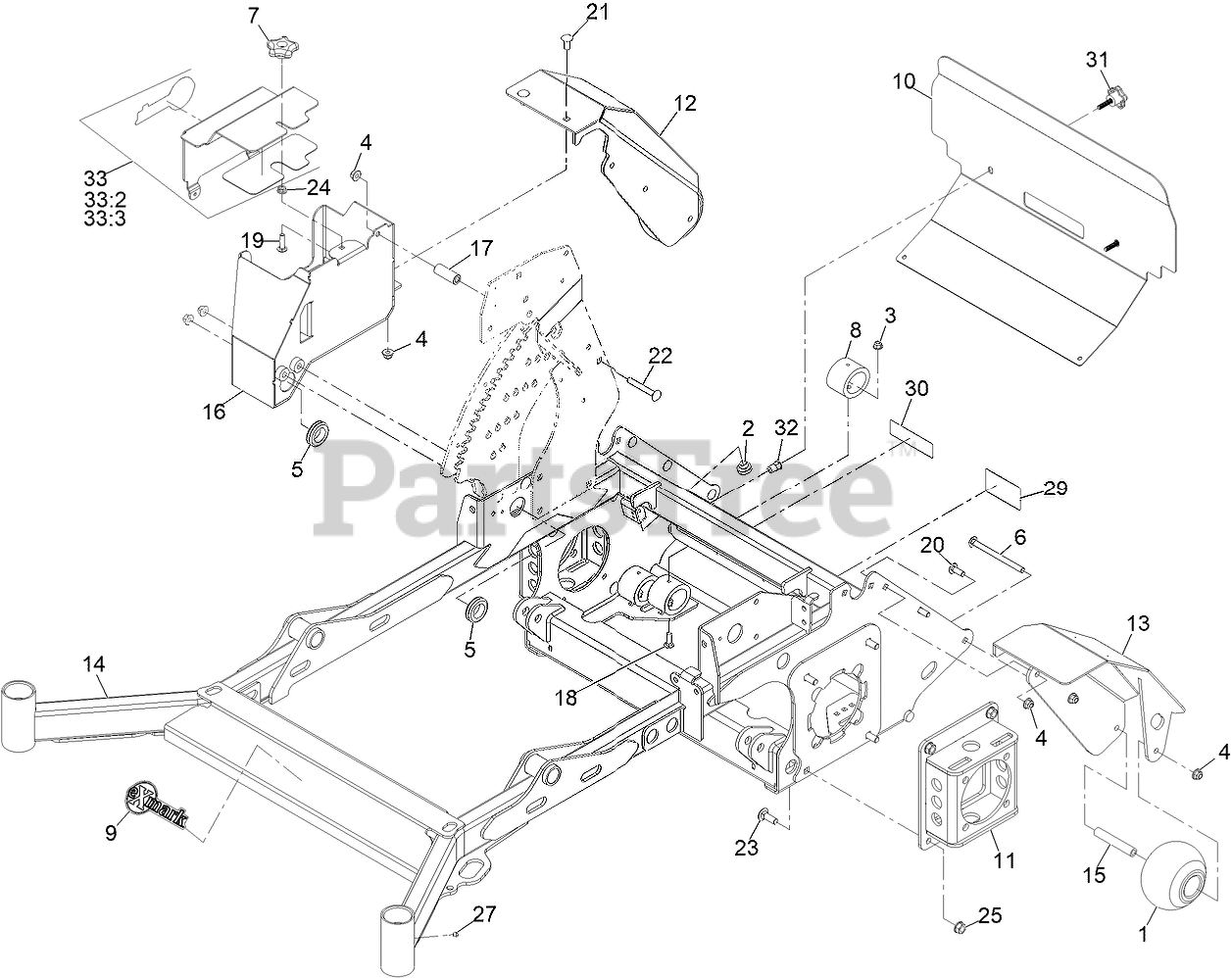

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 103-8415

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+

0

2

Exmark 104-1412

BUMPER-RUBBER

$18.99

$

In Stock, only 3 left!

0

3

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Exmark 108-3723

GROMMET

$8.99

$

Usually ships in 3-6 days

0

6

Exmark 109-6795

BOLT-CARR

$5.49

$

In Stock, only 2 left!

0

7

Exmark 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 13

0

8

Exmark 135-2548

BUMPER-ISOLATOR

$20.99

$

In Stock, only 2 left!

0

9

Exmark 126-6575

DECAL-EXMARK LOGO

$6.49

$

In Stock, only 1 left!

0

10

Exmark 142-8804-03

GUARD-REAR FOOT

$125.99

$

Usually ships in 3-6 days

0

11

Exmark 142-8813-03

WLD-MTR MOUNT 60

$200.99

$

Usually ships in 3-6 days

0

12

Exmark 142-6264-01

FENDER- WHEEL RH

Note: [red]

$205.99

$

Usually ships in 3-6 days

0

13

Exmark 142-6265-01

FENDER- WHEEL LH

Note: [red]

$205.99

$

Usually ships in 3-6 days

0

14

Exmark 142-8842

Mainframe ASM - 60

$2597.99

$

Usually ships in 3-6 days

0

15

Exmark 142-6400

SPACER- ROLLER

$13.99

$

Usually ships in 3-6 days

0

16

Exmark 142-6571-03

WELD-BATTERY BOX

$158.99

$

Usually ships in 3-6 days

0

17

Exmark 142-6675

SPACER- ROLLER

$8.49

$

Usually ships in 3-6 days

0

18

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

19

Exmark 3230-29

SCREW-CARR

$2.99

$

In Stock, Qty 12

0

20

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

21

Exmark 3231-27

SCREW-CARR

$4.49

$

In Stock, Qty 10

0

22

Exmark 3231-9

SCREW-CARR

$2.49

$

In Stock, Qty 7

0

23

Exmark 3232-2

BOLT-CARR

$4.99

$

Usually ships in 3-6 days

0

24

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

25

Exmark 32128-37

NUT-HF

$4.49

$

In Stock, Qty 17

0

27

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

29

Exmark 116-8253

DECAL-DRIVE RELEASE

$2.99

$

Usually ships in 3-6 days

0

30

Exmark 112-9028

DECAL-COVER, MISSING

$22.99

$

Usually ships in 3-6 days

0

31

Exmark 139-2401

KNOB

$3.99

$

In Stock, Qty 20+

0

32

Exmark 137-1218

NUT-CLINCH

$1.99

$

Usually ships in 3-6 days

0

33

Exmark 142-8510

ASM-LID BATTERY W/PAD

$49.99

$

Usually ships in 3-6 days

0

33:2

Exmark 142-9384

PAD-BATTERY BOX LID

$9.99

$

Usually ships in 3-6 days

0

33:3

Exmark 126-6575

DECAL-EXMARK LOGO

$6.49

$

In Stock, only 1 left!

0
