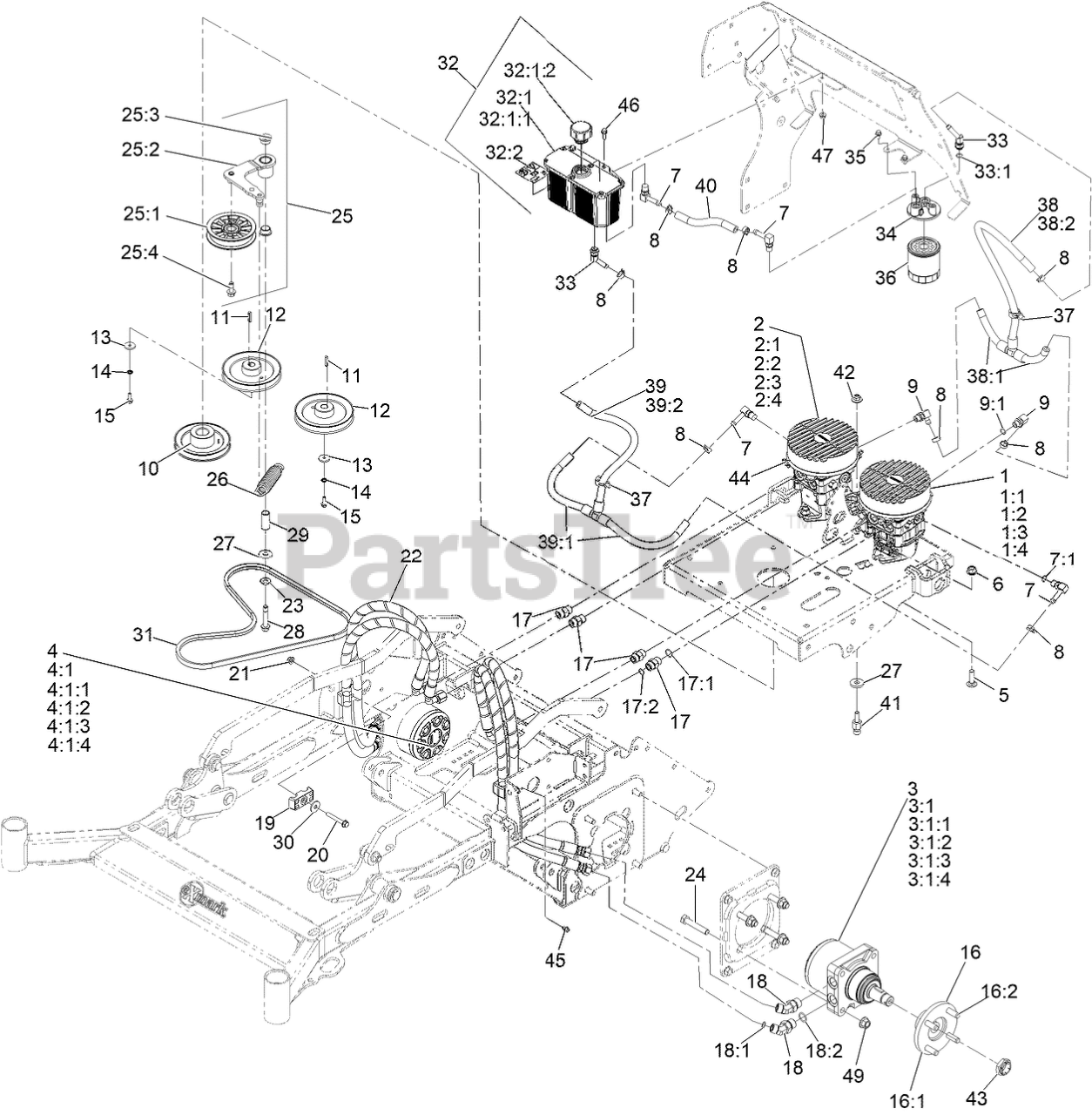

VXS730GKA60400 - Exmark 60" Vertex S-Series Stand-On Mower, Kawasaki FX730V (SN: 411294212 - 413950473) (Rev A) (2022) Hydraulic Assembly Parts Diagram

60" Vertex S-Series Stand-On Mower, Kawasaki FX730V

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 142-8892

PUMP-12CC LT W/SHOCK VALVE

$1111.99

$

Usually ships in 3-6 days

0

1:1

Exmark 126-2479

KIT, 10CC/12CC PUMP KIT

$406.99

$

Usually ships in 3-6 days

0

1:2

Exmark 105-6184

SEAL OVERHAUL KIT

$84.99

$

In Stock, Qty 7

0

1:3

Exmark 103-7489

GUARD-PUMP

$88.99

$

In Stock, only 3 left!

0

1:4

Exmark 103-7488

PUMP-COOLING

$74.99

$

In Stock, only 1 left!

0

2

Exmark 142-8893

PUMP-12CC RT W/SHOCK VALVE

$1111.99

$

Usually ships in 3-6 days

0

2:1

Exmark 126-2479

KIT, 10CC/12CC PUMP KIT

$406.99

$

Usually ships in 3-6 days

0

2:2

Exmark 105-6184

SEAL OVERHAUL KIT

$84.99

$

In Stock, Qty 7

0

2:3

Exmark 103-7489

GUARD-PUMP

$88.99

$

In Stock, only 3 left!

0

2:4

Exmark 103-7488

PUMP-COOLING

$74.99

$

In Stock, only 1 left!

0

3

Exmark 142-8578

MOTOR, TL240 LH

$1117.99

$

Usually ships in 3-6 days

0

3:1

Exmark 130-1788

SEAL KIT

$176.99

$

Usually ships in 3-6 days

0

3:1:1

Seal-Ring, Viton

Note: Not illustrated | Not serviced separately

$

$

Not available

3:1:2

Seal-Commutator

Note: Not illustrated | Not serviced separately

$

$

Not available

3:1:3

Seal-Dirt/Water, Hi Temp

Note: Not illustrated | Not serviced separately

$

$

Not available

3:1:4

Seal-Shaft

Note: Not illustrated | Not serviced separately

$

$

Not available

4

Exmark 142-8577

MOTOR, TL240 RH

$1117.99

$

Usually ships in 3-6 days

0

4:1

Exmark 130-1788

SEAL KIT

$176.99

$

Usually ships in 3-6 days

0

4:1:1

Seal-Ring, Viton

$

$

Not available

4:1:2

Seal-Commutator

$

$

Not available

4:1:3

Seal-Dirt/Water, Hi Temp

$

$

Not available

4:1:4

Seal-Shaft

$

$

Not available

5

Exmark 3232-3

BOLT-CARR

$3.49

$

In Stock, Qty 5

0

6

Exmark 114-8417

NUT-HF, NI

$2.49

$

In Stock, Qty 18

0

7

Exmark 100-4887

FITTING-ELBOW, 90

$29.99

$

In Stock, only 1 left!

0

7:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

8

Exmark 103-1988

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

9

Exmark 126-2927

FITTING-90 DEG

$26.99

$

Usually ships in 3-6 days

0

9:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

10

Exmark 116-1946

SHEAVE-PUMP, DRIVE

$74.99

$

In Stock, only 1 left!

0

11

Exmark 135-7971

KEY, 5MM X 5MM X 29MM

$2.99

$

In Stock, only 2 left!

0

12

Exmark 142-6433

SHEAVE-PUMP

$50.99

$

Usually ships in 3-6 days

0

13

Exmark 142-8011

WASHER-1.00 OD X .25 ID

$1.49

$

In Stock, only 4 left!

0

14

Exmark 1-323235

WASHER-SPRING

$5.49

$

In Stock, Qty 9

0

15

Exmark 142-8012

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

16

Exmark 18-3209

WHEEL HUB / STUD ASM

$184.99

$

Usually ships in 3-6 days

0

16:1

Exmark 10-6870-03

HUB-WHEEL

$159.99

$

Usually ships in 3-6 days

0

16:2

Exmark 10-6830

STUD-TYPE, DRIVE

$5.49

$

In Stock, Qty 5

0

17

Exmark 340-4

FITTING-STRAIGHT

$12.99

$

In Stock, only 3 left!

0

17:1

Exmark 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

17:2

Exmark 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

18

Exmark 340-89

Fitting-HYD, 45 DEG

$43.99

$

Usually ships in 3-6 days

0

18:1

Exmark 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

18:2

Exmark 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

19

Exmark 94-8105

CLAMP-TUBE

$6.99

$

In Stock, only 1 left!

0

20

Exmark 139-4479

CLAMP-TUBE

$1.99

$

Usually ships in 3-6 days

0

21

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

22

Exmark 142-6300

HOSE ASM-HYD HP

$121.99

$

Usually ships in 3-6 days

0

23

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

24

Exmark 325-11

SCREW-HH

$2.99

$

In Stock, Qty 7

0

25

Exmark 142-6821

ASM-PUMP IDLER

$116.99

$

Usually ships in 3-6 days

0

25:1

Exmark 109-4077

PULLEY-IDLER, FLAT

$21.99

$

In Stock, only 1 left!

0

25:2

Exmark 142-6820

ASM-PUMP IDLER ARM

$93.99

$

Usually ships in 3-6 days

0

25:3

Exmark 109-8054

BUSHING-FLANGE

$5.49

$

In Stock, Qty 20+

0

25:4

Exmark 126-1680

SCREW-HFH

$1.99

$

In Stock, Qty 11

0

26

Exmark 135-1272

SPRING, EXTENSION

$17.99

$

In Stock, only 2 left!

0

27

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

28

Exmark 126-2956

SCREW-HHF

$6.49

$

In Stock, only 2 left!

0

29

Exmark 126-2954

PIVOT, IDLER

$6.99

$

In Stock, only 2 left!

0

30

Exmark 52-2861

WASHER

$1.49

$

In Stock, Qty 14

0

31

Exmark 142-8149

BELT- COG A 54

$51.99

$

Usually ships in 3-6 days

0

32

Exmark 126-1248

USE 116-2066
(Superseded to 116-2066)

$191.99

$

Usually ships in 3-6 days

0

32:1

Reservoir-HYD

Note: Not serviced separately

$

$

Not available

32:1:1

Exmark 103-1948

Cap-Reservoir, HYD
(Superseded to 103-7615)

$27.99

$

In Stock, only 2 left!

0

32:1:2

Exmark 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 9

0

32:2

Exmark 115-4212

DECAL-WARNING

$12.99

$

Usually ships in 3-6 days

0

33

Exmark 103-1807

FITTING-BARBED, 45 DEG

$28.99

$

Usually ships in 3-6 days

0

33:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

34

Exmark 103-2888

HEAD-FILTER

$88.99

$

Usually ships in 3-6 days

0

35

Exmark 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

36

Exmark 109-4180

FILTER-25 MICRON, BI-DIRECTIONAL

$47.99

$

In Stock, Qty 16

0

37

Exmark 32180-030

CLIP-TIE

$4.99

$

In Stock, Qty 7

0

38

Exmark 142-7809

ASM-HYDRAULIC LO-PRES

$63.99

$

Usually ships in 3-6 days

0

38:1

Exmark 142-6776

HOSE, LP HYDRO

$20.99

$

Usually ships in 3-6 days

0

38:2

Exmark 142-6775

HOSE, LP HYDRO

$20.99

$

Usually ships in 3-6 days

0

39

Exmark 142-7810

ASM-HYDRAULIC LO-PRES

$63.99

$

Usually ships in 3-6 days

0

39:1

Exmark 142-6773

HOSE, LP HYDRO

$20.99

$

In Stock, only 1 left!

0

39:2

Exmark 142-6772

HOSE, LP HYDRO

$20.99

$

Usually ships in 3-6 days

0

40

Exmark 142-6771

HOSE, LP HYDRO

$8.99

$

Usually ships in 3-6 days

0

41

Exmark 126-0423

PIN-SPRING, ANCHOR

$7.99

$

In Stock, only 1 left!

0

42

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

43

Exmark 116-1399

LOCKNUT

$14.99

$

In Stock, only 1 left!

0

44

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

45

Exmark 137-4795

Screw

$1.49

$

In Stock, Qty 20+

0

46

Exmark 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

47

Exmark 32128-32

NUT-HHF

$2.99

$

In Stock, only 2 left!

0

49

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0
