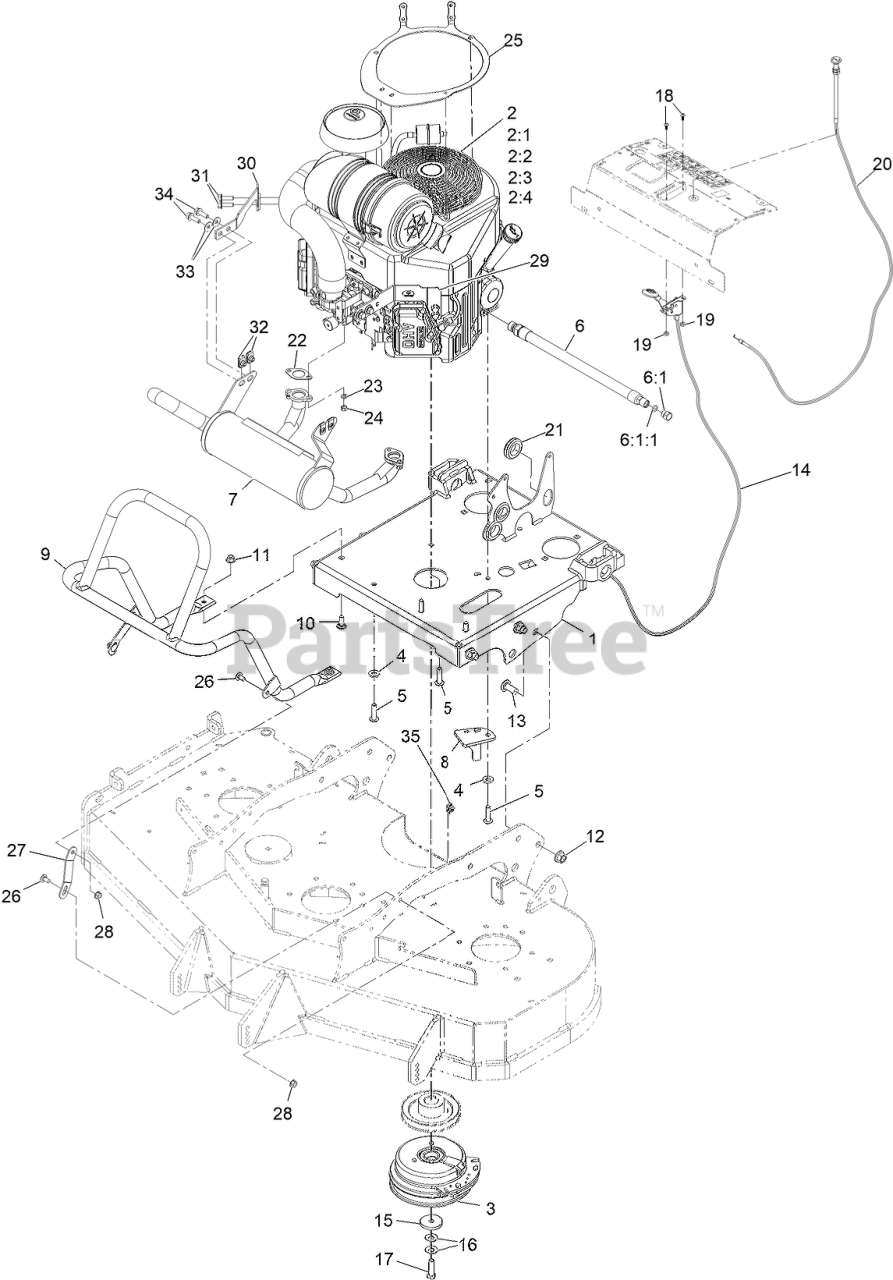

  • Title

1

Exmark 142-8814-01

WLD-ENGINE DECK

$464.99

$

Usually ships in 3-6 days

0

2

Engine-Kawasaki, Fx730V

Note: Not serviced separately |Obtain parts from www.kawpower.com

$

$

Not available

2:1

Kawasaki 49065-7007Engine Oil Filter

Note: Not serviced separately |Obtain parts from www.kawpower.com

$

$

Not available

2:2

Kawasaki 49019-7005 Fuel Filter

Note: Not serviced separately |Obtain parts from www.kawpower.com

$

$

Not available

2:3

Kawasaki 11013-7045 Safety Filter

Note: Not serviced separately |Obtain parts from www.kawpower.com

$

$

Not available

2:4

Kawasaki 11013-7044 Engine Air Filter

Note: Not serviced separately |Obtain parts from www.kawpower.com

$

$

Not available

3

Exmark 116-1604

USE 116-1620
(Superseded to 116-1620)

$359.99

$

In Stock, Qty 9

0

4

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

5

Exmark 126-0983

SCREW-BHTF

$5.49

$

Usually ships in 3-6 days

0

6

Exmark 116-5052

ASM, ENGINE OIL DRAIN HOS

$52.99

$

In Stock, only 1 left!

0

6:1

Exmark 353-508

PLUG-HH

Note: Torque to 20-24 ft-lb

$8.49

$

In Stock, Qty 5

0

6:1:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

7

Exmark 142-6574

MUFFLER-KAWASAKI

$230.99

$

Usually ships in 3-6 days

0

8

Exmark 142-6567

ASM-CLUTCH ANCHOR

$19.99

$

Usually ships in 3-6 days

0

9

Exmark 142-6783-03

Tube-Guard Muffler

$167.99

$

Usually ships in 3-6 days

0

10

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

11

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

13

Exmark 3233-26

SCREW-CARR, SHORT NECK

$2.99

$

Usually ships in 3-6 days

0

14

Exmark 116-4919

CONTROL,THROTTLE

$41.99

$

In Stock, only 1 left!

0

15

Exmark 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 6

0

16

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

17

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

$5.49

$

In Stock, Qty 15

0

18

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

19

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Exmark 135-5707

CABLE-CHOKE

$52.99

$

In Stock, Qty 8

0

21

Exmark 108-3723

GROMMET

$8.99

$

Usually ships in 3-6 days

0

22

Exmark 1-653313

GASKET-EXHAUST

$5.49

$

Usually ships in 3-6 days

0

23

Exmark 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

24

Exmark 114-3549

NUT

$1.99

$

In Stock, Qty 20+

0

25

Exmark 142-8521-03

BRACKET- ENGINE FILTER

$36.99

$

Usually ships in 3-6 days

0

26

Exmark 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

27

Exmark 142-7748-03

Strap, Muffler Guard

$5.99

$

Usually ships in 3-6 days

0

28

Exmark 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

29

Exmark 132-1173

BRACKET-MUFFLER, FRONT

$41.99

$

Usually ships in 3-6 days

0

30

Exmark 132-1174

BRACKET-MUFFLER, REAR

$41.99

$

Usually ships in 3-6 days

0

31

Exmark 33104-025

SCREW-HHF

$7.99

$

In Stock, only 2 left!

0

32

Exmark 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

33

Exmark 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

34

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

35

Exmark 32180-082

Clip-Edge W/Tie, Perpendicular

$6.99

$

Usually ships in 3-6 days

0
