VXS730GKA52400 - Exmark 52" Vertex S-Series Stand-On Mower, Kawasaki FX730V (SN: 411294212 - 413950473) (Rev A) (2022) Fuel Assembly Parts Diagram

52" Vertex S-Series Stand-On Mower, Kawasaki FX730V

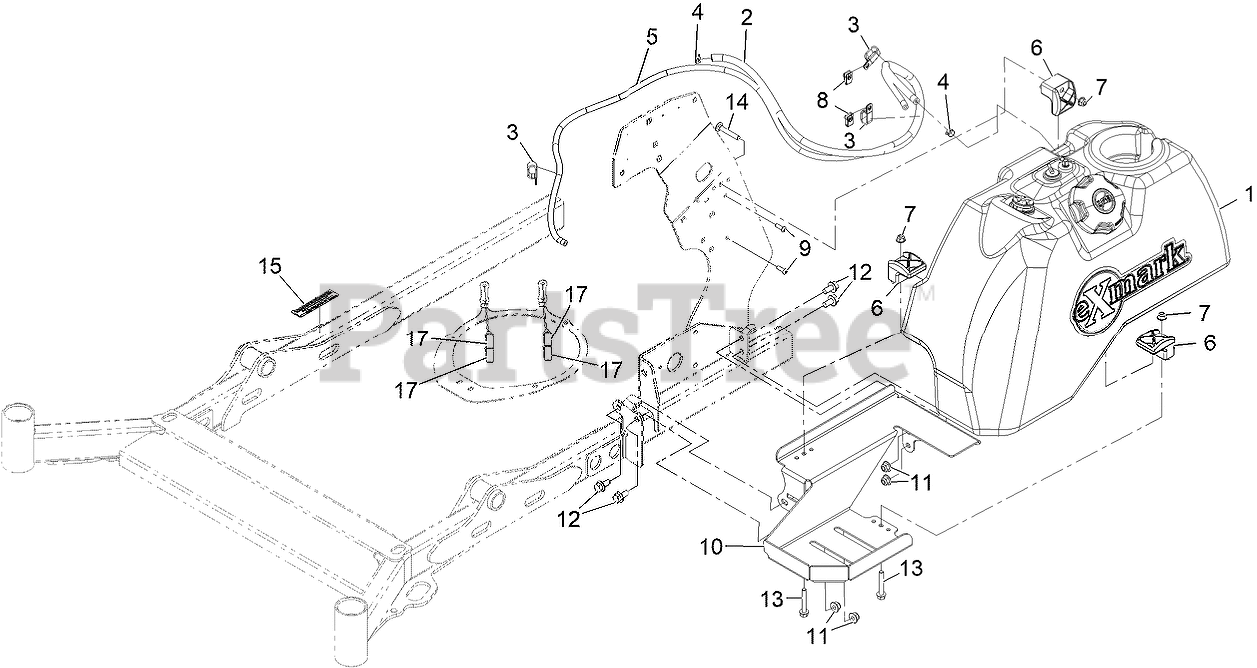

Fuel Assembly Parts Diagram

  • Title

1

Exmark 142-6113

ASM, FUEL TANK 8 GAL

$582.99

$

Usually ships in 3-6 days

0

2

Exmark 109-0286

HOSE-FUEL

$20.99

$

Usually ships in 3-6 days

0

3

Exmark 119-8153

CLAMP-R, DOUBLE TUBE

$2.99

$

Usually ships in 3-6 days

0

4

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

5

Exmark 110-0471

HOSE-FUEL

$29.99

$

Usually ships in 3-6 days

0

6

Exmark 107-4543

CLAMP

$13.99

$

Usually ships in 3-6 days

0

7

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

9

Exmark 3274-69

SCREW-HSBH

$1.49

$

In Stock, Qty 9

0

10

Exmark 142-5959-03

Bracket, Fuel Tank

$85.99

$

Usually ships in 3-6 days

0

11

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 3234-1

Screw-HH Flg 3/8-16 X 3/4

$1.99

$

In Stock, Qty 14

0

13

Exmark 142-6275

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

14

Exmark 3230-6

BOLT-CARR

$1.49

$

In Stock, Qty 11

0

15

Exmark 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

17

Exmark 32180-030

CLIP-TIE

$4.99

$

In Stock, Qty 7

0
