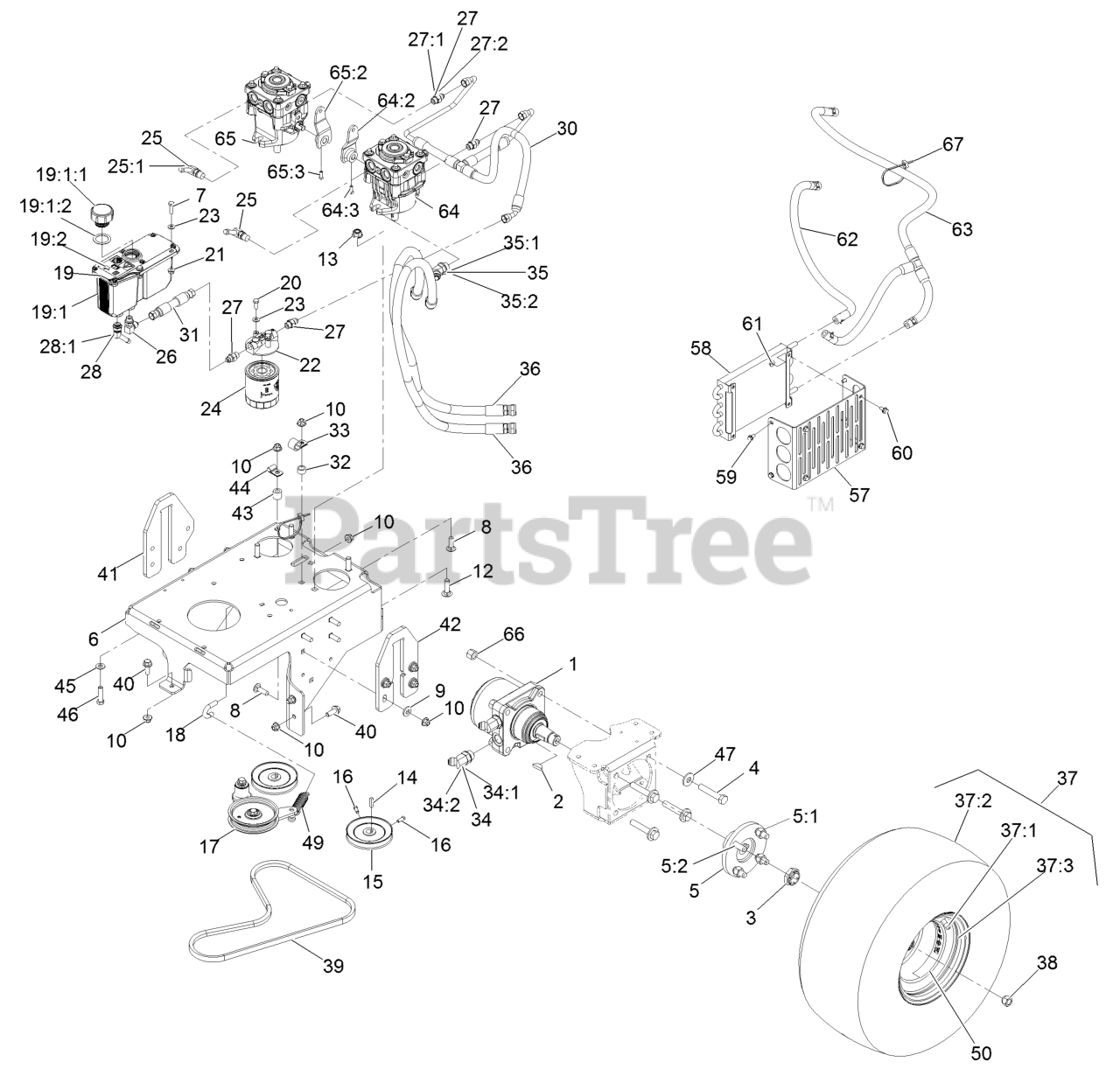

VTX740EKC60400 - Exmark 60" Vantage X-Series Stand-On Mower, Kohler ECV740 (SN: 400000000 - 402082299) (2017) Ground Drive Assembly Parts Diagram

60" Vantage X-Series Stand-On Mower, Kohler ECV740

Ground Drive Assembly Parts Diagram

  • Title

1

Exmark 126-1301

MOTOR-WHEEL

$1334.99

$

Usually ships in 3-6 days

0

2

Exmark 3257-8

KEY-WOODRUFF

$5.49

$

In Stock, Qty 5

0

3

Exmark 116-1399

LOCKNUT

$14.99

$

In Stock, only 1 left!

0

4

Exmark 325-11

SCREW-HH

$3.49

$

In Stock, Qty 7

0

5

Exmark 18-3209

WHEEL HUB / STUD ASM

$184.99

$

Usually ships in 3-6 days

0

5:1

Exmark 10-6870-03

HUB-WHEEL

$159.99

$

Usually ships in 3-6 days

0

5:2

Exmark 10-6830

STUD-TYPE, DRIVE

$5.49

$

In Stock, Qty 5

0

6

Exmark 116-7796-01

WELDMENT, FRAME

$

$

Not available

7

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

9

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

10

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 323-23

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

13

Exmark 114-8417

NUT-HF, NI

$2.49

$

In Stock, Qty 18

0

14

Exmark 1-807272

KEY

$5.99

$

In Stock, Qty 9

0

15

Exmark 105-5648

PULLEY-PUMP

Note: Apply anti-seize compound in bore.

$125.99

$

Usually ships in 3-6 days

0

16

Exmark 3241-5

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$2.49

$

In Stock, only 2 left!

0

17

Exmark 116-9980

PUMP IDLER ASM

$179.99

$

Usually ships in 3-6 days

0

18

Exmark 116-8526

ANCHOR, SPRING

$16.99

$

Usually ships in 3-6 days

0

19

Exmark 116-2066

RESERVOIR ASM

Note: Use Exmark Premium Hydro Oil P/N 109-9828 (32oz)

$191.99

$

Usually ships in 3-6 days

0

19:1

Exmark 103-1948

Cap-Reservoir, HYD
(Superseded to 103-7615)

Note: Not serviced separately

$32.99

$

In Stock, Qty 20+

0

19:1:1

Cap-Reservoir, HYD

$

$

Not available

19:1:2

Exmark 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 20+

0

19:2

Exmark 115-4212

DECAL-WARNING

$12.99

$

Usually ships in 3-6 days

0

20

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Exmark 32128-32

NUT-HHF

$2.99

$

In Stock, Qty 20+

0

22

Exmark 104-7836

HEAD-FILTER

$18.99

$

In Stock, only 3 left!

0

23

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Exmark 109-4180

FILTER-25 MICRON, BI-DIRE

$49.99

$

In Stock, Qty 13

0

25

Exmark 100-4887

FITTING-ELBOW, 90

$29.99

$

In Stock, only 1 left!

0

25:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

26

Exmark 103-1802

FITTING-ELBOW, 90 DEG

$23.99

$

In Stock, only 2 left!

0

27

Exmark 103-2156

FITTING-STRAIGHT

$42.99

$

In Stock, only 3 left!

0

27:1

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

27:2

Exmark 103-1020

O-RING

$1.49

$

Usually ships in 3-6 days

0

28

Exmark 103-1807

FITTING-BARBED, 45 DEG

$28.99

$

Usually ships in 3-6 days

0

28:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

30

Exmark 116-2650

HOSE ASSEMBLY - CHARGE

$154.99

$

Usually ships in 3-6 days

0

31

Exmark 116-2604

HYD HOSE ASM

$22.99

$

Usually ships in 3-6 days

0

32

Exmark 1-653069

SPACER-WHEEL

$12.99

$

Usually ships in 3-6 days

0

33

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

34

Exmark 1-523222

FITTING-HYD, 45 DEG

$63.99

$

Usually ships in 3-6 days

0

34:1

Exmark 1-603919

O-RING

$3.49

$

In Stock, Qty 20+

0

34:2

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

35

Exmark 1-523221

FITTING-HYD, 45 DEG

$49.99

$

Usually ships in 3-6 days

0

35:1

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

35:2

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

36

Exmark 116-6902

HYD HOSE ASM

$110.99

$

In Stock, only 4 left!

0

37

Exmark 120-6465

WHEEL/TIRE ASM

$285.99

$

Usually ships in 3-6 days

0

37:1

Exmark 116-4605

RIM-8 INCH

$108.99

$

Usually ships in 3-6 days

0

37:2

Exmark 120-6466

TIRE

$131.99

$

Usually ships in 3-6 days

0

37:3

Exmark 232-27

Stem-Valve

$

$

Not available

38

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

39

Exmark 114567

BELT-V, LOWER PTO
(Superseded to 114567-SL)

$34.99

$

Usually ships in 3-6 days

0

40

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

41

Exmark 116-4922

PLATE-LIFT, RH

$80.99

$

Usually ships in 3-6 days

0

42

Exmark 116-3546

PLATE, LIFT LH

$82.99

$

Usually ships in 3-6 days

0

43

Exmark 121-1760

SPACER

$2.49

$

In Stock, only 2 left!

0

44

Exmark 116-3362

CLIP-TUBE

$5.49

$

Usually ships in 3-6 days

0

45

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

46

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

47

Exmark 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

49

Exmark 108-4056

SPRING-EXTENSION

$8.49

$

In Stock, Qty 20+

0

50

Exmark 126-2055

DECAL-TORQUE, WHEEL HUB LUG

$6.49

$

In Stock, Qty 11

0

57

Exmark 116-7497-01

BRACKET, COOLER MOUNTING

$88.99

$

Usually ships in 3-6 days

0

58

Exmark 116-7274

135-6112
(Superseded to 135-6112)

$376.99

$

Usually ships in 3-6 days

0

59

Exmark 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

60

Exmark 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

61

Exmark 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

62

Exmark 116-8839

HOSE, HYDRAULIC ASSY

$39.99

$

Usually ships in 3-6 days

0

63

Exmark 116-7613

HOSE ASM-HYD LP 3/8

$55.99

$

Usually ships in 3-6 days

0

64

Exmark 116-8846

PUMP W/ARM - LEFT

$1357.99

$

Usually ships in 3-6 days

0

64:2

Exmark 126-0334

ARM-HYDRO

$45.99

$

Usually ships in 3-6 days

0

64:3

Exmark 3241-5

SCREW-SET

$2.49

$

In Stock, only 2 left!

0

65

Exmark 116-8847

PUMP W/ARM -RIGHT

$1357.99

$

Usually ships in 3-6 days

0

65:2

Exmark 126-0334

ARM-HYDRO

$45.99

$

Usually ships in 3-6 days

0

65:3

Exmark 3241-5

SCREW-SET

$2.49

$

In Stock, only 2 left!

0

66

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

67

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
