VTX740EKC60400 - Exmark 60" Vantage X-Series Stand-On Mower, Kohler ECV740 (SN: 400000000 - 402082299) (2017) Electrical Assembly Parts Diagram

60" Vantage X-Series Stand-On Mower, Kohler ECV740

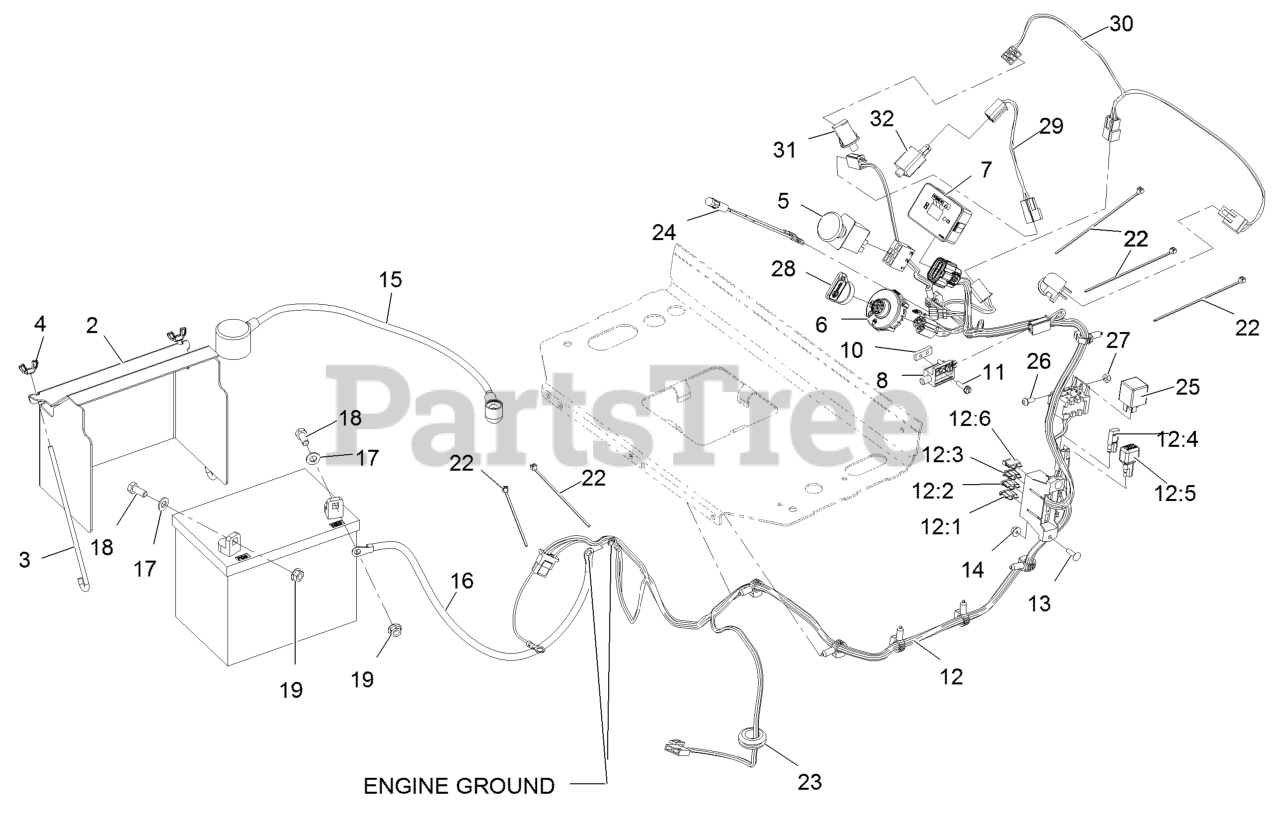

Electrical Assembly Parts Diagram

  • Title

2

Exmark 117-0543-01

COVER-BATTERY

$98.99

$

Usually ships in 3-6 days

0

3

Exmark 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, Qty 20+

0

4

Exmark 1-543792

WINGNUT

$6.49

$

In Stock, Qty 14

0

5

Exmark 114-0279

SWITCH-PTO, ON-ON

$59.99

$

In Stock, Qty 18

0

6

Exmark 117-2222

137-4101
(Superseded to 137-4101)

$34.99

$

In Stock, Qty 19

0

7

Exmark 116-8893

MODULE-HOUR METER

$153.99

$

Usually ships in 3-6 days

0

8

Exmark 1-513152

SWITCH-CLOSED, NORMALLY

$13.99

$

In Stock, Qty 16

0

10

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, Qty 12

0

11

Exmark 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

12

Exmark 121-7509

HARNESS-WIRE, EFI

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$512.99

$

Usually ships in 3-6 days

0

12:1

Exmark 109103

FUSE-BLADE, 30 AMP

$6.99

$

In Stock, Qty 6

0

12:2

Exmark 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 17

0

12:3

Exmark 218-578

FUSE-BLADE, 10 AMP

$2.99

$

In Stock, Qty 6

0

12:4

Exmark 116-0053

CAP-PLUG

Note: Not illustrated

$39.99

$

Usually ships in 3-6 days

0

12:5

Exmark 103-3895

DIODE

$64.99

$

In Stock, only 4 left!

0

12:6

Exmark 109355

FUSE-BLADE, 15 AMP

$3.99

$

Usually ships in 3-6 days

0

13

Exmark 3229-20

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

14

Exmark 3290-148

NUT-HF

$0.99

$

In Stock, Qty 11

0

15

Exmark 115-3864

CABLE-BATTERY, POSITIVE

$30.99

$

In Stock, Qty 7

0

16

Exmark 105-0836

CABLE-BATTERY, BLACK

$20.99

$

Usually ships in 3-6 days

0

17

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

18

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Exmark 109-5715

NUT-HHF, SMOOTH

$1.49

$

Usually ships in 3-6 days

0

22

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

23

Exmark 117-2781

GROMMET

$7.99

$

Usually ships in 3-6 days

0

24

Exmark 1-643267

INDICATOR-LED, RED

$25.99

$

In Stock, only 1 left!

0

25

Exmark 1-643275

RELAY

$23.99

$

In Stock, Qty 20+

0

26

Exmark 3250-12

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

27

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

29

Exmark 116-8845

HARNESS-NEUTRAL

$21.99

$

Usually ships in 3-6 days

0

30

Exmark 116-8844

HARNESS-OPC

$40.99

$

Usually ships in 3-6 days

0

31

Exmark 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

0

32

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0
