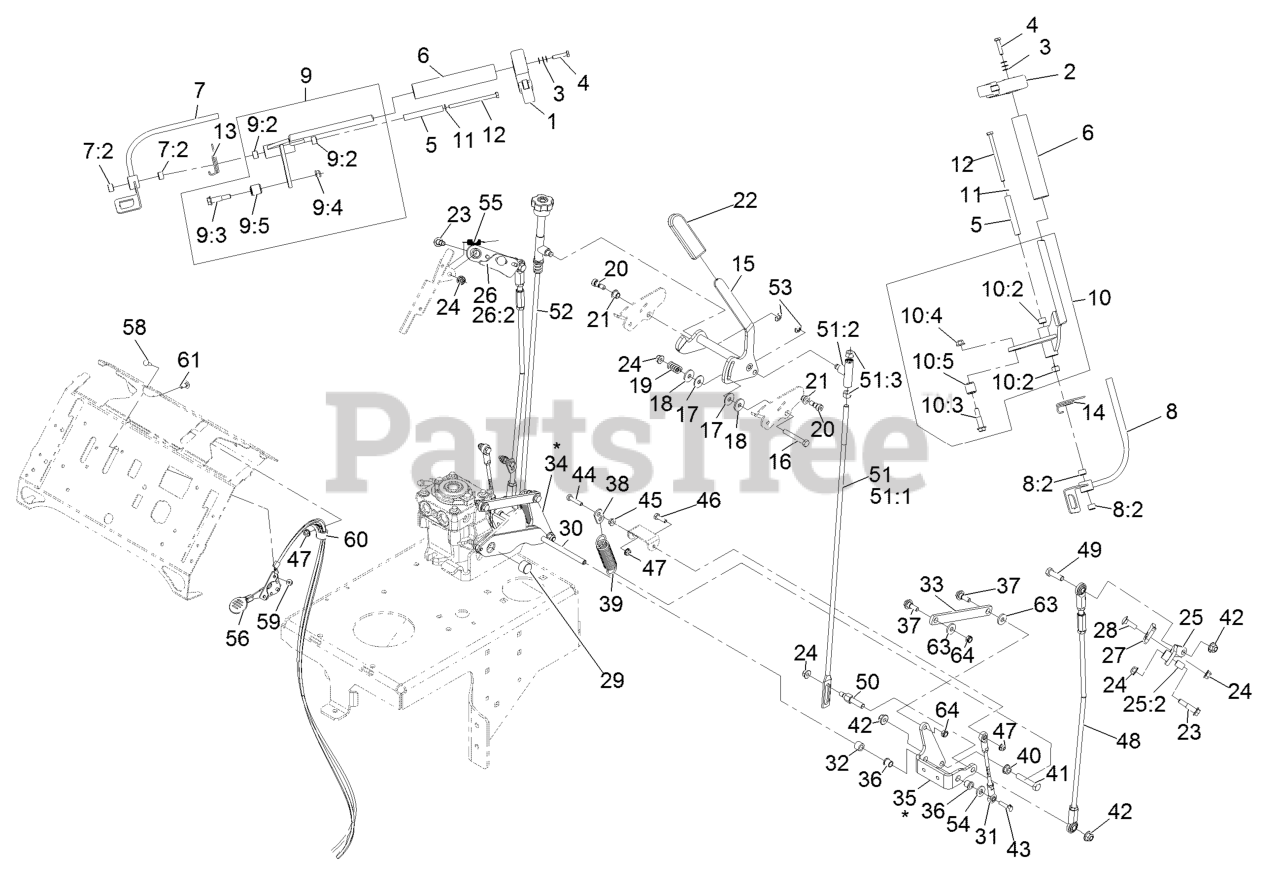

VTX740EKC604 - Exmark 60" Vantage X-Series Stand-On Mower, Kohler ECV740 (SN: 313000000 - 313999999) (2013) Controls Assembly Parts Diagram

60" Vantage X-Series Stand-On Mower, Kohler ECV740

Controls Assembly Parts Diagram

  • Title

1

Exmark 103-1371

ASM,LATCH RH THUMB

$28.99

$

In Stock, Qty 5

0

2

Exmark 103-1372

ASM,LATCH LH THUMB

$28.99

$

In Stock, only 1 left!

0

3

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 14

0

4

Exmark 103-0235

SCREW-HH

$1.49

$

In Stock, Qty 19

0

5

Exmark 116-7725

TUBE

$9.49

$

Usually ships in 3-6 days

0

6

Exmark 103-0815

GRIP-BAR, HANDLE

$10.99

$

In Stock, Qty 10

0

7

Exmark 116-7902

OPC-W/BUSHING, RH

$55.99

$

Usually ships in 3-6 days

0

7:2

Exmark 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 8

0

8

Exmark 116-7903

OPC-W/BUSHING, LH

$55.99

$

Usually ships in 3-6 days

0

8:2

Exmark 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 8

0

9

Exmark 116-7766

ASM, CONTROL-RH

$

$

Not available

9:2

Exmark 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 8

0

9:3

Exmark 116-8607

SCREW-SHOULDER

$5.49

$

In Stock, only 2 left!

0

9:4

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9:5

Exmark 116-8627

ASM, ROLLER

$16.99

$

In Stock, Qty 8

0

10

Exmark 116-7767

ASM, CONTROL

$

$

Not available

10:2

Exmark 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 8

0

10:3

Exmark 116-8607

SCREW-SHOULDER

$5.49

$

In Stock, only 2 left!

0

10:4

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10:5

Exmark 116-8627

ASM, ROLLER

$16.99

$

In Stock, Qty 8

0

11

Exmark 325-33

SCREW-HH

$13.99

$

In Stock, only 4 left!

0

12

Exmark 3212-8

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

13

Exmark 116-7774

SPRING, TORSION

$3.49

$

Usually ships in 3-6 days

0

14

Exmark 116-7768

SPRING, TORSION

$3.49

$

Usually ships in 3-6 days

0

15

Exmark 126-0302

SPEED CONTROL ASM

$109.99

$

Usually ships in 3-6 days

0

16

Exmark 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

17

Exmark 1-323244

WASHER-FRICTION

$7.99

$

Usually ships in 3-6 days

0

18

Exmark 1-603716

WASHER-FRICTION

$5.49

$

In Stock, only 2 left!

0

19

Exmark 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

20

Exmark 1-809056

SCREW-HSH

$7.99

$

In Stock, only 2 left!

0

21

Exmark 116-8615

BUSHING

$2.99

$

Usually ships in 3-6 days

0

22

Exmark 103-5994

GRIP-HANDLE, STEERING

$13.99

$

In Stock, only 3 left!

0

23

Exmark 116-8607

SCREW-SHOULDER

$5.49

$

In Stock, only 2 left!

0

24

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

25

Exmark 116-8821

ARM ASM-LEFT

$44.99

$

Usually ships in 3-6 days

0

25:2

Exmark 116-8610

SLEEVE-BEARING

$5.49

$

In Stock, only 1 left!

0

26

Exmark 116-8824

ARM ASM -RIGHT

$44.99

$

Usually ships in 3-6 days

0

26:2

Exmark 116-8610

SLEEVE-BEARING

$5.49

$

In Stock, only 1 left!

0

27

Exmark 116-9935

RAMP

$34.99

$

Usually ships in 3-6 days

0

28

Exmark 3230-2

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

29

Exmark 116-4203

PIN-BELLCRANK LINK RETAIN

$7.99

$

Usually ships in 3-6 days

0

30

Exmark 116-8563

BELLCRANK LINK ASM

$147.99

$

Usually ships in 3-6 days

0

31

Exmark 116-7738

ASM, LINK

$61.99

$

Usually ships in 3-6 days

0

32

Exmark 52-2480

SPACER-WHEEL

$6.49

$

In Stock, only 3 left!

0

33

Exmark 116-4208

LINK-BELLCRANK, PUMP

$6.49

$

Usually ships in 3-6 days

0

34

Exmark 126-0335

BELLCRANK-LOWER, RT

$46.99

$

Usually ships in 3-6 days

0

35

Exmark 126-0336

BELLCRANK-LOWER, LT

$46.99

$

Usually ships in 3-6 days

0

36

Exmark 103-9928

BEARING

$7.99

$

In Stock, Qty 11

0

37

Exmark 116-2670

SCREW-SHOULDER

$7.99

$

In Stock, Qty 5

0

38

Exmark 116-9940

ANCHOR, SPRING

$

$

Not available

39

Exmark 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, only 3 left!

0

40

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

41

Exmark 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

42

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

43

Exmark 120-4654

SCREW-HHF

$5.99

$

Usually ships in 3-6 days

0

44

Exmark 321-8

SCREW-HH

$3.99

$

In Stock, Qty 10

0

45

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

46

Exmark 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

47

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

48

Exmark 116-7756

ASM, ROD

$67.99

$

Usually ships in 3-6 days

0

49

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

50

Exmark 116-9167

STUD-CONTROL, SPEED

$11.99

$

Usually ships in 3-6 days

0

51

Exmark 116-8679

ASM, ROD LEFT

$51.99

$

Usually ships in 3-6 days

0

51:1

Exmark 116-9938

ROD, LEFT

$26.99

$

Usually ships in 3-6 days

0

51:2

Exmark 116-8683

SWIVEL

$27.99

$

Usually ships in 3-6 days

0

51:3

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

52

Exmark 116-8681

ASM, ROD RIGHT

$

$

Not available

53

Exmark 32151-47

RING-RETAINING

$2.99

$

In Stock, only 3 left!

0

54

Exmark 66-2920

WASHER-FRICTION

$3.49

$

Usually ships in 3-6 days

0

55

Exmark 114-0249

SPRING-EXTENSION

$13.99

$

Usually ships in 3-6 days

0

56

Exmark 116-4276

CONTROL-THROTTLE

$49.99

$

In Stock, only 1 left!

0

58

Exmark 1-807533

BOLT-CARR

$1.49

$

In Stock, Qty 6

0

59

Exmark 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 16

0

60

Exmark 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

61

Exmark 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

63

Exmark 4-2390

WASHER-FLAT

$4.49

$

Usually ships in 3-6 days

0

64

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7
