VTX730EKC52400 - Exmark 52" Vantage X-Series Stand-On Mower, Kohler ECV730 (SN: 315000000 - 315999999) (2015) Park Brake Assembly Parts Diagram

52" Vantage X-Series Stand-On Mower, Kohler ECV730

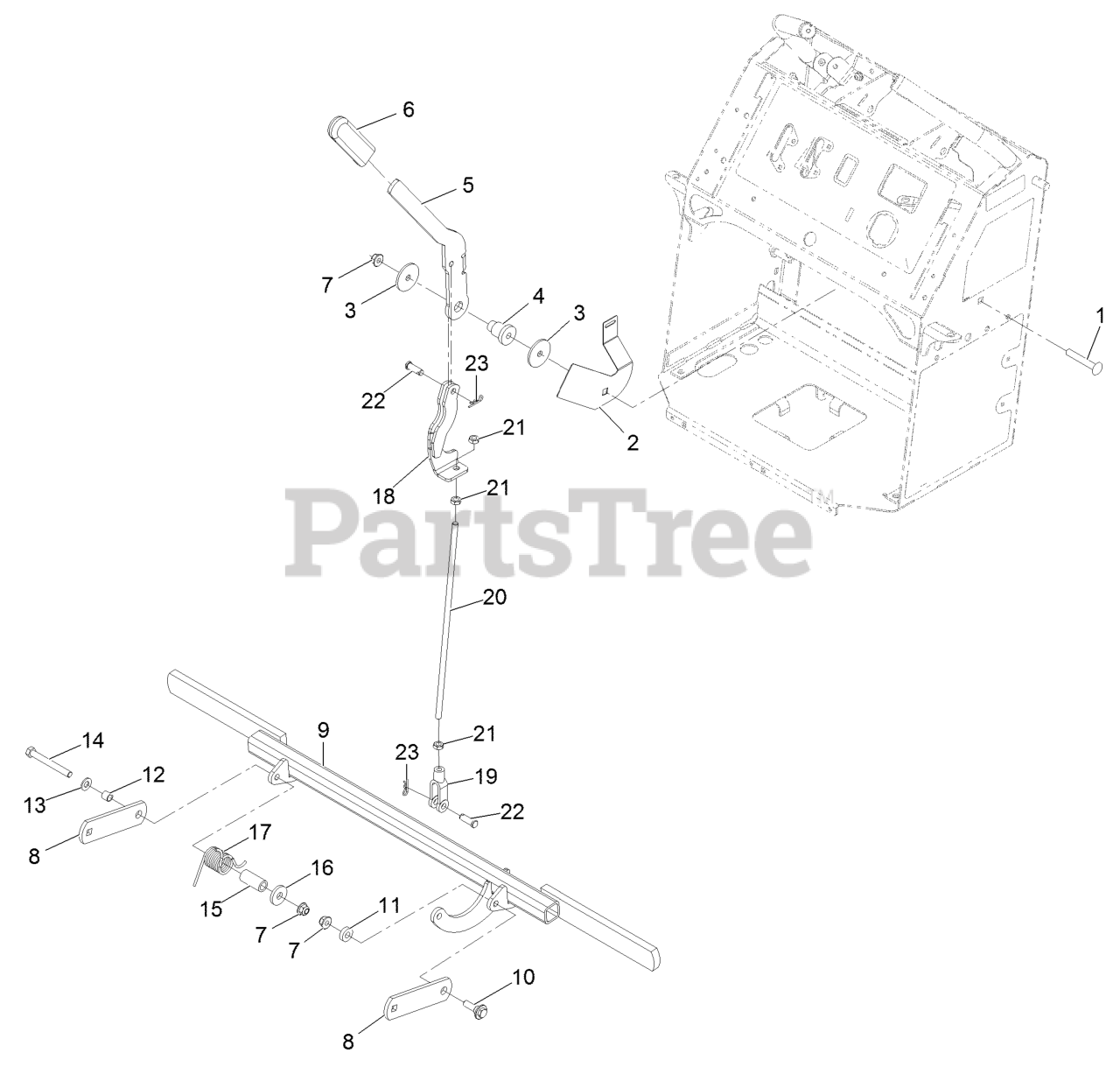

Park Brake Assembly Parts Diagram

  • Title

1

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, only 4 left!

0

2

Exmark 117-0452-03

PLATE-SWITCH, BRAKE

$27.99

$

Usually ships in 3-6 days

0

3

Exmark 63-7400

WASHER-REBOUND

$2.99

$

In Stock, Qty 5

0

4

Exmark 106-3214

MOUNT-PULLEY

$12.99

$

In Stock, only 4 left!

0

5

Exmark 117-5759-03

LEVER-BRAKE

$41.99

$

Usually ships in 3-6 days

0

6

Exmark 1-633268

GRIP-LEVER

$14.99

$

In Stock, Qty 5

0

7

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Exmark 114-5186-01

SUPPORT-BRAKE

$20.99

$

Usually ships in 3-6 days

0

9

Exmark 119-8730-03

BAR-BRAKE

$226.99

$

Usually ships in 3-6 days

0

10

Exmark 614672

SCREW-SHOULDER, HWH

$2.99

$

In Stock, Qty 6

0

11

Exmark 5-0652

SPACER

$7.49

$

In Stock, Qty 5

0

12

Exmark 117-9684

SPACER

$6.49

$

Usually ships in 3-6 days

0

13

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Exmark 323-20

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

15

Exmark 117-9683

SPACER

$7.99

$

Usually ships in 3-6 days

0

16

Exmark 117-9682

SPRING-TORSION

$6.49

$

In Stock, only 1 left!

0

17

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

18

Exmark 119-8780-03

ARM-BRAKE

$59.99

$

Usually ships in 3-6 days

0

19

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 8

0

19

Exmark 119-7244

ROD-BRAKE

$27.99

$

Usually ships in 3-6 days

0

21

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

22

Exmark 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

23

Exmark 3290-307

1-806003
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0
