VTX730EKC52400 - Exmark 52" Vantage X-Series Stand-On Mower, Kohler ECV730 (SN: 315000000 - 315999999) (2015) Deck Lift Assembly Parts Diagram

52" Vantage X-Series Stand-On Mower, Kohler ECV730

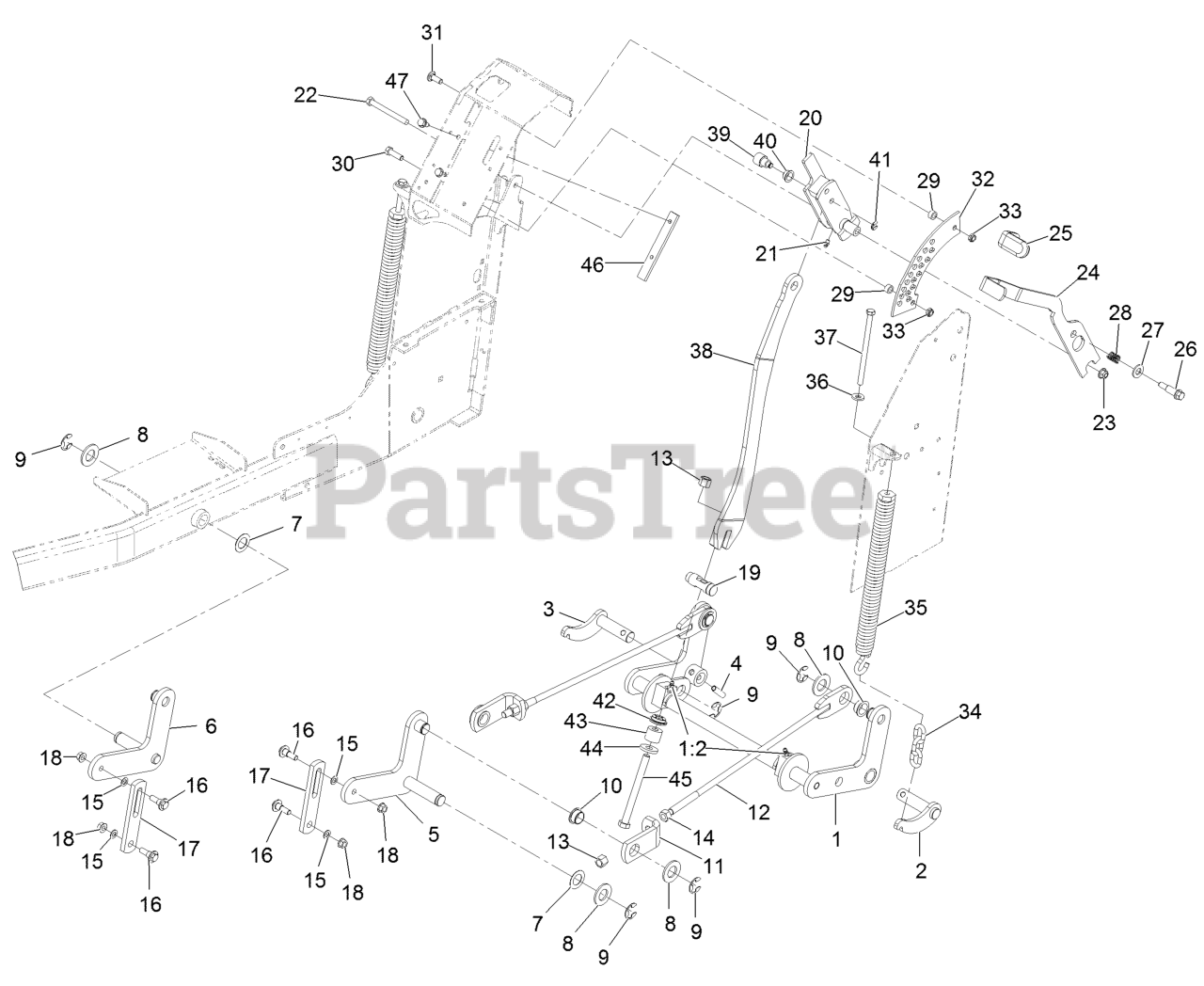

Deck Lift Assembly Parts Diagram

  • Title

1

Exmark 116-3103

REAR CROSSSHAFT ASM

$572.99

$

Usually ships in 3-6 days

0

1:2

Exmark 302-11

FITTING-LUBE, 45 DEG

$1.99

$

In Stock, only 2 left!

0

2

Exmark 116-3104-01

SHAFT-PIVOT, LH

$52.99

$

Usually ships in 3-6 days

0

3

Exmark 116-3105-01

SHAFT-PIVOT, RH

$52.99

$

Usually ships in 3-6 days

0

4

Exmark 116-3107

PIN-SPIRAL

$7.99

$

In Stock, only 2 left!

0

5

Exmark 121-5993-01

ARM-LIFT, LH

$64.99

$

Usually ships in 3-6 days

0

6

Exmark 121-5994-01

ARM-LIFT, RH

$64.99

$

Usually ships in 3-6 days

0

7

Exmark 110-6767

WASHER-THRUST

$1.99

$

In Stock, Qty 8

0

8

Exmark 3256-29

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

9

Exmark 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 7

0

10

Exmark 116-2909

BEARING-FLANGE

$7.99

$

In Stock, only 1 left!

0

11

Exmark 116-2901

BRACKET-LIFT ROD

$27.99

$

Usually ships in 3-6 days

0

12

Exmark 116-8676

LIFT ROD ASM

$49.99

$

Usually ships in 3-6 days

0

13

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

14

Exmark 3217-9

NUT-HH

$0.99

$

In Stock, Qty 19

0

15

Exmark 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

16

Exmark 109-9840

SCREW-SHOULDER, HHF

$5.49

$

In Stock, Qty 11

0

17

Exmark 117-0519

LINK-LIFT

$37.99

$

Usually ships in 3-6 days

0

18

Exmark 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

19

Exmark 114-5274

PIN-HOC

$26.99

$

In Stock, only 1 left!

0

20

Exmark 114-3512

HOC HANDLE ASM

$240.99

$

Usually ships in 3-6 days

0

21

Exmark 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

22

Exmark 323-42

SCREW-HH

$8.49

$

Usually ships in 3-6 days

0

23

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

24

Exmark 114-1878-03

LEVER-HOC

$121.99

$

In Stock, only 2 left!

0

25

Exmark 1-633268

GRIP-LEVER

$14.99

$

In Stock, Qty 5

0

26

Exmark 66-0561

SCREW-SHOULDER

$5.99

$

In Stock, only 2 left!

0

27

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Exmark 65-9940

SPRING

$4.99

$

In Stock, only 1 left!

0

29

Exmark 111044

SPACER

$1.49

$

In Stock, Qty 20+

0

30

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

31

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

32

Exmark 114-5307

BRACKET-HOC

$41.99

$

Usually ships in 3-6 days

0

33

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

34

Exmark 103-9859

CHAIN-DECKLIFT

$6.99

$

Usually ships in 3-6 days

0

35

Exmark 116-0886

SPRING-EXTENSION

$136.99

$

Usually ships in 3-6 days

0

36

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

37

Exmark 323-58

BOLT-TAP, HH

$5.49

$

Usually ships in 3-6 days

0

38

Exmark 116-2939

BAR-LIFT

$107.99

$

Usually ships in 3-6 days

0

39

Exmark 116-3048

HUB-PIVOT

$39.99

$

In Stock, only 1 left!

0

40

Exmark 116-3047

BEARING-FLANGE

$5.49

$

Usually ships in 3-6 days

0

41

Exmark 32151-47

RING-RETAINING

$2.99

$

In Stock, only 3 left!

0

42

Exmark 116-3625

SEAT-SPRING

$6.99

$

In Stock, only 1 left!

0

43

Exmark 116-3241

SPRING-URETHANE

$33.99

$

In Stock, only 1 left!

0

44

Exmark 92-2651

WASHER

$4.99

$

In Stock, only 2 left!

0

45

Exmark 325-22

SCREW-HH

$8.49

$

In Stock, only 1 left!

0

46

Exmark 116-3124

SKID-HANDLE, LIFT

$23.99

$

Usually ships in 3-6 days

0

47

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0
