VTX730EKC524 - Exmark 52" Vantage X-Series Stand-On Mower, Kohler ECV730 EFI (SN: 314000000 - 314999999) (2014) Fuel Assembly Parts Diagram

52" Vantage X-Series Stand-On Mower, Kohler ECV730 EFI

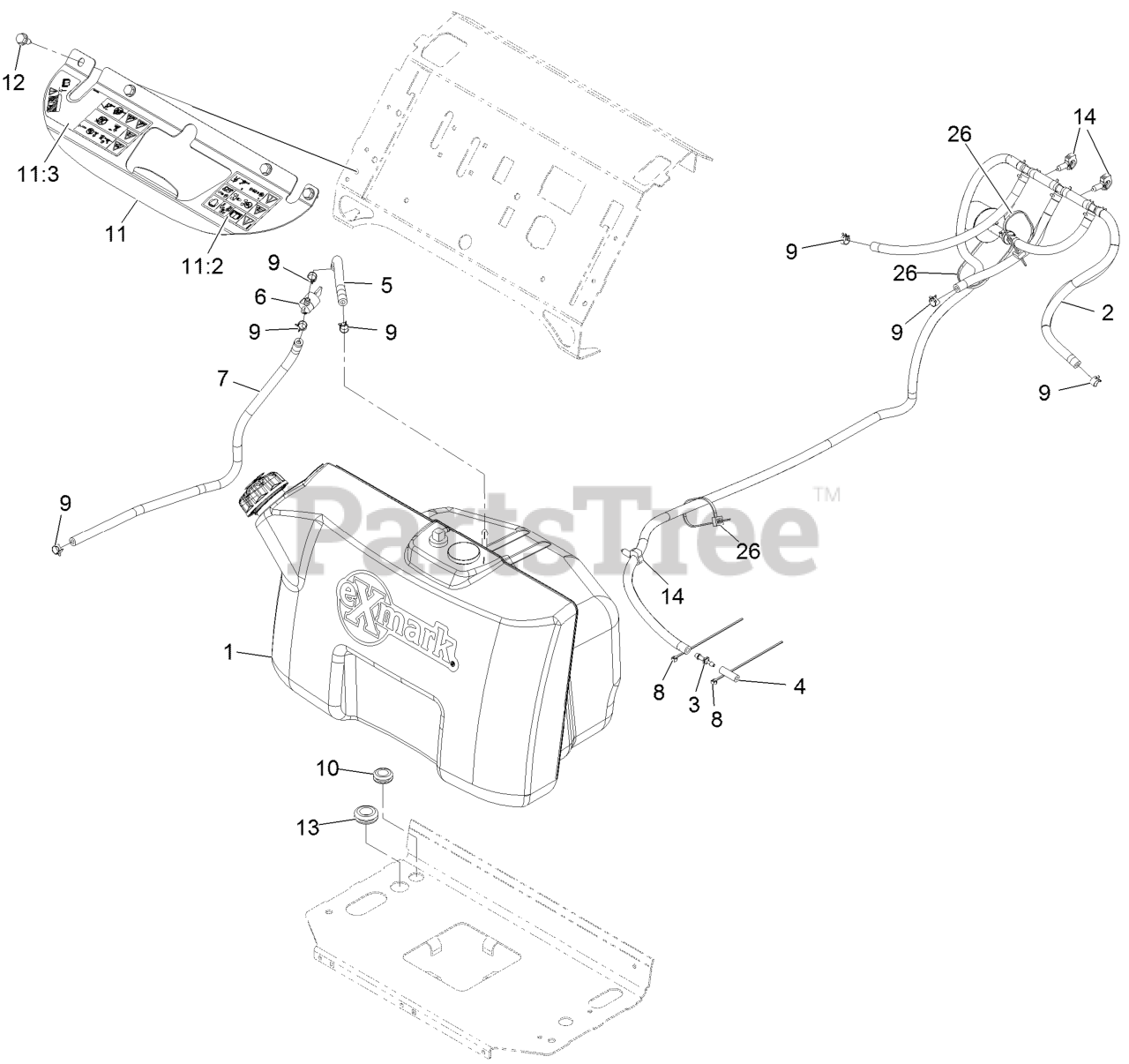

Fuel Assembly Parts Diagram

  • Title

1

Exmark 116-4577

135-0647
(Superseded to 135-0647)

$751.99

$

In Stock, only 1 left!

0

2

Exmark 116-5096

VENT ASM

$148.99

$

Usually ships in 3-6 days

0

3

Exmark 116-5072

FITTING-STRAIGHT

$1.49

$

Usually ships in 3-6 days

0

4

Exmark 115-3392

HOSE-FUEL

$2.49

$

Usually ships in 3-6 days

0

5

Exmark 107-9297

HOSE-FUEL

$7.99

$

In Stock, only 2 left!

0

6

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

7

Exmark 109-0301

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

8

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

9

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

10

Exmark 112-7069

GROMMET

$3.49

$

Usually ships in 3-6 days

0

11

Exmark 116-9193

BRACKET-TANK

$46.99

$

Usually ships in 3-6 days

0

11:2

Exmark 116-9143

DECAL-WARNING LH

$8.99

$

Usually ships in 3-6 days

0

11:3

Exmark 116-9144

DECAL-WARNING RH

$11.99

$

Usually ships in 3-6 days

0

12

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

13

Exmark 117-2781

GROMMET

$7.99

$

Usually ships in 3-6 days

0

14

Exmark 32180-040

CLIP-HARNESS

$2.99

$

Usually ships in 3-6 days

0

26

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
