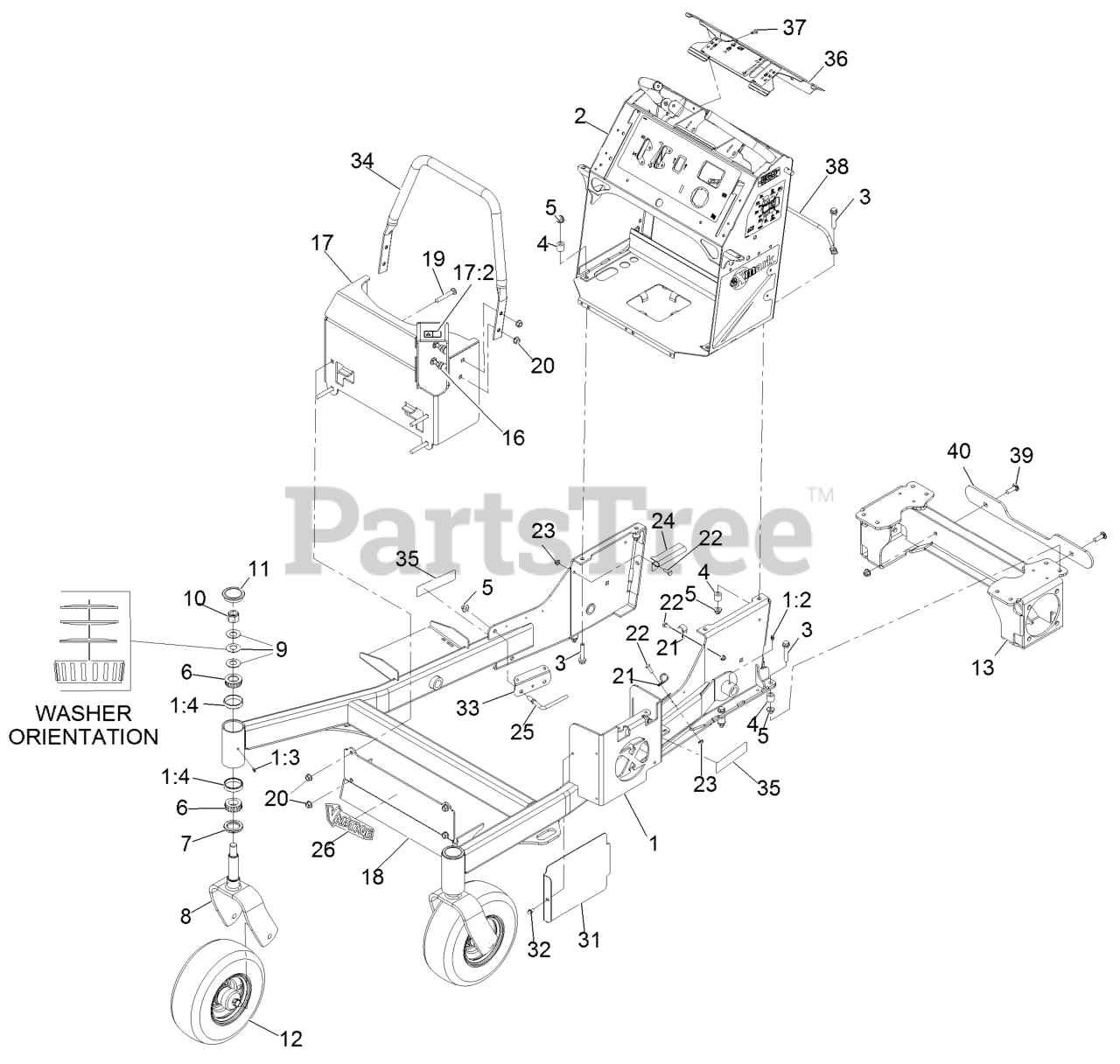

VTX691KA524 - Exmark 52" Vantage X-Series Stand-On Mower, Kawasaki FX691V (SN: 314000000 - 314999999) (2014) Main Frame Assembly Parts Diagram

52" Vantage X-Series Stand-On Mower, Kawasaki FX691V

Main Frame Assembly Parts Diagram

  • Title
1

Exmark 116-7045

FRONT FRAME ASM

$1718.99

$

Usually ships in 3-6 days

0

1:2

Exmark 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

1:3

$5.49

$

In Stock, Qty 11

0

1:4

Exmark 1-543508

CUP-BEARING

$7.99

$

In Stock, Qty 15

0

2

Exmark 116-8854

TOWER ASSEMBLY

$

$

Not available

3

Exmark 108-3742

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

4

$2.99

$

In Stock, only 2 left!

0

5

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Exmark 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

0

7

Exmark 116-5647

SEAL-GREASE

$5.49

$

In Stock, Qty 20+

0

8

Exmark 121-7988-01

FORK-CASTER

$201.99

$

In Stock, Qty 20+

0

9

Exmark 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

10

Exmark 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 10

0

11

Exmark 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0

12

Exmark 112-3810

WHEEL/TIRE AND BEARING AS

$215.99

$

In Stock, only 2 left!

0

13

Exmark 116-9560-03

MOTOR FRAME WELDMENT

$264.99

$

Usually ships in 3-6 days

0

16

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

17

Exmark 116-6373

126-5015
(Superseded to 126-5015)

$212.99

$

Usually ships in 3-6 days

0

17:2

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

18

Exmark 116-3113-01

PANEL-GUARD

$111.99

$

Usually ships in 3-6 days

0

19

Exmark 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 20+

0

20

$0.99

$

In Stock, Qty 20+

0

21

Exmark 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

22

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

$1.49

$

In Stock, Qty 20+

0

24

Exmark 116-5067

BRACKET-HOSE, FUEL (DOUBL

$22.99

$

Usually ships in 3-6 days

0

25

Exmark 116-3382

GUIDE-HOSE, SUPPORT

$21.99

$

Usually ships in 3-6 days

0

26

Exmark 116-3137

DECAL-VANTAGE LOGO

$11.99

$

In Stock, only 3 left!

0

31

Exmark 116-6981-01

SHIELD-HEAT, TALL

$33.99

$

Usually ships in 3-6 days

0

32

Exmark 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

33

Exmark 116-6997-01

GUARD-HOSE

$12.99

$

Usually ships in 3-6 days

0

34

Exmark 116-8152-03

TUBE-GUARD

$43.99

$

Usually ships in 3-6 days

0

35

Exmark 116-3883

DECAL-X-SERIES

$7.49

$

In Stock, only 1 left!

0

36

Exmark 116-8859

CONTROL PANEL W/DECALS

$52.99

$

Usually ships in 3-6 days

0

37

$1.49

$

In Stock, only 4 left!

0

38

Exmark 116-7688

ROD, GUARD

$21.99

$

Usually ships in 3-6 days

0

39

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

40

Exmark 126-1364-03

PLATE, BUMPER SPACER

$28.99

$

Usually ships in 3-6 days
