VTX691KA524 - Exmark 52" Vantage X-Series Stand-On Mower, Kawasaki FX691V (SN: 313000000 - 313999999) (2013) Pump Idler Assembly No. 117-7685 Parts Diagram

52" Vantage X-Series Stand-On Mower, Kawasaki FX691V

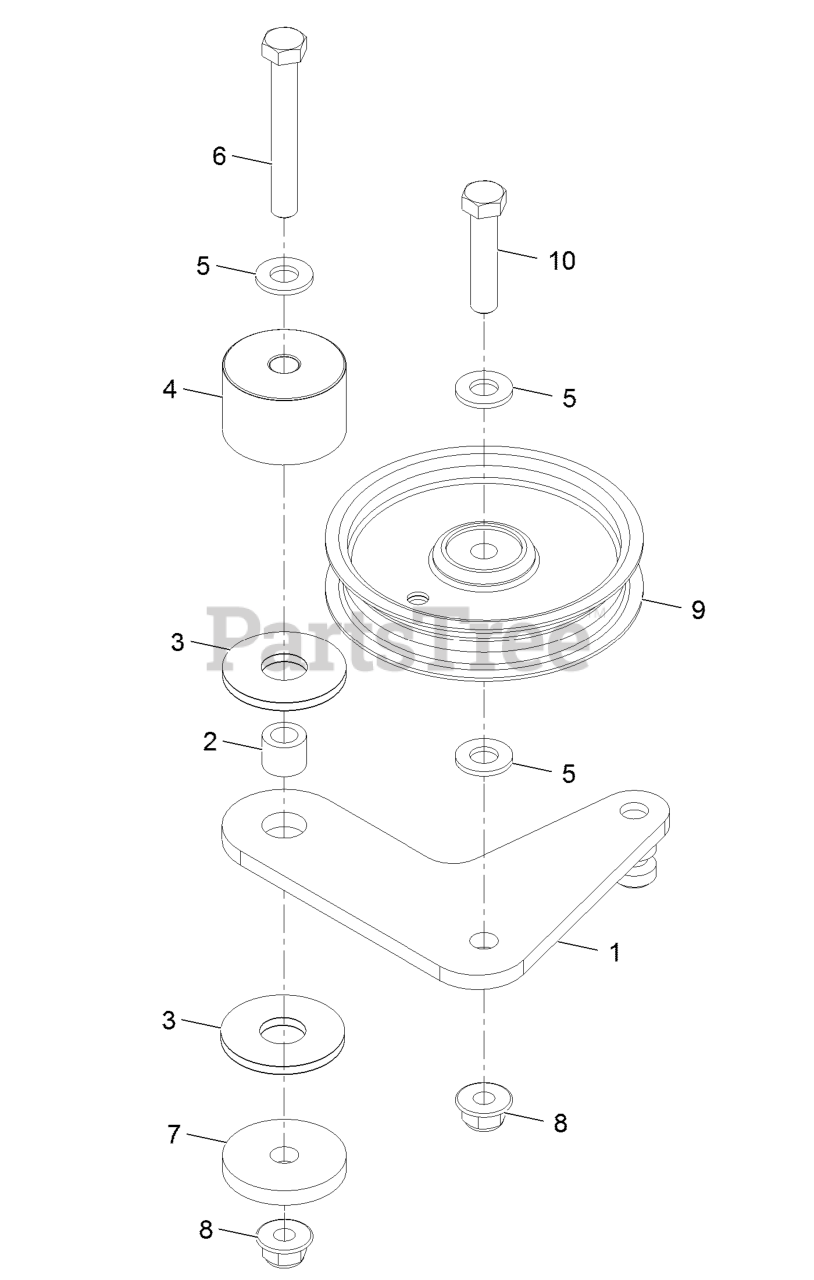

Pump Idler Assembly No. 117-7685 Parts Diagram

  • Title
1

Exmark 117-7684

PLATE-IDLER

$45.99

$

Usually ships in 3-6 days

0

2

Exmark 1-413088

BUSHING-LEVER, LIFT

$10.99

$

In Stock, only 1 left!

0

3

Exmark 114-0463

WASHER-FRICTION, COMPOSIT

$5.49

$

In Stock, Qty 11

0

4

Exmark 116-7599

HUB, IDLER

$14.99

$

Usually ships in 3-6 days

0

5

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

6

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

7

Exmark 110-9981

WASHER-PLAIN
(Superseded to 110-9981)

$14.99

$

In Stock, only 2 left!

0

8

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Exmark 93-1622

PULLEY-IDLER

$42.99

$

In Stock, only 3 left!

0

10

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
