VTX691KA524 - Exmark 52" Vantage X-Series Stand-On Mower, Kawasaki FX691V (SN: 313000000 - 313999999) (2013) Cushion Assembly No. 116-1803 Parts Diagram

52" Vantage X-Series Stand-On Mower, Kawasaki FX691V

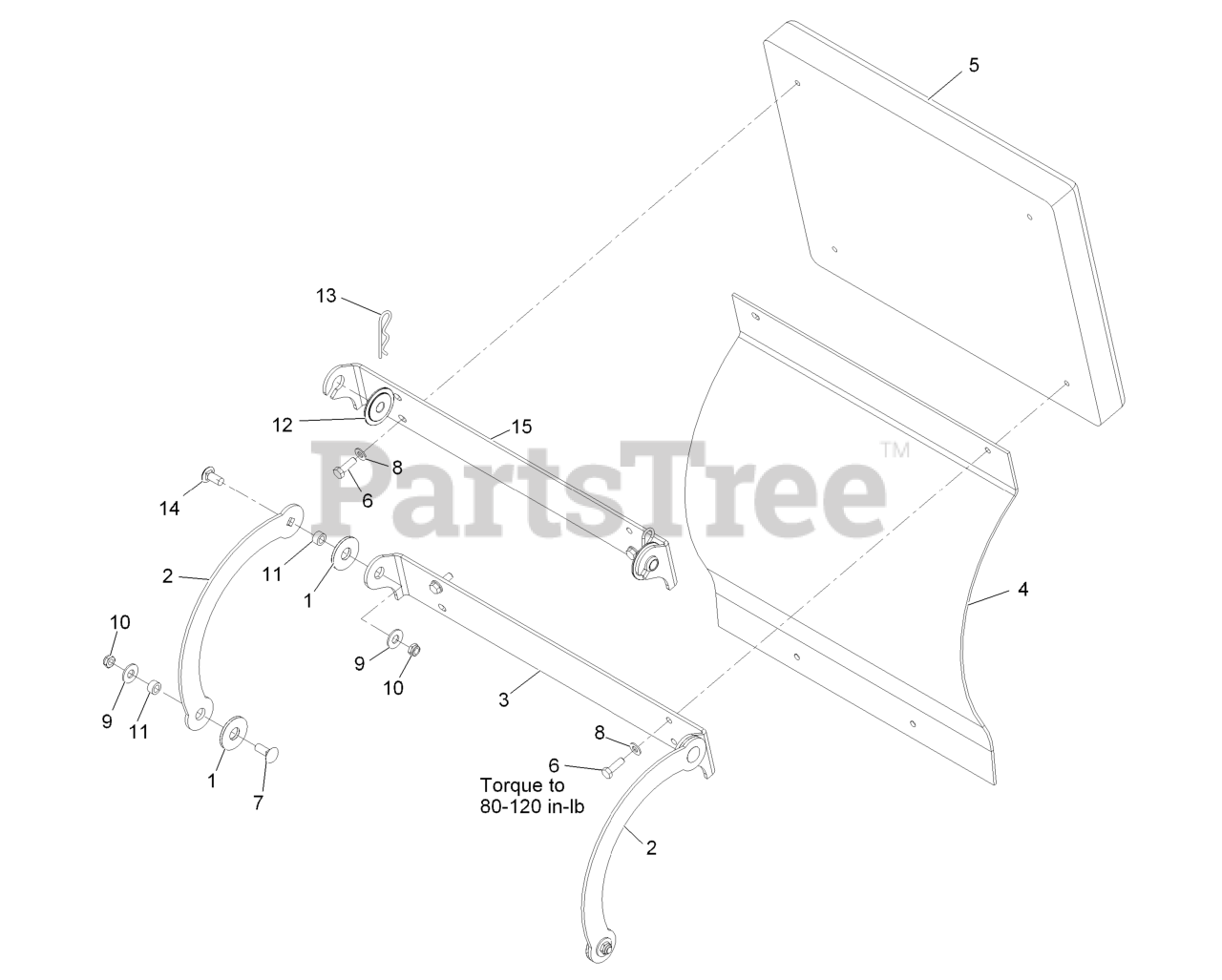

Cushion Assembly No. 116-1803 Parts Diagram

  • Title

1

Exmark 114-0463

WASHER-FRICTION, COMPOSIT

$5.49

$

In Stock, Qty 5

0

2

Exmark 114-1915-03

LINK-PAD

$30.99

$

Usually ships in 3-6 days

0

3

Exmark 116-2061-03

HINGE-PAD

$69.99

$

Usually ships in 3-6 days

0

4

Exmark 116-3406

126-0362
(Superseded to 126-0362)

$45.99

$

In Stock, only 4 left!

0

5

Exmark 116-1790

PAD,GREY CUSHION

$286.99

$

In Stock, only 1 left!

0

6

Exmark 116-0648

SCREW-HH, THREAD LOCKING

$1.49

$

In Stock, Qty 20+

0

7

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 14

0

8

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

9

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

10

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

11

Exmark 111044

SPACER

$1.49

$

In Stock, Qty 20+

0

12

Exmark 116-2886

SLIDE-BUSHING

$6.49

$

In Stock, Qty 8

0

13

Exmark 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

14

Exmark 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

15

Exmark 116-2757-03

HINGE-PAD

$63.99

$

In Stock, only 2 left!

0
