VTX651KA484 - Exmark 48" Vantage X-Series Stand-On Mower, Kawasaki FX651V (SN: 314000000 - 314999999) (2014) Wheel And Bearing Assembly No. 112-3810 Parts Diagram

48" Vantage X-Series Stand-On Mower, Kawasaki FX651V

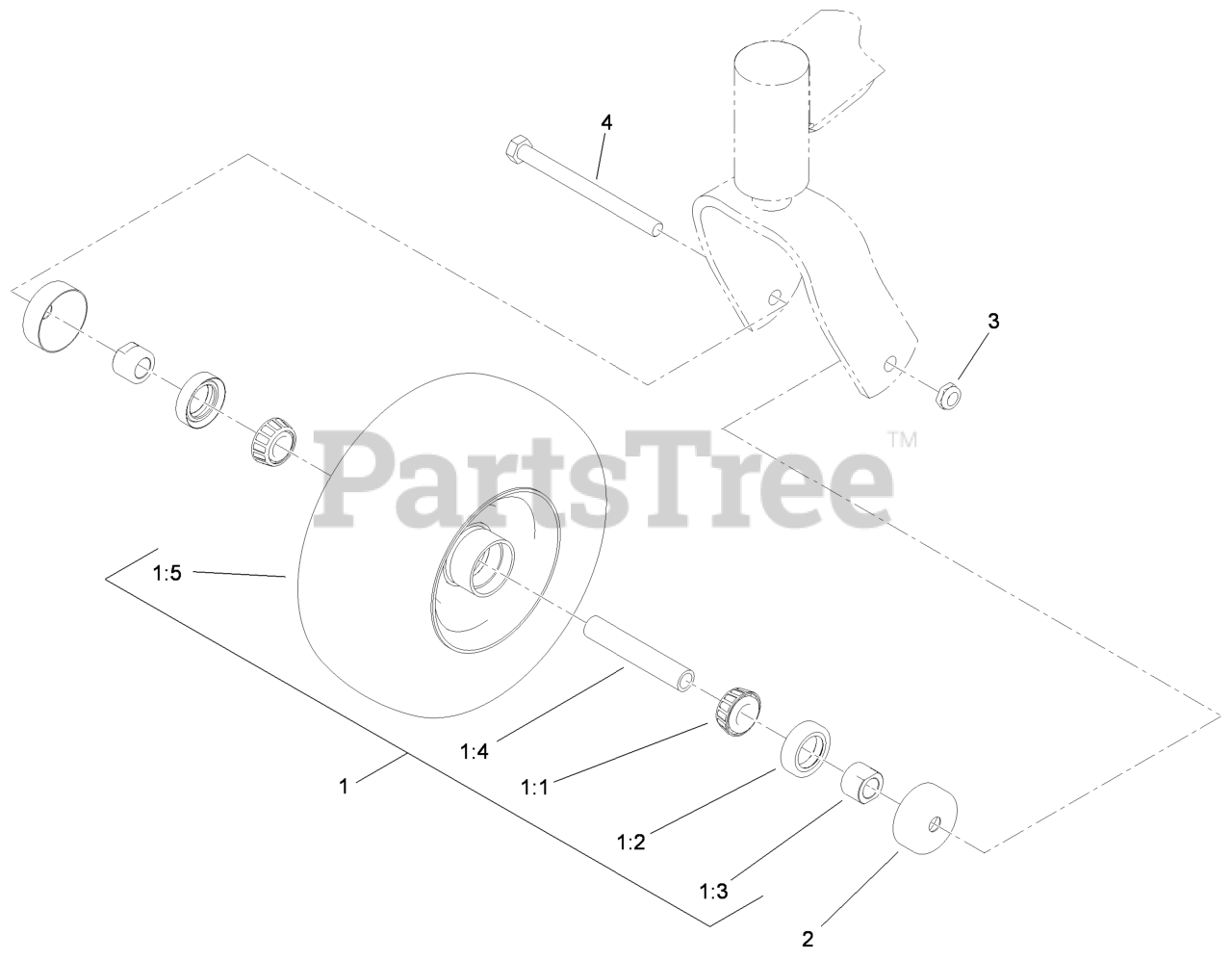

Wheel And Bearing Assembly No. 112-3810 Parts Diagram

  • Title

1

Wheel And Bearing Asm

Note: Not serviced separately

$

$

Not available

1:1

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$21.99

$

In Stock, Qty 12

0

1:2

Exmark 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 6

0

1:3

Exmark 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on spacer nut

$9.49

$

In Stock, Qty 12

0

1:4

Exmark 103-3157

126-5359
(Superseded to 126-5359)

$18.99

$

In Stock, only 2 left!

0

1:5

Exmark 110-9965

WHEEL AND TIRE ASM

$178.99

$

In Stock, only 2 left!

0

2

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

3

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

4

Exmark 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0
