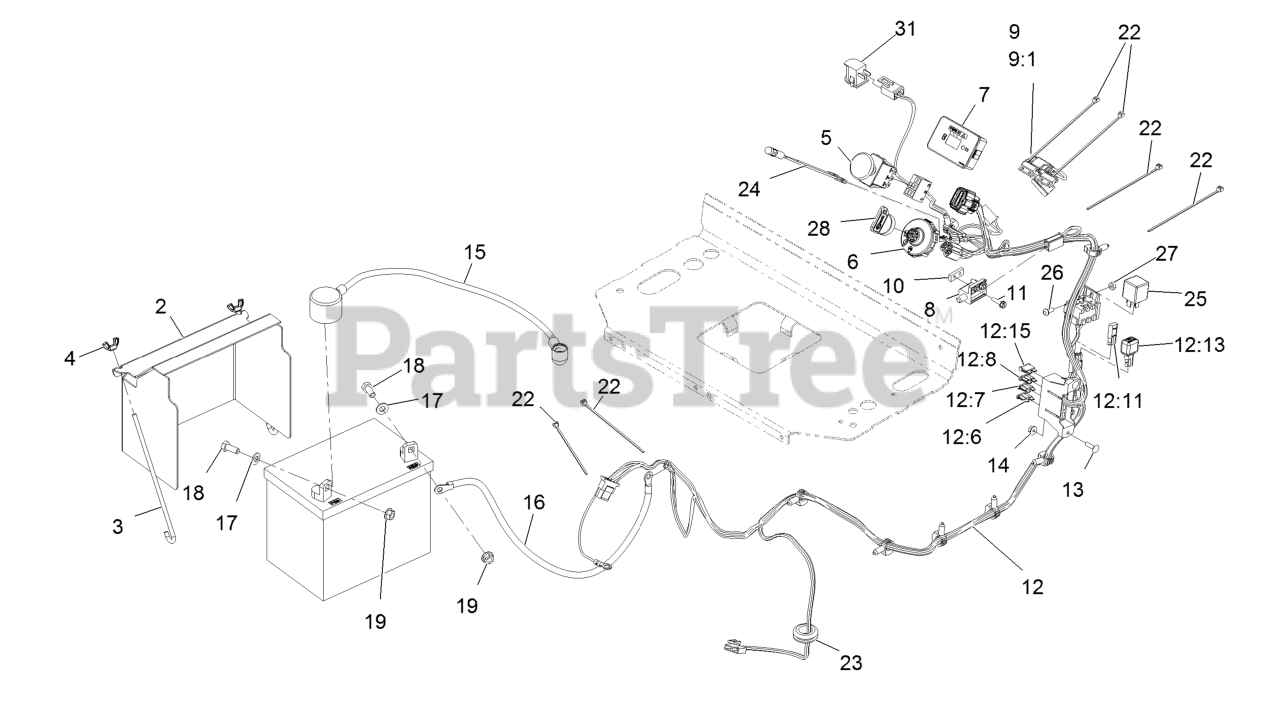

VTS740EKC60400 - Exmark 60" Vantage S-Series Stand-On Mower, Kohler ECV740 (SN: 402082300 - 404314158) (2018) Electrical Assembly Parts Diagram

60" Vantage S-Series Stand-On Mower, Kohler ECV740

Electrical Assembly Parts Diagram

  • Title

2

Exmark 117-0543-01

Cover-Battery

$88.99

$

Usually ships in 3-6 days

0

3

Exmark 1-633651

Bolt-Holddown

$7.99

$

In Stock, only 2 left!

0

4

Exmark 1-543792

Wingnut-Nyloc 1/4-20

$6.49

$

In Stock, Qty 14

0

5

Exmark 114-0279

Switch-PTO, On-On-(On)

$59.99

$

In Stock, only 2 left!

0

6

Exmark 137-4101

Switch-Ignition

$31.99

$

In Stock, only 3 left!

0

7

Exmark 116-8893

Module-Hour Meter

$137.99

$

Usually ships in 3-6 days

0

8

Exmark 1-513152

Switch-N.C.

$13.99

$

In Stock, Qty 15

0

9

Exmark 116-2833

Harness-Switch, Reed

$105.99

$

Usually ships in 3-6 days

0

9:1

Exmark 135-1570

Harness-Wire, Reed Switch

$21.99

$

Usually ships in 3-6 days

0

10

Exmark 1-633181

Plate-Tapped

$6.49

$

In Stock, only 2 left!

0

11

Exmark 32105-13

Screw-HWH #10-24 X 3/4

$1.99

$

In Stock, Qty 5

0

12

Exmark 126-1216

Harness, Wire

$338.99

$

Usually ships in 3-6 days

0

12:6

Exmark 109103

Fuse-Blade, 30 Amp

$6.49

$

In Stock, Qty 6

0

12:7

Exmark 109102

Fuse-Blade, 25 Amp

$5.49

$

In Stock, Qty 9

0

12:8

Exmark 218-578

Fuse-Blade, 10 Amp

$2.99

$

In Stock, Qty 6

0

12:11

Exmark 116-0053

Cap-Plug

$38.99

$

Usually ships in 3-6 days

0

12:13

Exmark 103-3895

Diode

$66.99

$

In Stock, Qty 5

0

12:15

Exmark 109355

Fuse-Blade, 15 Amp

$3.49

$

In Stock, only 1 left!

0

13

Exmark 3229-20

Screw-CARR

$1.99

$

Usually ships in 3-6 days

0

14

Exmark 3290-148

Nut-Whizlock #10-24

$0.99

$

In Stock, Qty 11

0

15

Exmark 115-3864

Cable-Battery, Positive

$29.99

$

In Stock, only 1 left!

0

16

Exmark 105-0836

Cable-Battery, Black

$19.99

$

Usually ships in 3-6 days

0

17

Exmark 3256-23

Washer-5/16 SAE

$2.49

$

In Stock, Qty 20+

0

18

Exmark 322-3

Screw-HH 5/16-18 X 3/4

$0.99

$

In Stock, Qty 20+

0

19

Exmark 109-5715

Nut-Hex Flange 5/16-18

$1.49

$

Usually ships in 3-6 days

0

22

Exmark 1-303287

Tie-Cable 5 1/2 (Small)

$1.49

$

Usually ships in 3-6 days

0

23

Exmark 117-2781

Grommet

$7.99

$

Usually ships in 3-6 days

0

24

Exmark 1-643267

Indicator-Red LED

$23.99

$

In Stock, only 1 left!

0

25

Exmark 1-643275

Relay-12Vdc 40 Amp

$22.99

$

In Stock, Qty 8

0

26

Exmark 3250-12

Screw-PPH #10-24 X 1/2

$0.99

$

Usually ships in 3-6 days

0

27

Exmark 3296-2

Nut-Nyloc #10-24

$2.49

$

In Stock, Qty 20+

0

28

Exmark 103-2106

Key-Exmark Logo

$5.49

$

In Stock, Qty 7

0

31

Exmark 82-2190

Switch

$14.99

$

In Stock, Qty 11

0
