VTS740EKC604 - Exmark 60" Vantage S-Series Stand-On Mower, Kohler ECV740 EFI (SN: 314000000 - 314999999) (2014) Control Assembly Parts Diagram

60" Vantage S-Series Stand-On Mower, Kohler ECV740 EFI

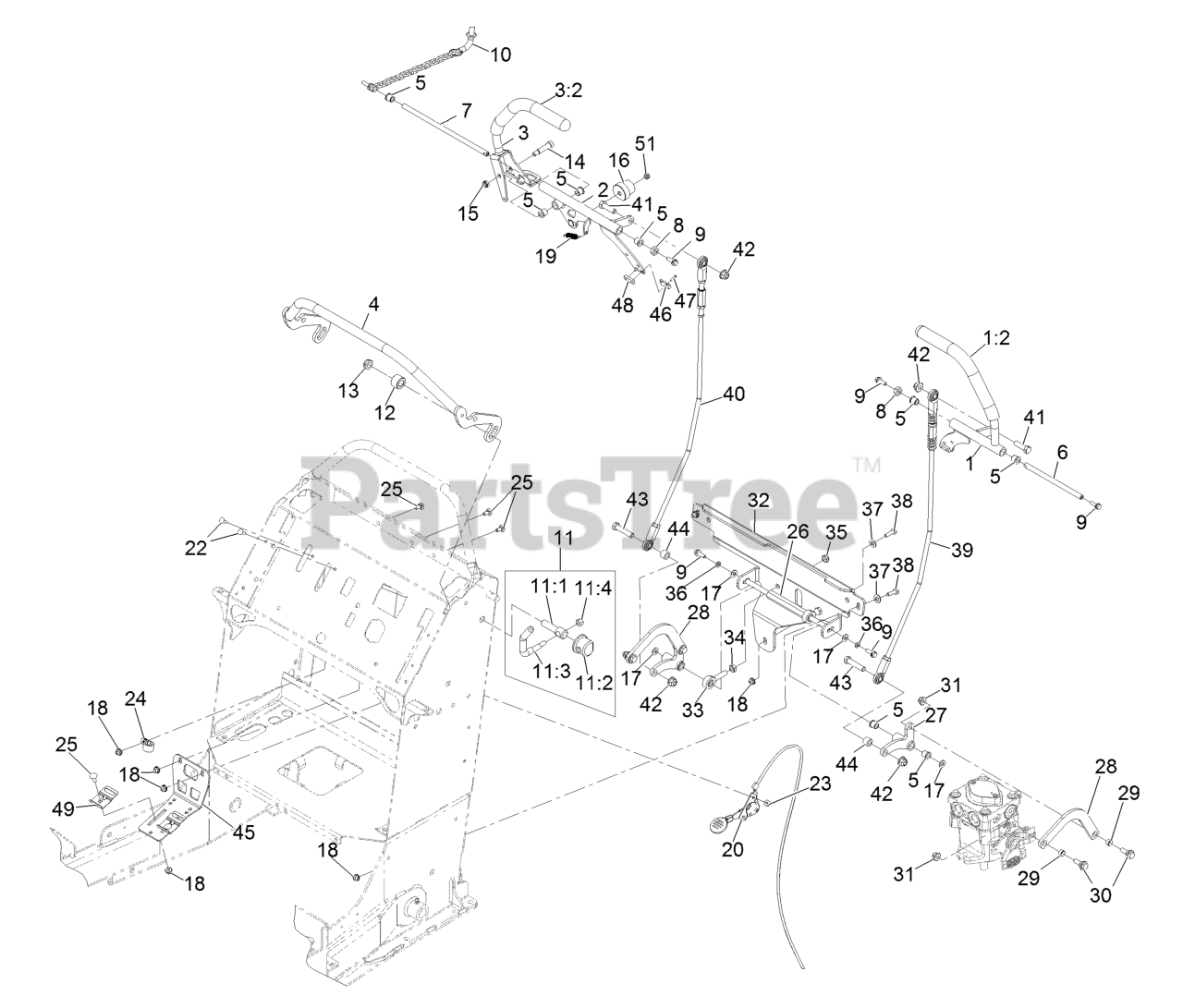

Control Assembly Parts Diagram

  • Title
1

Exmark 116-4970

LEVER ASM, LH

$114.99

$

Usually ships in 3-6 days

0

1:2

Exmark 116-2357

GRIP-HANDLE, CONTROL

$10.99

$

Usually ships in 3-6 days

0

2

Exmark 116-9817-03

WELD, MOTION CONTROL

$89.99

$

Usually ships in 3-6 days

0

3

Exmark 116-9815

ASM, LEVER W/ GRIP, RT

$88.99

$

Usually ships in 3-6 days

0

3:2

Exmark 116-2357

GRIP-HANDLE, CONTROL

$10.99

$

Usually ships in 3-6 days

0

4

Exmark 116-6985-03

TUBE ASM, FRONT SPEED CONTROL

$127.99

$

Usually ships in 3-6 days

0

5

Exmark 103-9928

BEARING

$7.99

$

In Stock, Qty 11

0

6

Exmark 116-4978

SHAFT-PIVOT, MOTION CONTROL

$26.99

$

In Stock, only 1 left!

0

7

Exmark 116-4979

SHAFT-PIVOT, MOTION CONTROL

$26.99

$

Usually ships in 3-6 days

0

8

Exmark 116-4198

SPACER-SHAFT, DRIVE LEVER

$6.49

$

Usually ships in 3-6 days

0

9

Exmark 117-8304

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

10

Exmark 114-0409

HOC PIN ASM

$52.99

$

In Stock, only 4 left!

0

11

Exmark 107-1664

LEVER ASM

$75.99

$

Usually ships in 3-6 days

0

11:1

Exmark 106-3239

SCREW-LOCK

$52.99

$

Usually ships in 3-6 days

0

11:2

Exmark 107-1644

CAP-LOCK

$38.99

$

In Stock, only 2 left!

0

11:3

Exmark 106-3241

107-1664
(Superseded to 107-1664)

$75.99

$

Usually ships in 3-6 days

0

11:4

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Exmark 116-2319

SPACER-CLAMP

$8.49

$

Usually ships in 3-6 days

0

13

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

14

Exmark 114-0239

SCREW-HSH

$12.99

$

In Stock, only 2 left!

0

15

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

$7.99

$

Usually ships in 3-6 days

0

17

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

$1.49

$

In Stock, Qty 20+

0

19

Exmark 114-0249

SPRING-EXTENSION

$13.99

$

Usually ships in 3-6 days

0

20

Exmark 116-4276

CONTROL-THROTTLE

$49.99

$

In Stock, only 1 left!

0

22

Exmark 1-807533

BOLT-CARR

$1.49

$

In Stock, Qty 6

0

23

Exmark 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

24

Exmark 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

25

Exmark 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

26

Exmark 116-3119

SHAFT-BELLCRANK PIVOT

$34.99

$

Usually ships in 3-6 days

0

27

Exmark 116-4975

BELLCRANK-CONTROL, MOTION

$61.99

$

Usually ships in 3-6 days

0

28

Exmark 116-4973

LINK-BELLCRANK, PUMP

$22.99

$

In Stock, only 3 left!

0

29

Exmark 116-4976

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 17

0

30

Exmark 116-2670

SCREW-SHOULDER

$7.99

$

In Stock, Qty 5

0

31

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

32

Exmark 116-3202-03

BRACKET-BELLCRANK

$104.99

$

Usually ships in 3-6 days

0

33

Exmark 1-613204

BALLJOINT

$31.99

$

In Stock, only 2 left!

0

34

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

35

Exmark 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

36

Exmark 325-33

SCREW-HH

$13.99

$

In Stock, only 4 left!

0

37

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

38

Exmark 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

39

Exmark 116-4936

LINKAGE-TRACKING CONTROL,LH

$149.99

$

Usually ships in 3-6 days

0

40

Exmark 116-4937

LINKAGE-TRACKING CONTROL,RH

$149.99

$

Usually ships in 3-6 days

0

41

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

42

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

43

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

44

Exmark 52-2480

SPACER-WHEEL

$6.49

$

In Stock, only 2 left!

0

45

Exmark 116-4572

BRACKET, REED SWITCH

$50.99

$

Usually ships in 3-6 days

0

46

Exmark 116-2832

ACTUATOR-SWITCH, REED

$26.99

$

Usually ships in 3-6 days

0

47

Exmark 116-3330

SCREW-HH

$12.99

$

In Stock, only 2 left!

0

48

Exmark 116-3227

PLATE-TAPPED

$10.99

$

In Stock, only 2 left!

0

49

Exmark 116-4573

CLAMP, REED SWITCH

$11.99

$

Usually ships in 3-6 days

0

51

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
