VTS730AKC52400 - Exmark 52" Vantage S-Series Stand-On Mower, Kohler ECV730 (SN: 402082300 - 404314158) (2018) Fuel Assembly Parts Diagram

52" Vantage S-Series Stand-On Mower, Kohler ECV730

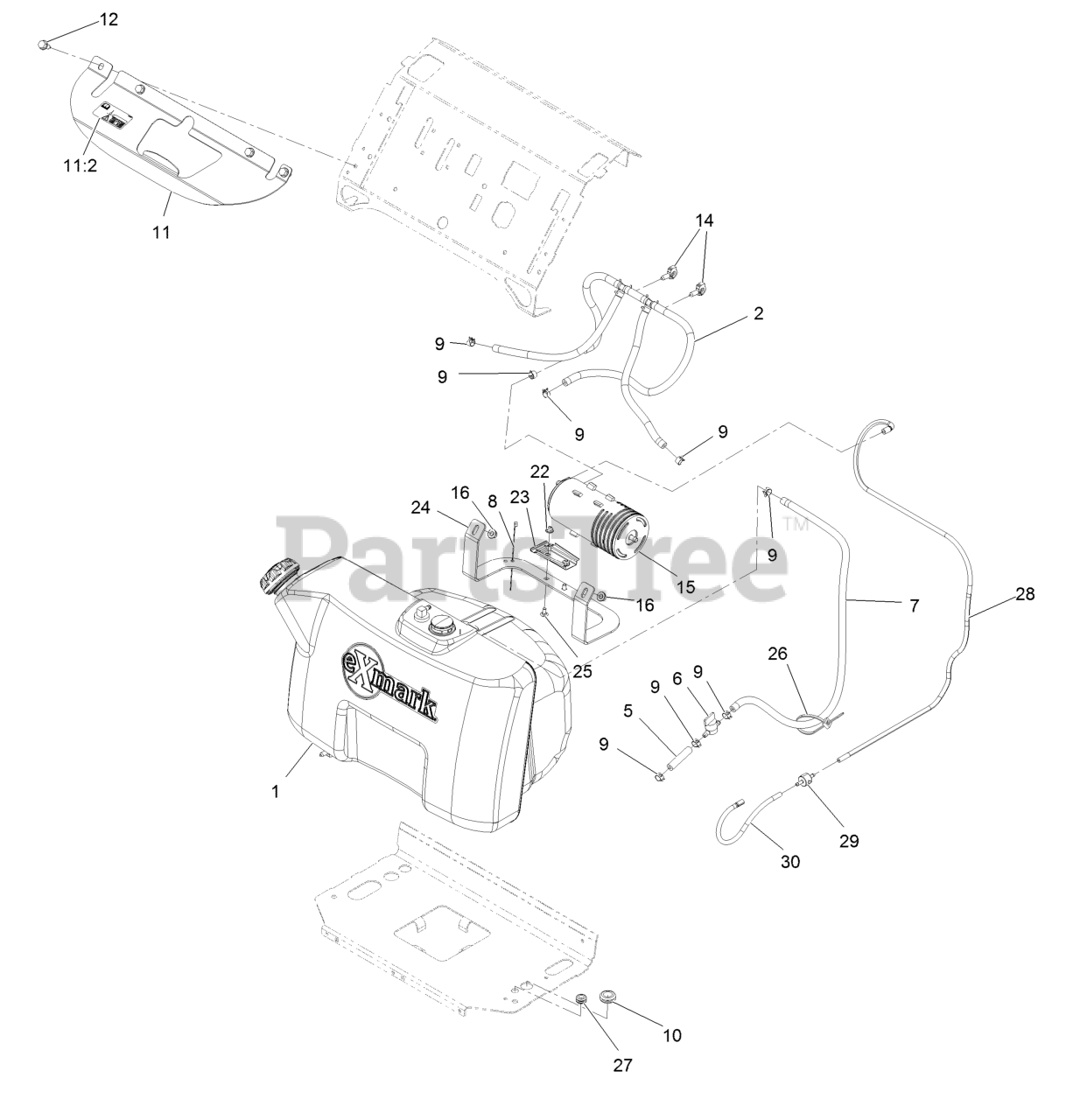

Fuel Assembly Parts Diagram

  • Title

1

Exmark 135-0647

Tank ASM-

$834.99

$

Usually ships in 3-6 days

0

2

Exmark 116-5170

Vent ASM

$69.99

$

Usually ships in 3-6 days

0

5

Exmark 116-4651

Hose-Fuel

$5.49

$

Usually ships in 3-6 days

0

6

Exmark 1-603770

Valve-Fuel

$8.49

$

In Stock, Qty 5

0

7

Exmark 109-0275

Hose-Fuel Line 32"

$13.99

$

Usually ships in 3-6 days

0

8

Exmark 1-303287

Tie-Cable 5 1/2 (Small)

$1.49

$

Usually ships in 3-6 days

0

9

Exmark 2412-98

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

10

Exmark 112-7069

Grommet

$3.49

$

Usually ships in 3-6 days

0

11

Exmark 116-3088

Bracket-Tank

$74.99

$

Usually ships in 3-6 days

0

11:2

Exmark 116-8775

Decal-Fill, Fuel

$8.99

$

Usually ships in 3-6 days

0

12

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

14

Exmark 32180-040

Clip-Harness

$2.99

$

Usually ships in 3-6 days

0

15

Exmark 117-1221

Canister-Carbon, 800Cc

$75.99

$

Usually ships in 3-6 days

0

16

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

22

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

23

Exmark 114-0292

Bracket-Canister, Carbon

$12.99

$

Usually ships in 3-6 days

0

24

Exmark 116-5600-03

Bracket-Canister Mounting

$62.99

$

Usually ships in 3-6 days

0

25

Exmark 116-5611

Bolt-Carriage 1/4-20 X 1/2 Short Neck

$5.49

$

Usually ships in 3-6 days

0

26

Exmark 3290-378

Tie-Cable

$0.99

$

In Stock, Qty 8

0

27

Exmark 237-136

Grommet

$4.49

$

In Stock, only 3 left!

0

28

Exmark 126-9473

Hose, Formed

$57.99

$

Usually ships in 3-6 days

0

29

Exmark 133-8499

Valve-Check, Vacuum

$15.99

$

In Stock, only 2 left!

0

30

Exmark 119-4235

Hose-Vent, Formed

$5.49

$

Usually ships in 3-6 days

0
