VTS730AKC52400 - Exmark 52" Vantage S-Series Stand-On Mower, Kohler ECV730 (SN: 402082300 - 404314158) (2018) Deck Assembly Parts Diagram

52" Vantage S-Series Stand-On Mower, Kohler ECV730

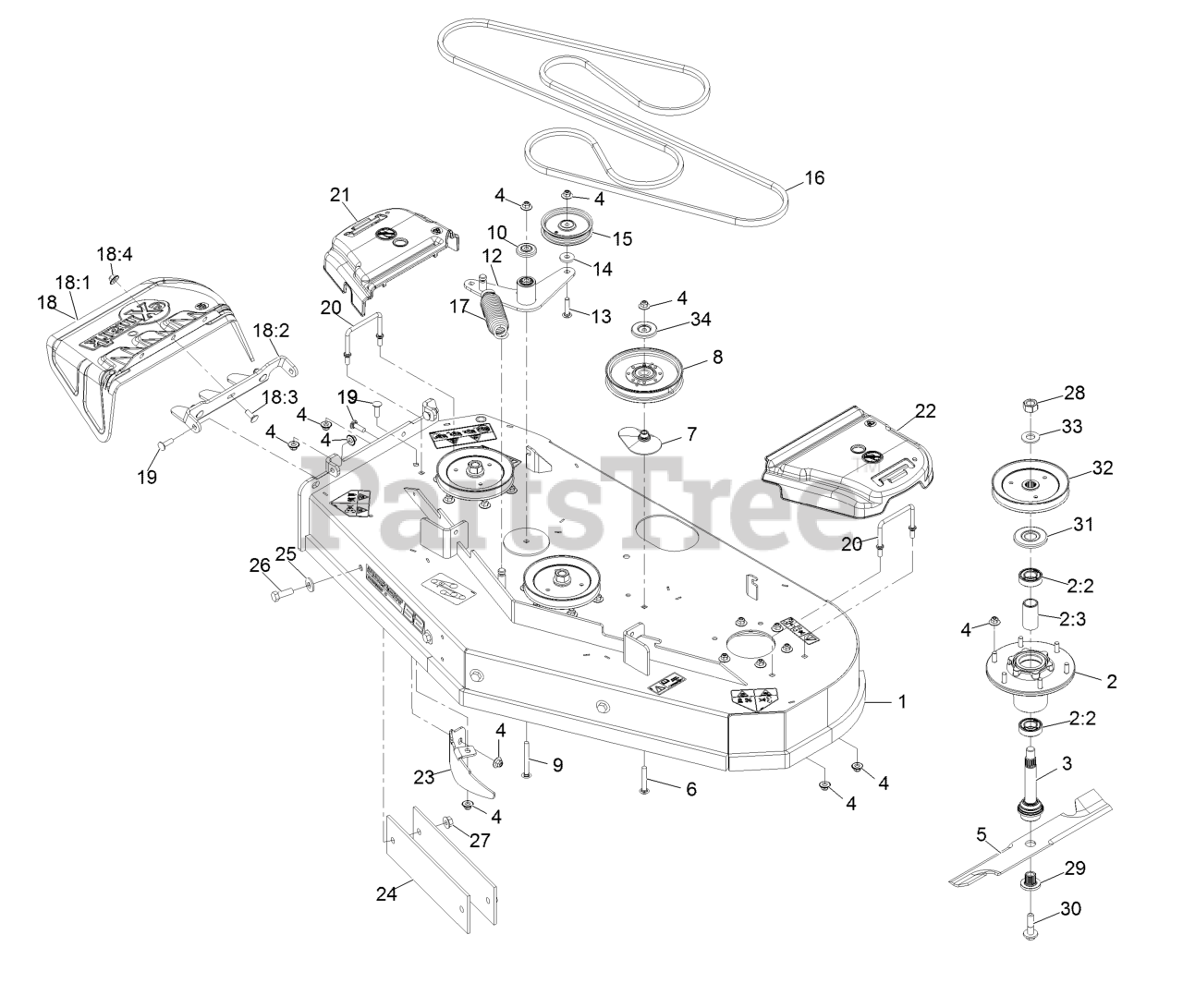

Deck Assembly Parts Diagram

  • Title

1

Exmark 116-4001

Deck ASM-524

$2784.99

$

Usually ships in 3-6 days

0

2

Exmark 116-3344

ASM-Cutter Hsg With Bearings

$167.99

$

In Stock, Qty 20+

0

2:2

Exmark 116-0720

Bearing-Ball

$22.99

$

Usually ships in 3-6 days

0

2:3

Exmark 116-3312

Spacer-Bearing

$9.99

$

In Stock, Qty 6

0

3

Exmark 116-3341

ASM-Spindle And Seal

$89.99

$

In Stock, Qty 16

0

4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, only 3 left!

0

5

Exmark 103-6392

Blade, Mulching
(Superseded to 103-6392-S)

$30.99

$

In Stock, Qty 20+

0

5

Exmark 103-6382

Blade, Solid
(Superseded to 103-6382-S)

$36.99

$

In Stock, only 4 left!

0

5

Exmark 116-5175

Blade-Extreme 2, 18.00"
(Superseded to 116-5175-S)

$30.99

$

In Stock, only 4 left!

0

5

Exmark 103-6402

Blade-Notched
(Superseded to 103-6402-S)

$30.99

$

In Stock, Qty 20+

0

5

Exmark 103-6387

Blade, Low Lift
(Superseded to 103-6387-S)

$31.99

$

In Stock, Qty 11

0

6

Exmark 3231-44

Screw-CARR

$2.99

$

In Stock, Qty 18

0

7

Exmark 109-2872

Spacer-Pulley

$22.99

$

Usually ships in 3-6 days

0

8

Exmark 126-7685

Idler-Pulley

$63.99

$

In Stock, Qty 16

0

9

Exmark 3231-11

Bolt-Carriage 3/8-16 X 3 1/2

$5.49

$

In Stock, only 2 left!

0

10

Exmark 103-2916

Guard-Top

$2.99

$

In Stock, Qty 9

0

12

Exmark 116-3806

Idler Arm ASM W/Bearings

$242.99

$

Usually ships in 3-6 days

0

13

Exmark 116-3381

Bolt-Carriage 3/8-16 X 1 3/4

$2.99

$

Usually ships in 3-6 days

0

14

Exmark 1-373034

Washer

$3.49

$

In Stock, Qty 20+

0

15

Exmark 93-1622

Pulley-Idler

$42.99

$

In Stock, only 1 left!

0

16

Exmark 116-3111

Belt-V
(Superseded to 116-3111-SL)

$165.99

$

Usually ships in 3-6 days

0

17

Exmark 116-6317

Spring-Extension

$27.99

$

In Stock, Qty 11

0

18

Exmark 109-7188

ASM,Discharge Chute

$104.99

$

In Stock, only 2 left!

0

18:1

Exmark 109-2738

Chute, Discharge

$74.99

$

In Stock, Qty 7

0

18:2

Exmark 109-8675-01

Bracket,Discharge Chute

$51.99

$

In Stock, only 1 left!

0

18:3

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

18:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, only 3 left!

0

19

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

20

Exmark 109-6982

Wireform-Cover

$11.99

$

In Stock, only 4 left!

0

21

Exmark 109-6935

Cover-Belt, RH

$37.99

$

In Stock, only 1 left!

0

22

Exmark 109-6936

Cover-Belt, LH

$37.99

$

In Stock, only 1 left!

0

23

Exmark 116-5814-01

Baffle-Dogleg, Lz-Vt52

$62.99

$

Usually ships in 3-6 days

0

24

Exmark 116-1822-01

Bar,Weight

$57.99

$

Usually ships in 3-6 days

0

25

Exmark 1-513435

Washer-Spring Disc 1/2

$5.49

$

In Stock, Qty 13

0

26

Exmark 325-6

Screw-HH 1/2-13 X 1 1/2

$3.49

$

In Stock, Qty 5

0

27

Exmark 32128-49

Nut-Whizlock 1/2-13

$1.99

$

In Stock, Qty 20+

0

28

Exmark 116-7306

Nut-Hex

$2.99

$

In Stock, Qty 11

0

29

Exmark 103-3037

Bushing, Splined

$23.99

$

In Stock, Qty 20+

0

30

Exmark 109-9220

Screw-Sems 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

31

Exmark 116-1286

Guard,Bearing Top .989

$5.99

$

In Stock, Qty 10

0

32

Exmark 116-0675

Sheave,Blade Drive 6.50

$92.99

$

In Stock, Qty 7

0

33

Exmark 103-2802

Washer-Spring Disc 3/4

$5.49

$

In Stock, Qty 16

0

34

Exmark 126-8043

Shield-Dust

$2.99

$

In Stock, only 3 left!
