VTS730AKC52400 - Exmark 52" Vantage S-Series Stand-On Mower, Kohler ECV730 (SN: 400000000 - 402082299) (2017) Fuel Assembly Parts Diagram

52" Vantage S-Series Stand-On Mower, Kohler ECV730

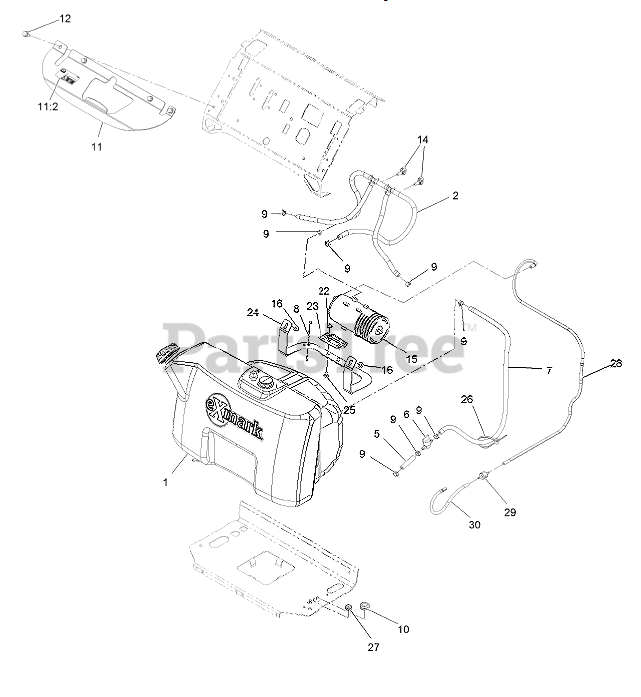

Fuel Assembly Parts Diagram

  • Title

1

Exmark 126-6922

135-0647
(Superseded to 135-0647)

$834.99

$

Usually ships in 3-6 days

0

2

Exmark 116-5170

VENT ASM

$69.99

$

Usually ships in 3-6 days

0

5

Exmark 116-4651

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

6

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 5

0

7

Exmark 109-0275

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

8

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

9

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

10

Exmark 112-7069

GROMMET

$3.49

$

Usually ships in 3-6 days

0

11

Exmark 116-3088

BRACKET-TANK

$74.99

$

Usually ships in 3-6 days

0

11:2

Exmark 116-8775

Decal-Fill, Fuel

$8.99

$

Usually ships in 3-6 days

0

12

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

13

Exmark 117-2781

GROMMET

$7.99

$

Usually ships in 3-6 days

0

15

Exmark 117-1221

CANISTER-CARBON, 800CC

$75.99

$

Usually ships in 3-6 days

0

16

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

23

Exmark 114-0292

BRACKET-CANISTER, CARBON

$12.99

$

Usually ships in 3-6 days

0

24

Exmark 116-5600-03

BRACKET,CANISTER MOUNTING

$62.99

$

Usually ships in 3-6 days

0

25

Exmark 116-5611

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

26

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

27

Exmark 237-136

GROMMET

$4.49

$

In Stock, only 3 left!

0

28

Exmark 126-9473

HOSE, FORMED

$57.99

$

Usually ships in 3-6 days

0

29

Exmark 133-8499

VALVE-CHECK, VACUUM

$15.99

$

In Stock, only 2 left!

0

30

Exmark 119-4235

HOSE-VENT, FORMED

$5.49

$

Usually ships in 3-6 days

0
