VTS691CKA52400 - Exmark 52" Vantage S-Series Stand-On Mower, Kawasaki FX691V (SN: 402082300 - 404314158) (2018) Park Brake Assembly Parts Diagram

52" Vantage S-Series Stand-On Mower, Kawasaki FX691V

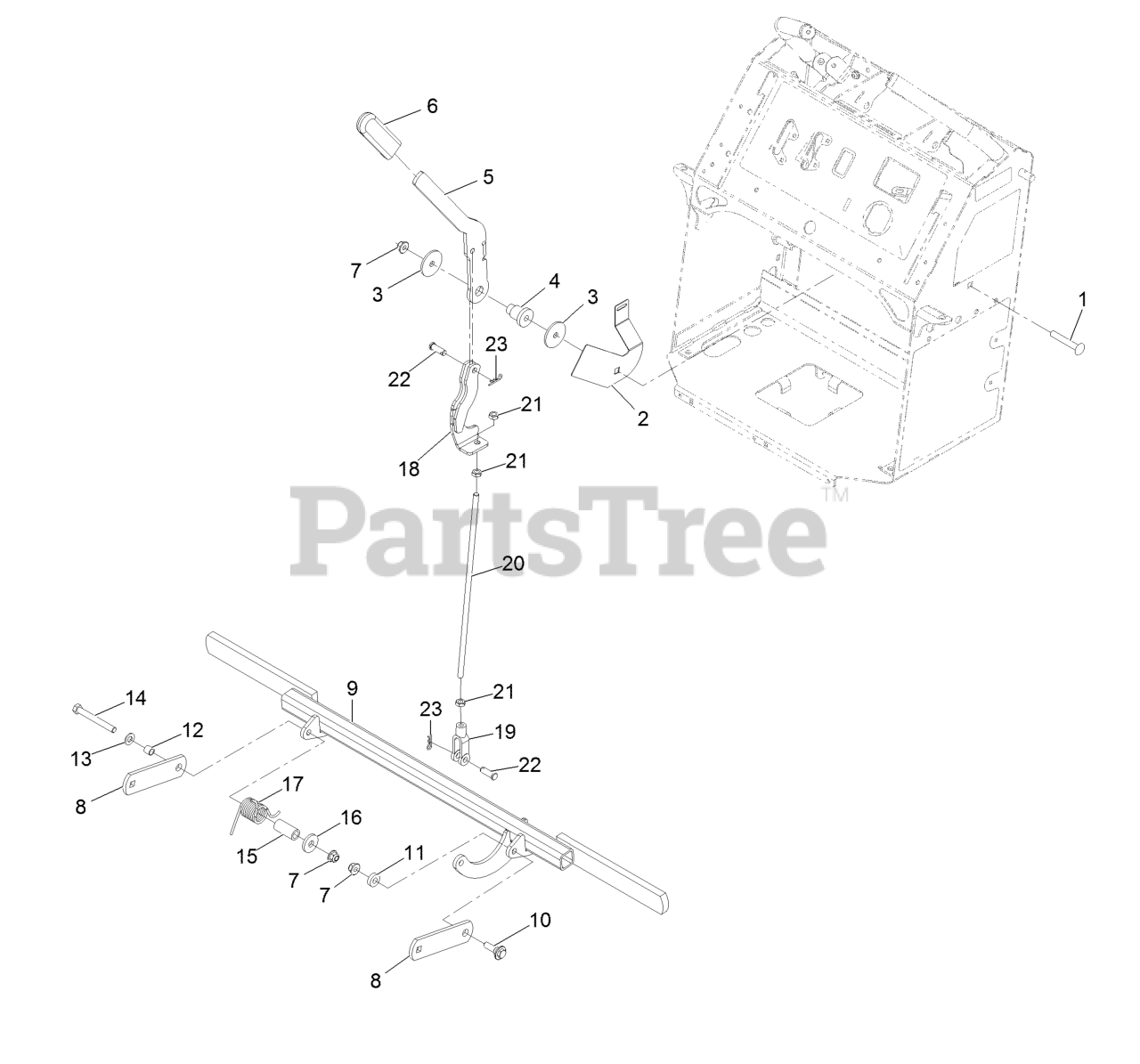

Park Brake Assembly Parts Diagram

  • Title

1

Exmark 3231-44

Bolt-Carriage 3/8-16 X 2 1/2

$2.99

$

In Stock, Qty 14

0

2

Exmark 117-0452-03

Plate-Switch, Brake

$27.99

$

Usually ships in 3-6 days

0

3

Exmark 63-7400

Washer-Rebound

$2.99

$

In Stock, only 4 left!

0

4

Exmark 106-3214

Mount-Pulley

$12.99

$

In Stock, only 4 left!

0

5

Exmark 117-5759-03

Lever-Brake

$41.99

$

Usually ships in 3-6 days

0

6

Exmark 1-633268

Grip-Lever

$14.99

$

In Stock, only 4 left!

0

7

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

8

Exmark 114-5186-01

Support-Brake

$20.99

$

Usually ships in 3-6 days

0

9

Exmark 119-8730-03

Bar-Brake

$226.99

$

Usually ships in 3-6 days

0

10

Exmark 614672

Screw-Shoulder 3/8-16 X 1.295

$2.99

$

In Stock, Qty 6

0

11

Exmark 5-0652

Spacer

$7.49

$

In Stock, Qty 5

0

12

Exmark 117-9684

Spacer

$6.49

$

Usually ships in 3-6 days

0

13

Exmark 3256-24

Washer-3/8 SAE

$0.99

$

In Stock, Qty 14

0

14

Exmark 323-20

Screw-HH 3/8-16 X 3-1/4

$3.49

$

In Stock, only 2 left!

0

15

Exmark 117-9683

Spacer

$7.99

$

Usually ships in 3-6 days

0

16

Exmark 117-9682

Spring-Torsion

$6.49

$

In Stock, only 1 left!

0

17

Exmark 1-373034

Washer

$3.49

$

In Stock, Qty 20+

0

18

Exmark 119-8780-03

Arm-Brake

$59.99

$

Usually ships in 3-6 days

0

19

Exmark 1-633131

Yoke-Linkage, Brake

$15.99

$

In Stock, Qty 5

0

20

Exmark 119-7244

Rod-Brake

$27.99

$

Usually ships in 3-6 days

0

21

Exmark 3220-3

Nut-Jam 3/8-24

$0.99

$

In Stock, Qty 17

0

22

Exmark 283-2

Pin-Clevis 3/8 X 1 1/6

$13.99

$

In Stock, only 2 left!

0

23

Exmark 3290-307

Pin-Cotter
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0
