VTS691CKA52400 - Exmark 52" Vantage S-Series Stand-On Mower, Kawasaki FX691V (SN: 402082300 - 404314158) (2018) Fuel Assembly Parts Diagram

52" Vantage S-Series Stand-On Mower, Kawasaki FX691V

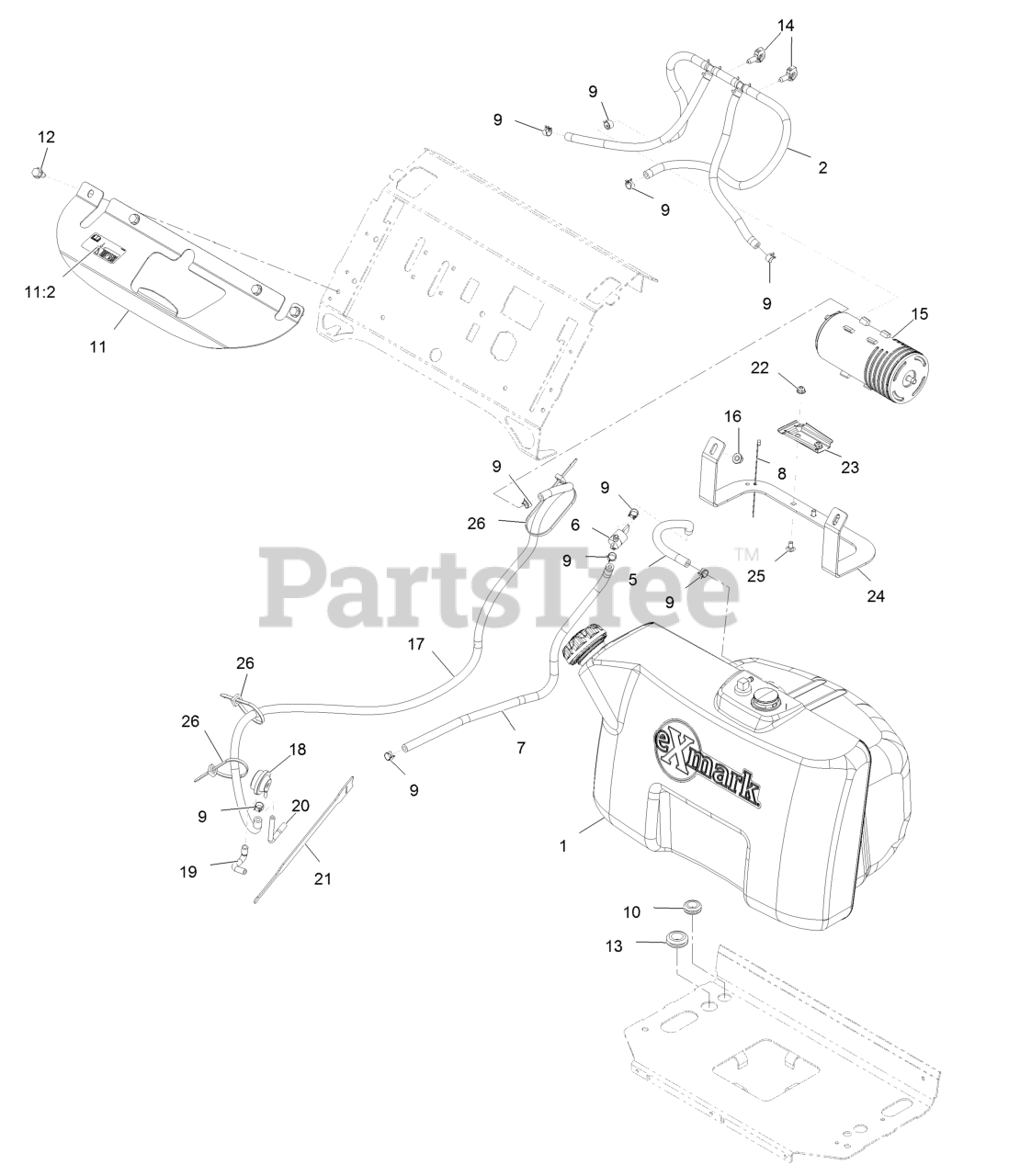

Fuel Assembly Parts Diagram

  • Title

1

Exmark 135-0647

Tank ASM-

$751.99

$

In Stock, only 1 left!

0

2

Exmark 116-5170

Vent ASM

$62.99

$

Usually ships in 3-6 days

0

5

Exmark 107-9297

Hose-Fuel

$7.99

$

In Stock, only 1 left!

0

6

Exmark 1-603770

Valve-Fuel

$7.99

$

In Stock, Qty 14

0

7

Exmark 109-0301

Hose-Fuel

$13.99

$

Usually ships in 3-6 days

0

8

Exmark 1-303287

Tie-Cable 5 1/2 (Small)

$1.49

$

Usually ships in 3-6 days

0

9

Exmark 2412-98

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

10

Exmark 112-7069

Grommet

$3.49

$

Usually ships in 3-6 days

0

11

Exmark 116-3088

Bracket-Tank

$71.99

$

Usually ships in 3-6 days

0

11:2

Exmark 116-8775

Decal-Fill, Fuel

$8.49

$

Usually ships in 3-6 days

0

12

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

13

Exmark 117-2781

Grommet

$7.99

$

Usually ships in 3-6 days

0

14

Exmark 32180-040

Clip-Harness

$2.99

$

Usually ships in 3-6 days

0

15

Exmark 117-1221

Canister-Carbon, 800Cc

$73.99

$

In Stock, only 1 left!

0

16

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

17

Exmark 63-9720

Hose-Fuel

$21.99

$

Usually ships in 3-6 days

0

18

Exmark 116-2232

Valve-Control, Vacuum

$25.99

$

In Stock, only 3 left!

0

19

Exmark 119-8502

Hose-Vent, Formed

$6.49

$

Usually ships in 3-6 days

0

20

Exmark 119-8501

Hose-Vent, Formed

$6.49

$

Usually ships in 3-6 days

0

21

Exmark 116-2469

Strap-Velcro, Cable Tie

$18.99

$

Usually ships in 3-6 days

0

22

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

23

Exmark 114-0292

Bracket-Canister, Carbon

$12.99

$

Usually ships in 3-6 days

0

24

Exmark 116-5600-03

Bracket-Canister Mounting

$60.99

$

Usually ships in 3-6 days

0

25

Exmark 116-5611

Bolt-Carriage 1/4-20 X 1/2 Short Neck

$5.49

$

Usually ships in 3-6 days

0

26

Exmark 3290-378

Tie-Cable

$0.99

$

In Stock, Qty 8

0
