VTS691CKA52400 - Exmark 52" Vantage S-Series Stand-On Mower, Kawasaki FX691V (SN: 400000000 - 402082299) (2017) Engine Assembly Parts Diagram

52" Vantage S-Series Stand-On Mower, Kawasaki FX691V

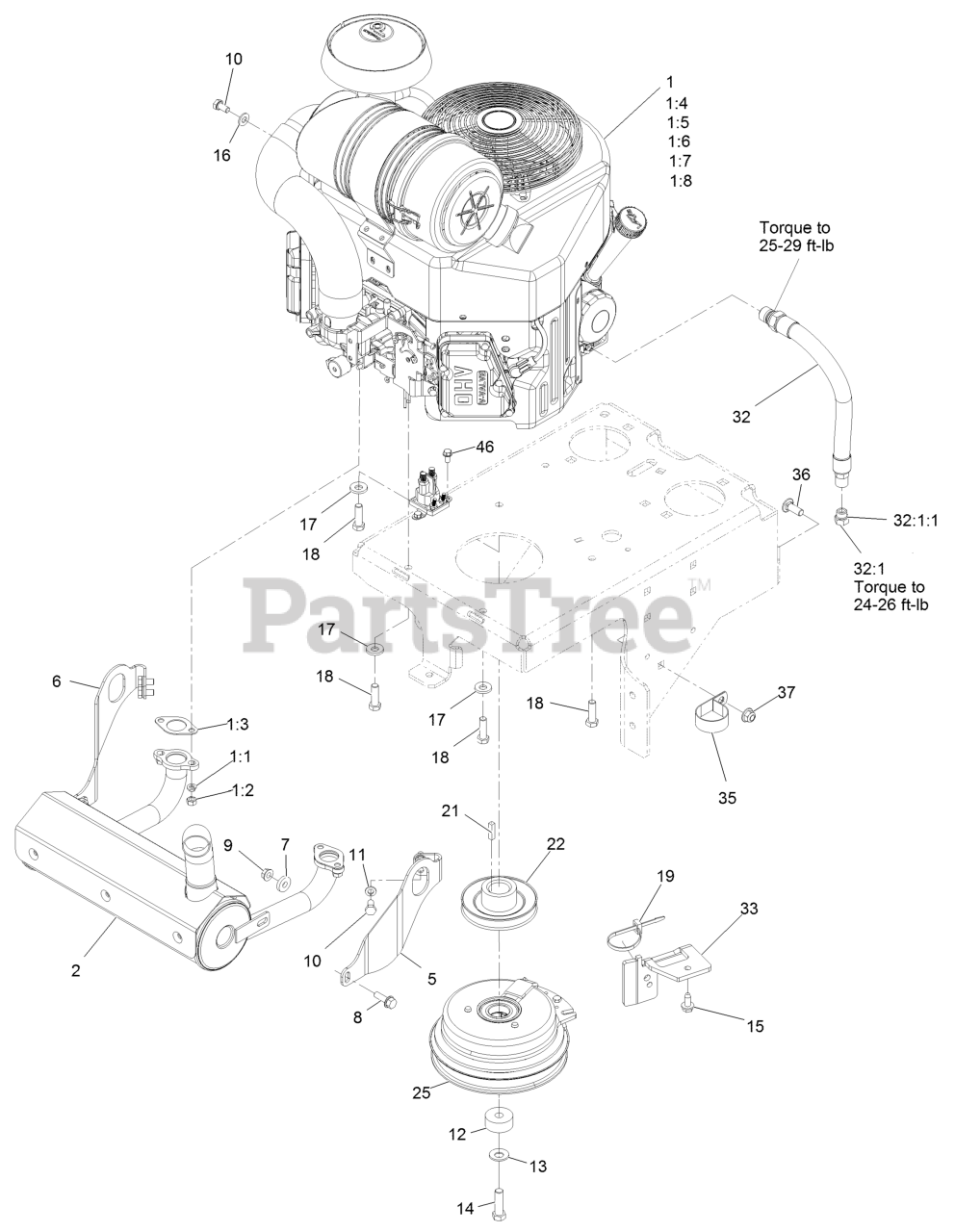

Engine Assembly Parts Diagram

  • Title

1

Engine-Kawasaki, Fx691V

Engine-Kawasaki, Fx691V

$

$

Not available

1:1

Exmark 114-3550

Washer-Lock

$1.49

$

In Stock, Qty 20+

0

1:2

Exmark 114-3549

Nut

$1.99

$

In Stock, Qty 20+

0

1:3

Exmark 1-653313

Gasket-Exhaust

$5.49

$

Usually ships in 3-6 days

0

1:4

Exmark 119-5852

Filter-Oil
(Superseded to 49065-0721)

$18.99

$

In Stock, Qty 20+

0

1:5

Exmark 92-2153

Spark Plug

$4.99

$

In Stock, Qty 7

0

1:6

Exmark 119-5944

Element-Filter, Air (Outer)

$47.99

$

Usually ships in 3-6 days

0

1:7

Exmark 119-5945

Element-Filter, Air (Inner)

$53.99

$

In Stock, only 2 left!

0

1:8

Exmark 125-6445

Filter-Fuel

$

$

Currently unavailable

2

Exmark 116-8747

Muffler, Kawasaki, 22-26

$395.99

$

In Stock, only 1 left!

0

5

Exmark 116-2353

Bracket-Muffler Mount, LH

$70.99

$

In Stock, only 1 left!

0

6

Exmark 116-2354

Bracket-Muffler Mount, RH

$70.99

$

In Stock, only 1 left!

0

7

Exmark 104-7658

Spacer

$1.49

$

In Stock, only 2 left!

0

8

Exmark 3234-29

Screw-HH Flg 5/16-18 X 1

$2.99

$

In Stock, Qty 20+

0

9

Exmark 32128-25

Nut-Hex 5/16-18 Side Lock

$3.49

$

In Stock, Qty 12

0

10

Exmark 33114-016

Screw-HH M8-1.25 X 16Mm

$0.99

$

In Stock, only 4 left!

0

11

Exmark 3253-4

Washer-Lock 5/16

$0.99

$

In Stock, Qty 20+

0

12

Exmark 103-0152

Keeper-Clutch

$12.99

$

In Stock, only 1 left!

0

13

Exmark 1-603610

Washer-Spring Disc 7/16

$5.49

$

In Stock, Qty 20+

0

14

Exmark 3212-6

Screw-HH 7/16-20 X 1 1/2

$2.49

$

In Stock, Qty 11

0

15

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

16

Exmark 33094-00

Washer

$0.99

$

In Stock, only 2 left!

0

17

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0

18

Exmark 323-7

Screw-HH 3/8-16 X 1 1/4

$2.99

$

In Stock, Qty 20+

0

19

Exmark 3290-378

Tie-Cable

$0.99

$

In Stock, Qty 8

0

21

Exmark 1-807259

Key-Machine 1/4 X 1/4 X 1

$2.49

$

In Stock, Qty 20+

0

22

Exmark 116-3882

Pulley

$118.99

$

Usually ships in 3-6 days

0

25

Exmark 116-8517

Clutch-200 Ft-Lb, 1.125 Bore - No D Driv

$653.99

$

Usually ships in 3-6 days

0

32

Exmark 116-4924

Asm-Hose Oil Drain W/Plug

$37.99

$

In Stock, Qty 7

0

32:1

Exmark 353-508

Plug-W/O-Ring

$8.49

$

In Stock, Qty 5

0

32:1:1

Exmark 237-42

O-Ring

$3.49

$

In Stock, Qty 20+

0

33

Exmark 116-3811-01

Bracket-Anchor, Clutch

$41.99

$

Usually ships in 3-6 days

0

35

Exmark 2412-147

Clamp

$9.49

$

Usually ships in 3-6 days

0

36

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

37

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

46

Exmark 32144-4

Screw-HWH 1/4-20 X 1/2 Taptite

$1.49

$

In Stock, Qty 20+

0
