VTS691CKA52400 - Exmark 52" Vantage S-Series Stand-On Mower, Kawasaki FX691V (SN: 400000000 - 402082299) (2017) Deck Lift Assembly Parts Diagram

52" Vantage S-Series Stand-On Mower, Kawasaki FX691V

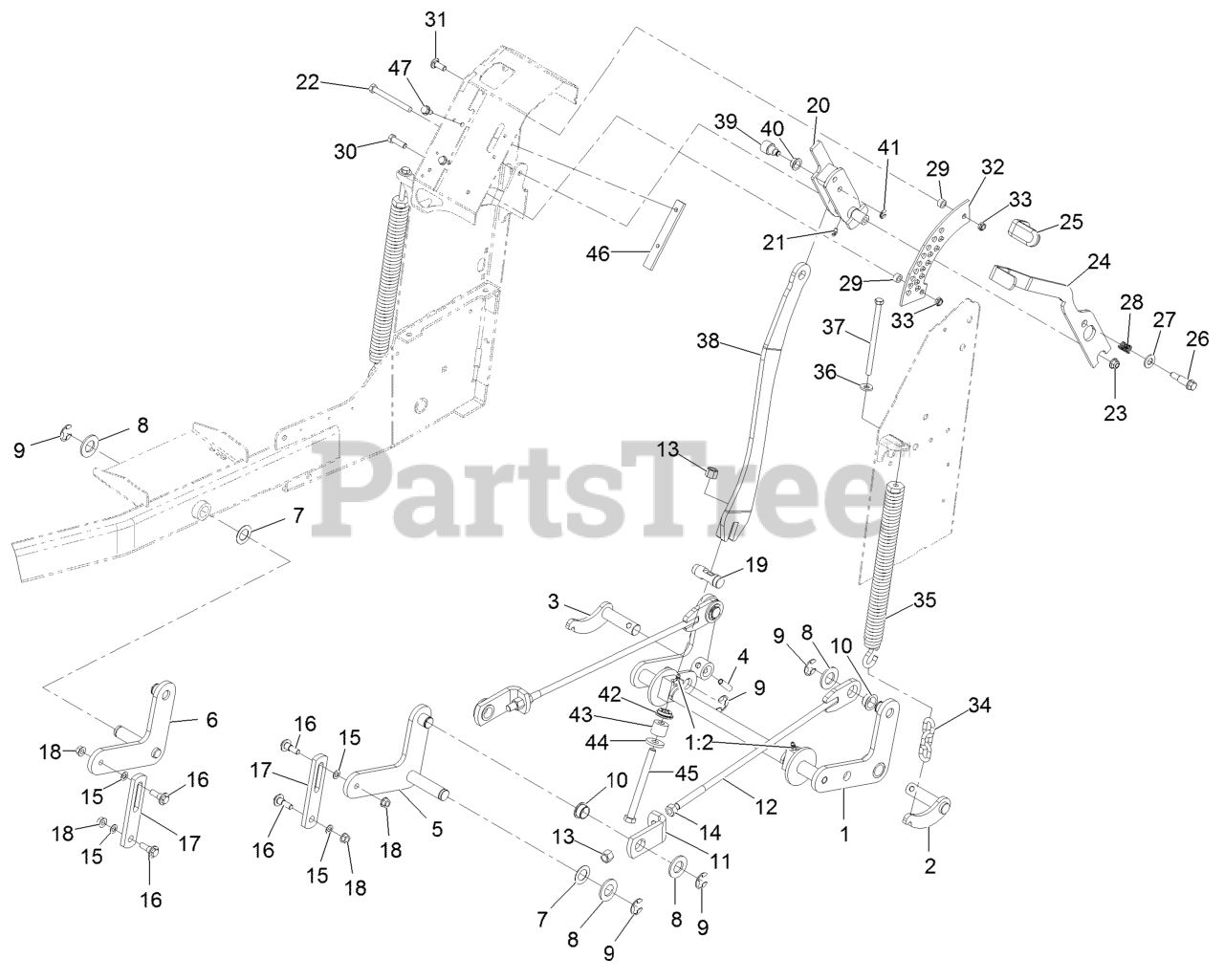

Deck Lift Assembly Parts Diagram

  • Title

1

Exmark 116-3103

Rear Crossshaft ASM

$572.99

$

Usually ships in 3-6 days

0

1:2

Exmark 302-11

Zerk-45deg 1/4-28

$1.99

$

In Stock, only 2 left!

0

2

Exmark 116-3104-01

Shaft-Pivot, LH

$52.99

$

Usually ships in 3-6 days

0

3

Exmark 116-3105-01

Shaft-Pivot, RH

$52.99

$

Usually ships in 3-6 days

0

4

Exmark 116-3107

Pin-Spiral

$7.99

$

In Stock, only 2 left!

0

5

Exmark 121-5993-01

Arm-Lift, LH

$64.99

$

Usually ships in 3-6 days

0

6

Exmark 121-5994-01

Arm-Lift, RH

$64.99

$

Usually ships in 3-6 days

0

7

Exmark 110-6767

Washer-Thrust

$1.99

$

In Stock, Qty 18

0

8

Exmark 3256-29

Washer-7/8 Sae

$2.99

$

Usually ships in 3-6 days

0

9

Exmark 32151-103

E-Ring

$3.49

$

In Stock, Qty 7

0

10

Exmark 116-2909

Bearing-Flange

$7.99

$

In Stock, only 1 left!

0

11

Exmark 116-2901

Bracket-Lift Rod

$27.99

$

Usually ships in 3-6 days

0

12

Exmark 116-8676

Lift Rod ASM

$49.99

$

Usually ships in 3-6 days

0

13

Exmark 3296-23

Nut-Nyloc 1/2-13

$1.49

$

In Stock, Qty 20+

0

14

Exmark 3217-9

Nut-Hex 1/2-13

$0.99

$

In Stock, Qty 19

0

15

Exmark 40-1940

Washer

$2.99

$

In Stock, Qty 18

0

16

Exmark 109-9840

Screw-Hex Flange 3/8-16 X 0.8

$5.49

$

In Stock, Qty 11

0

17

Exmark 117-0519

Link-Lift

$37.99

$

Usually ships in 3-6 days

0

18

Exmark 32128-21

Nut-3/8-16 Flanged Side Lock

$0.99

$

In Stock, Qty 20+

0

19

Exmark 114-5274

Pin-HOC

$26.99

$

In Stock, only 1 left!

0

20

Exmark 114-3512

HOC Handle ASM

$240.99

$

Usually ships in 3-6 days

0

21

Exmark 302-5

Zerk 1/4-28 Str Thrd Forming

$3.49

$

In Stock, Qty 20+

0

22

Exmark 323-42

Screw-HH 3/8-16 X 3 3/4

$8.49

$

Usually ships in 3-6 days

0

23

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

24

Exmark 114-1878-03

Lever-HOC

$121.99

$

In Stock, only 1 left!

0

25

Exmark 1-633268

Grip-Lever

$14.99

$

In Stock, only 4 left!

0

26

Exmark 66-0561

Screw-Shoulder

$5.99

$

In Stock, only 1 left!

0

27

Exmark 3256-26

Washer-1/2 Sae

$0.99

$

In Stock, Qty 20+

0

28

Exmark 65-9940

Spring

$4.99

$

Usually ships in 3-6 days

0

29

Exmark 111044

Bushing

$1.49

$

In Stock, Qty 20+

0

30

Exmark 323-7

Screw-HH 3/8-16 X 1 1/4

$2.99

$

In Stock, Qty 20+

0

31

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

32

Exmark 114-5307

Bracket-HOC

$41.99

$

Usually ships in 3-6 days

0

33

Exmark 3296-59

Nut-Nyloc 3/8-16 Thin
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

34

Exmark 103-9859

Chain-Decklift

$6.99

$

Usually ships in 3-6 days

0

35

Exmark 116-0886

Extension Spring ASM

$136.99

$

In Stock, only 1 left!

0

36

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0

37

Exmark 323-58

Bolt-HH 3/8-16 X 6 Tap

$5.49

$

Usually ships in 3-6 days

0

38

Exmark 116-2939

Bar-Lift

$107.99

$

Usually ships in 3-6 days

0

39

Exmark 116-3048

Hub-Pivot

$39.99

$

In Stock, only 1 left!

0

40

Exmark 116-3047

Bearing-Flange

$5.49

$

Usually ships in 3-6 days

0

41

Exmark 32151-47

Ring-Retaining

$2.99

$

In Stock, only 3 left!

0

42

Exmark 116-3625

Seat-Spring

$6.99

$

In Stock, only 1 left!

0

43

Exmark 116-3241

Spring-Urethane

$33.99

$

In Stock, only 1 left!

0

44

Exmark 92-2651

Washer

$4.99

$

In Stock, only 2 left!

0

45

Exmark 325-22

Screw-HH 1/2-13 X 5 1/2

$8.49

$

In Stock, Qty 7

0

46

Exmark 116-3124

Skid-Handle, Lift

$23.99

$

Usually ships in 3-6 days

0

47

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 16

0
