Exmark 116-4970

LEVER ASM, LH

$126.99

$

Usually ships in 3-6 days

1:2

Exmark 116-2357

GRIP-HANDLE, CONTROL

$11.99

$

Usually ships in 3-6 days

2

Exmark 116-9817-03

WELD, MOTION CONTROL

$93.99

$

Usually ships in 3-6 days

3

Exmark 116-9815

ASM, LEVER W/ GRIP, RT

$97.99

$

Usually ships in 3-6 days

3:2

Exmark 116-2357

GRIP-HANDLE, CONTROL

$11.99

$

Usually ships in 3-6 days

4

Exmark 116-6985-03

TUBE ASM, FRONT SPEED CONTROL

$140.99

$

Usually ships in 3-6 days

5

Exmark 103-9928

BEARING

$8.49

$

In Stock, Qty 10

6

Exmark 116-4978

SHAFT-PIVOT, MOTION CONTROL

$27.99

$

In Stock, only 1 left!

7

Exmark 116-4979

SHAFT-PIVOT, MOTION CONTROL

$27.99

$

Usually ships in 3-6 days

8

Exmark 116-4198

SPACER-SHAFT, DRIVE LEVER

$6.49

$

Usually ships in 3-6 days

9

Exmark 117-8304

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

10

Exmark 114-0409

HOC PIN ASM

$55.99

$

In Stock, only 4 left!

11

Exmark 107-1664

LEVER ASM

$79.99

$

Usually ships in 3-6 days

11:1

Exmark 106-3239

SCREW-LOCK

$55.99

$

Usually ships in 3-6 days

11:2

Exmark 107-1644

CAP-LOCK

$41.99

$

In Stock, only 2 left!

11:3

Exmark 106-3241

107-1664

(Superseded to 107-1664) 

$79.99

$

Usually ships in 3-6 days

11:4

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

12

Exmark 116-2319

SPACER-CLAMP

$8.49

$

Usually ships in 3-6 days

13

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

14

Exmark 114-0239

SCREW-HSH

$13.99

$

In Stock, only 2 left!

15

Exmark 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

16

Exmark 126-1499

CAM

$7.99

$

Usually ships in 3-6 days

17

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

18

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

19

Exmark 114-0249

SPRING-EXTENSION

$14.99

$

In Stock, only 2 left!

20

Exmark 116-4276

CONTROL-THROTTLE

$54.99

$

In Stock, Qty 8

21

Exmark 116-4277

CONTROL-CHOKE

$48.99

$

In Stock, only 2 left!

22

Exmark 1-807533

BOLT-CARR

$1.99

$

In Stock, only 2 left!

23

Exmark 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 11

24

Exmark 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

25

Exmark 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 9

26

Exmark 116-3119

SHAFT-BELLCRANK PIVOT

$38.99

$

Usually ships in 3-6 days

27

Exmark 116-4975

BELLCRANK-CONTROL, MOTION

$64.99

$

Usually ships in 3-6 days

28

Exmark 116-4973

LINK-BELLCRANK, PUMP

$23.99

$

In Stock, Qty 5

29

Exmark 116-4976

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 20+

30

Exmark 116-2670

SCREW-SHOULDER

$7.99

$

In Stock, Qty 12

31

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

32

Exmark 116-3202-03

BRACKET-BELLCRANK

$109.99

$

Usually ships in 3-6 days

33

Exmark 1-613204

BALLJOINT

$34.99

$

Usually ships in 3-6 days

34

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 5

35

Exmark 3296-5

NUT-HEX

$3.99

$

In Stock, Qty 20+

36

Exmark 325-33

SCREW-HH

$14.99

$

In Stock, only 4 left!

37

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

38

Exmark 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

39

Exmark 116-4936

LINKAGE-TRACKING CONTROL,LH

$158.99

$

Usually ships in 3-6 days

40

Exmark 116-4937

LINKAGE-TRACKING CONTROL,RH

$158.99

$

Usually ships in 3-6 days

41

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

42

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

43

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

44

Exmark 52-2480

SPACER-WHEEL

$6.99

$

In Stock, Qty 5

45

Exmark 116-4572

BRACKET, REED SWITCH

$53.99

$

Usually ships in 3-6 days

46

Exmark 116-2832

ACTUATOR-SWITCH, REED

$30.99

$

Usually ships in 3-6 days

47

Exmark 116-3330

SCREW-HH

$13.99

$

In Stock, only 2 left!

48

Exmark 116-3227

PLATE-TAPPED

$11.99

$

In Stock, only 2 left!

49

Exmark 116-4573

CLAMP, REED SWITCH

$11.99

$

Usually ships in 3-6 days

50

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

51

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

VTS691CKA52400 - Exmark 52" Vantage S-Series Stand-On Mower, Kawasaki FX691V (SN: 315000000 - 315999999) (2015) Control Assembly Parts Diagram

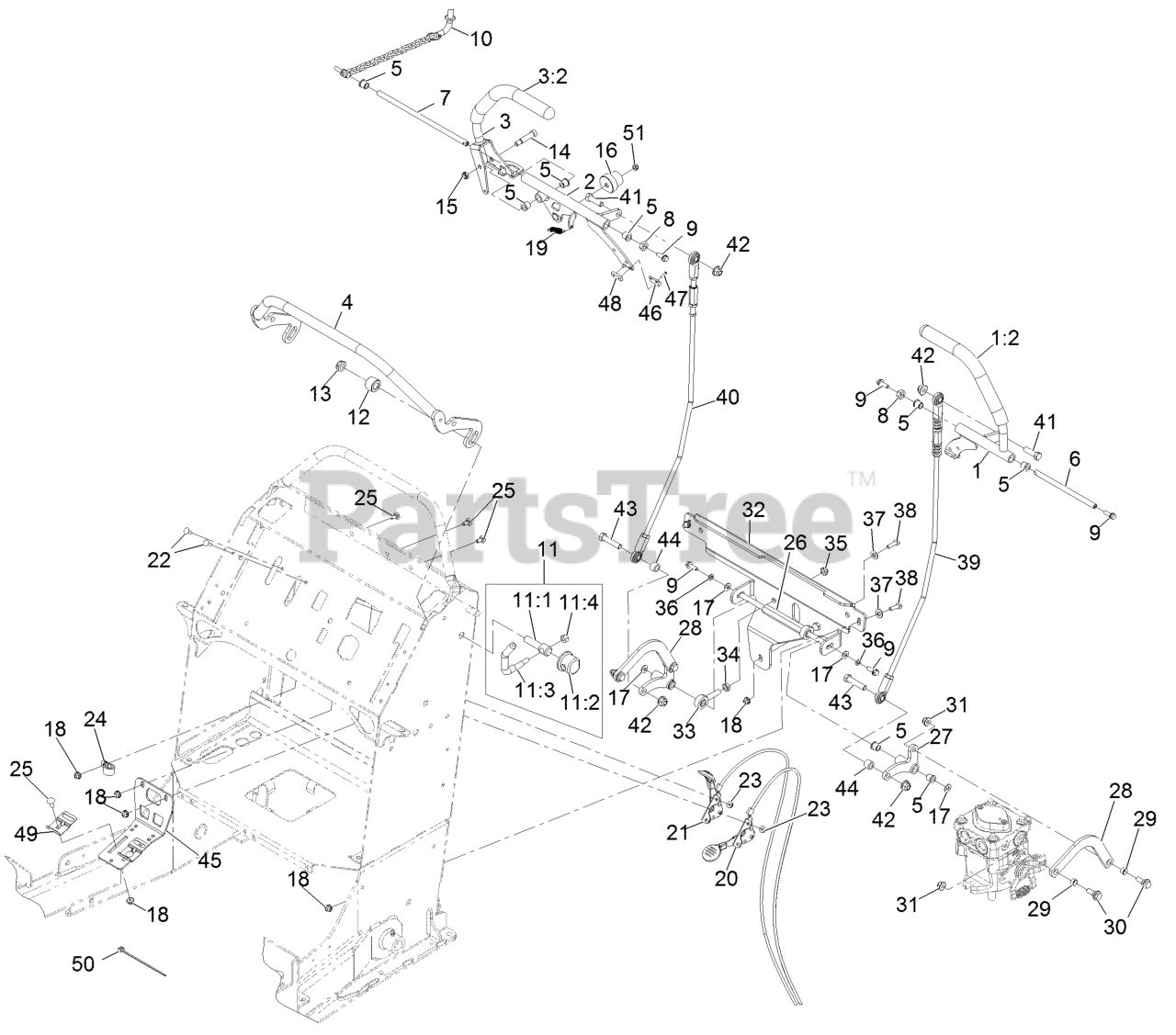

Control Assembly Parts Diagram
