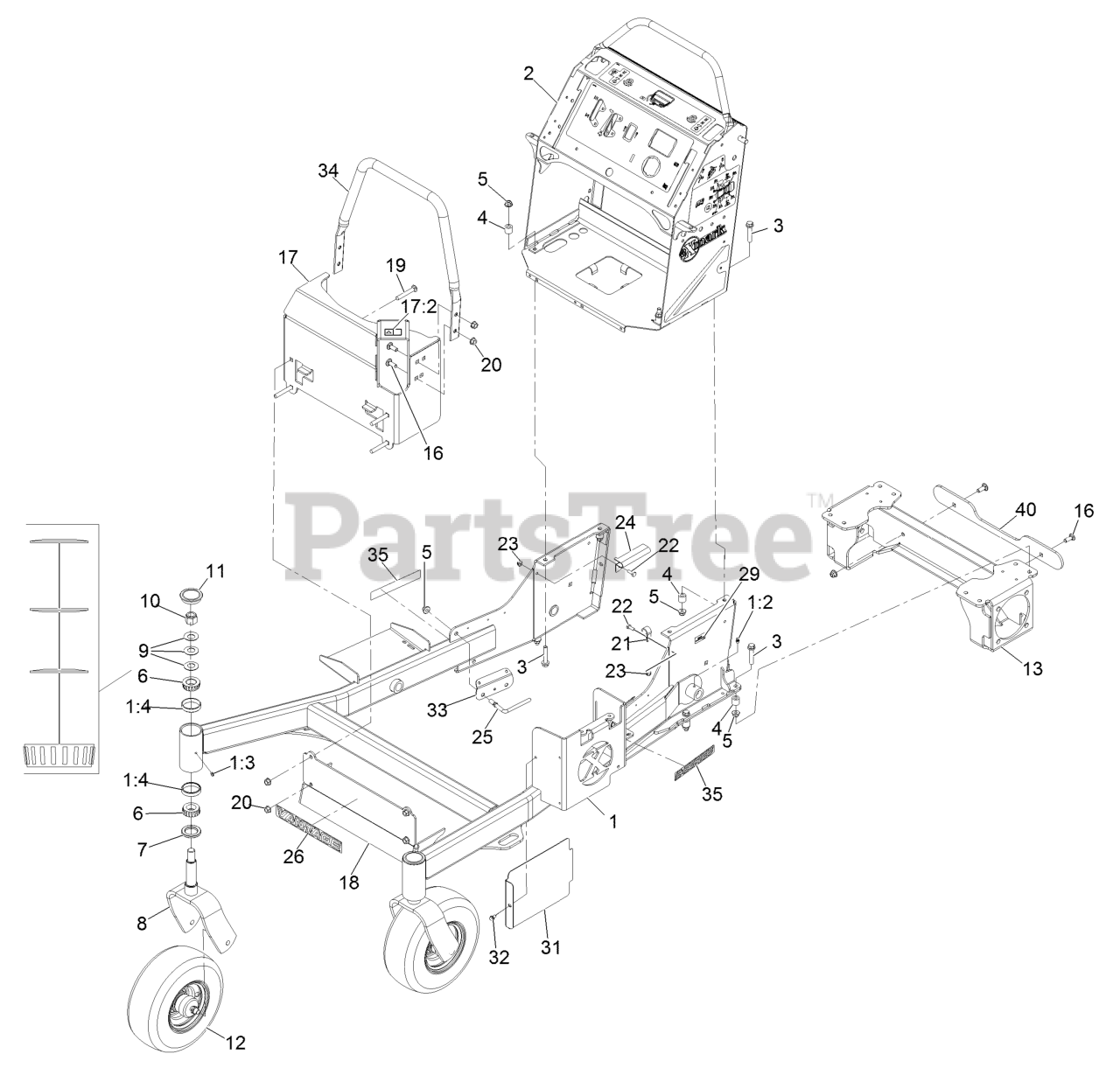

VTS691CKA48400 - Exmark 48" Vantage S-Series Stand-On Mower, Kawasaki FX691V (SN: 402082300 - 404314158) (2018) Main Frame Assembly Parts Diagram

48" Vantage S-Series Stand-On Mower, Kawasaki FX691V

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 116-7045

Front Frame ASM

$1803.99

$

Usually ships in 3-6 days

0

1:2

Exmark 302-5

Zerk 1/4-28 Str Thrd Forming

$3.49

$

In Stock, Qty 20+

0

1:3

Exmark 1-811010

Plug

$5.49

$

In Stock, Qty 11

0

1:4

Exmark 1-543508

Cup-Bearing Tapered Roller

$7.99

$

In Stock, Qty 15

0

2

Exmark 135-0159

Control Tower ASM

$1173.99

$

Usually ships in 3-6 days

0

3

Exmark 108-3742

Screw-HHF

$6.49

$

Usually ships in 3-6 days

0

4

Exmark 121-1760

Spacer

$2.49

$

In Stock, only 2 left!

0

5

Exmark 104-8301

Nut-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Exmark 1-543509

Bearing-Roller, Tapered

$13.99

$

In Stock, Qty 20+

0

7

Exmark 116-5647

Seal-Grease

$5.49

$

In Stock, Qty 20+

0

8

Exmark 121-7988-01

Fork-Caster

$201.99

$

In Stock, Qty 20+

0

9

Exmark 1-633508

Washer-Bellville

$3.49

$

In Stock, Qty 20+

0

10

Exmark 3296-51

Nut-Lock, NI

$6.49

$

In Stock, Qty 20+

0

11

Exmark 103-4882

Cap-Grease

$7.99

$

In Stock, Qty 20+

0

12

Exmark 112-3810

Wheel/Tire And Bearing ASM

$215.99

$

In Stock, only 2 left!

0

13

Exmark 116-9560-03

Motor Frame Weldment [black]

$264.99

$

Usually ships in 3-6 days

0

16

Exmark 3231-22

Screw-CARR

$3.49

$

In Stock, Qty 20+

0

17

Exmark 126-5015

ASM, Muffler Guard W/ Decal

$234.99

$

Usually ships in 3-6 days

0

17:2

Exmark 106-5517

Decal-Warning

$5.49

$

In Stock, only 3 left!

0

18

Exmark 116-3113-01

Panel-Guard

$111.99

$

Usually ships in 3-6 days

0

19

Exmark 3231-31

Bolt-Carriage 3/8-16 X 2 1/2

$7.49

$

In Stock, Qty 20+

0

20

Exmark 32128-21

Nut-3/8-16 Flanged Side Lock

$0.99

$

In Stock, Qty 20+

0

21

Exmark 2412-87

Clamp-Cable

$3.49

$

Usually ships in 3-6 days

0

22

Exmark 321-4

Screw-HH 1/4-20 X 3/4

$1.49

$

In Stock, Qty 20+

0

23

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

24

Exmark 116-5067

Bracket-Hose, Fuel (Double)

$22.99

$

Usually ships in 3-6 days

0

25

Exmark 116-3382

Guide-Hose, Support

$21.99

$

Usually ships in 3-6 days

0

26

Exmark 126-7200

Decal-Vantage Logo

$7.99

$

Usually ships in 3-6 days

0

29

Exmark 126-4345

Decal-Patent

$1.99

$

In Stock, Qty 9

0

31

Exmark 116-6981-01

Shield-Heat, Tall

$33.99

$

Usually ships in 3-6 days

0

32

Exmark 32144-4

Screw-HWH 1/4-20 X 1/2 Taptite

$1.49

$

In Stock, Qty 20+

0

33

Exmark 116-6997-01

Guard-Hose

$12.99

$

Usually ships in 3-6 days

0

34

Exmark 116-8152-03

Tube-Guard

$45.99

$

Usually ships in 3-6 days

0

35

Exmark 126-6572

Decal-S-Series

$3.49

$

In Stock, only 2 left!

0

40
