VTS691CKA48400 - Exmark 48" Vantage S-Series Stand-On Mower, Kawasaki FX691V (SN: 402082300 - 404314158) (2018) Ground Drive Assembly Parts Diagram

48" Vantage S-Series Stand-On Mower, Kawasaki FX691V

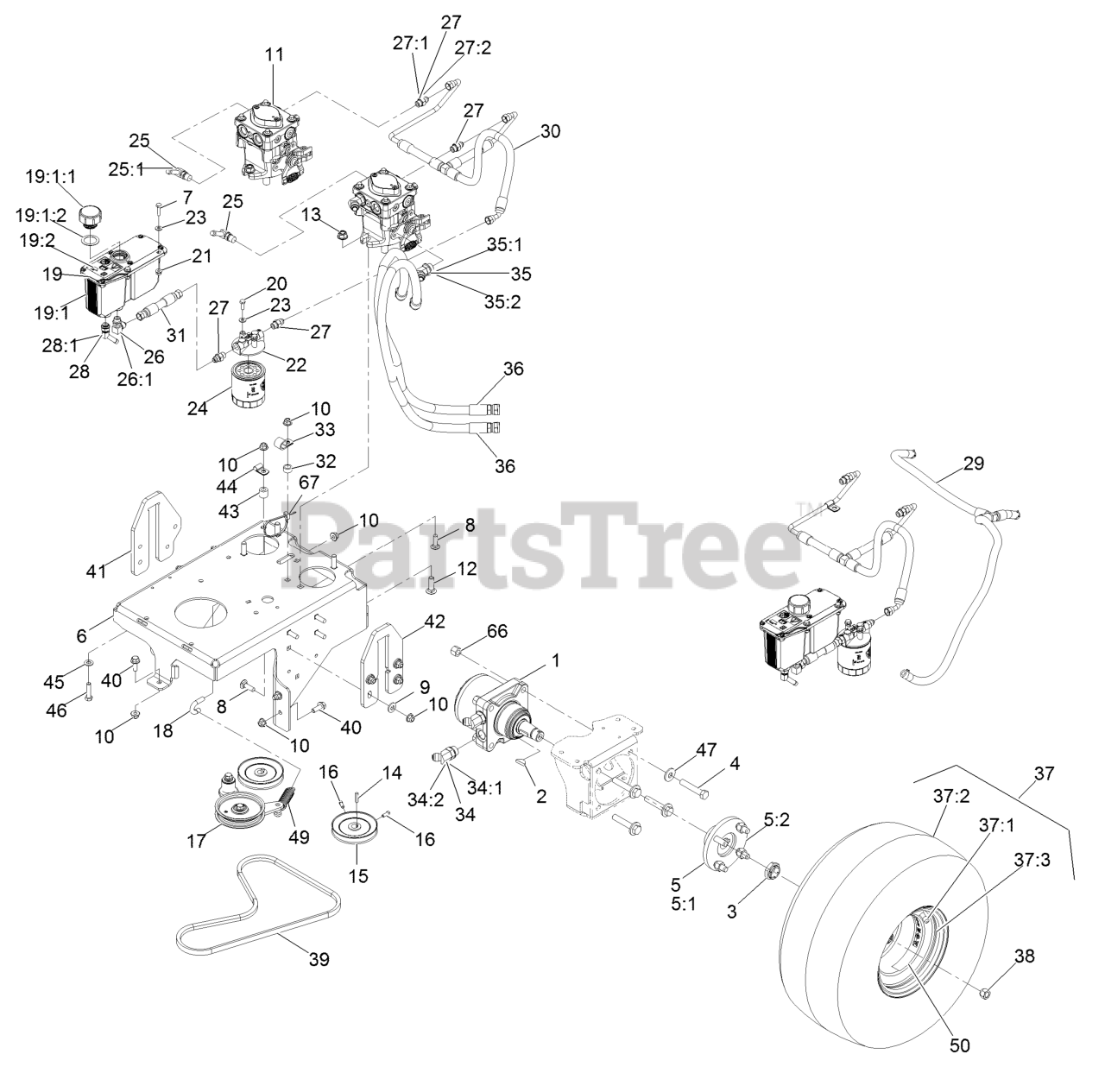

Ground Drive Assembly Parts Diagram

  • Title

1

Exmark 126-0524

Motor-Wheel

$1334.99

$

Usually ships in 3-6 days

0

2

Exmark 3257-8

Key-Woodruff

$5.49

$

In Stock, Qty 5

0

3

Exmark 116-1399

Locknut

$14.99

$

In Stock, only 1 left!

0

4

Exmark 325-11

Screw-HH

$3.49

$

In Stock, Qty 7

0

5

Exmark 18-3209

Wheel Hub / Stud ASM

$184.99

$

Usually ships in 3-6 days

0

5:1

Exmark 10-6870-03

Hub-Wheel

$159.99

$

Usually ships in 3-6 days

0

5:2

Exmark 10-6830

Stud-Type, Drive

$5.49

$

In Stock, Qty 5

0

6

Exmark 116-8525-01

Base, Engine [red]

$362.99

$

Usually ships in 3-6 days

0

7

Exmark 321-6

Screw-HH

$0.99

$

In Stock, Qty 20+

0

8

Exmark 3231-25

Bolt-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

9

Exmark 98-5975

Washer-Belleville

$3.49

$

In Stock, Qty 20+

0

10

Exmark 104-8301

Nut-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Exmark 116-2572

Pump - Hydraulic

$1354.99

$

Usually ships in 3-6 days

0

12

Exmark 3232-3

Bolt-CARR

$3.49

$

In Stock, Qty 5

0

13

Exmark 114-8417

Nut-HF, NI

$2.49

$

In Stock, Qty 18

0

14

Exmark 1-807272

Key

$5.99

$

In Stock, Qty 9

0

15

Exmark 105-5648

Pulley-Pump

$125.99

$

Usually ships in 3-6 days

0

16

Exmark 3241-5

Screw-Set

$2.49

$

In Stock, only 2 left!

0

17

Exmark 116-9980

Pump Idler ASM

$179.99

$

Usually ships in 3-6 days

0

18

Exmark 116-8526

Anchor, Spring

$16.99

$

Usually ships in 3-6 days

0

19

Exmark 116-2066

Reservoir ASM

$191.99

$

Usually ships in 3-6 days

0

19:1

Reservoir-HYD

$

$

Not available

19:1:1

Exmark 103-1948

Cap-Reservoir, HYD
(Superseded to 103-7615)

$32.99

$

In Stock, Qty 20+

0

19:1:2

Exmark 103-1949

Gasket-Cap
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 20+

0

19:2

Exmark 115-4212

Decal-Warning

$12.99

$

Usually ships in 3-6 days

0

20

Exmark 321-4

Screw-HH

$1.49

$

In Stock, Qty 20+

0

21

Exmark 32128-32

Nut-HHF

$2.99

$

In Stock, Qty 20+

0

22

Exmark 104-7836

Head-Filter

$18.99

$

In Stock, only 3 left!

0

23

Exmark 3256-22

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

24

Exmark 109-4180

Element, Oil Filter

$49.99

$

In Stock, Qty 13

0

25

Exmark 100-4887

Fitting-Elbow, 90

$29.99

$

In Stock, only 1 left!

0

25:1

Exmark 237-42

O-Ring

$3.49

$

In Stock, Qty 20+

0

26

Exmark 103-1802

Fitting-Elbow, 90 DEG

$23.99

$

In Stock, only 2 left!

0

26:1

Exmark 237-42

O-Ring

$3.49

$

In Stock, Qty 20+

0

27

Exmark 103-2156

Fitting-Straight

$42.99

$

In Stock, only 3 left!

0

27:1

Exmark 1-603921

O-Ring
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

27:2

Exmark 103-1020

O-Ring

$1.49

$

Usually ships in 3-6 days

0

28

Exmark 103-1807

Fitting-Barbed, 45 DEG

$28.99

$

Usually ships in 3-6 days

0

28:1

Exmark 237-42

O-Ring

$3.49

$

In Stock, Qty 20+

0

29

Exmark 116-2579

Tank Hose ASM

$45.99

$

Usually ships in 3-6 days

0

30

Exmark 116-2650

Hose Assembly - Charge

$154.99

$

Usually ships in 3-6 days

0

31

Exmark 116-2604

HYD Hose ASM

$22.99

$

Usually ships in 3-6 days

0

32

Exmark 1-653069

Spacer-Wheel

$12.99

$

Usually ships in 3-6 days

0

33

Exmark 1-633396

Clip-Loom

$5.49

$

Usually ships in 3-6 days

0

34

Exmark 1-523222

Fitting-HYD, 45 DEG

$63.99

$

Usually ships in 3-6 days

0

34:1

Exmark 1-603919

O-Ring

$3.49

$

In Stock, Qty 20+

0

34:2

Exmark 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

35

Exmark 1-523221

Fitting-HYD, 45 DEG

$49.99

$

Usually ships in 3-6 days

0

35:1

Exmark 1-603920

O-Ring

$3.99

$

In Stock, Qty 20+

0

35:2

Exmark 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

36

Exmark 116-6902

HYD Hose ASM

$110.99

$

In Stock, only 4 left!

0

37

Exmark 120-6465

Wheel/Tire ASM

$285.99

$

Usually ships in 3-6 days

0

37:1

Exmark 116-4605

Rim-8 Inch

$108.99

$

Usually ships in 3-6 days

0

37:2

Exmark 120-6466

Tire

$131.99

$

Usually ships in 3-6 days

0

37:3

Exmark 232-27

Stem-Valve

$

$

Not available

38

Exmark 242-50

Nut-Lug
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

39

Exmark 114567

Belt-V, Lower PTO
(Superseded to 114567-SL)

$34.99

$

Usually ships in 3-6 days

0

40

Exmark 3234-42

Screw-HHF

$3.49

$

In Stock, Qty 20+

0

41

Exmark 116-4922

Plate-Lift, RH

$80.99

$

Usually ships in 3-6 days

0

42

Exmark 116-3546

Plate, Lift LH

$82.99

$

Usually ships in 3-6 days

0

43

Exmark 121-1760

Spacer

$2.49

$

In Stock, only 2 left!

0

44

Exmark 116-3362

Clip-Tube

$5.49

$

Usually ships in 3-6 days

0

45

Exmark 3256-24

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

46

Exmark 323-8

Screw-HH

$1.49

$

In Stock, Qty 20+

0

47

Exmark 1-513435

Washer-Spring

$5.49

$

In Stock, Qty 20+

0

49

Exmark 108-4056

Spring-Extension

$8.49

$

In Stock, Qty 20+

0

50

Exmark 126-2055

Decal-Torque, Wheel Hub Lug

$6.49

$

In Stock, Qty 11

0

66

Exmark 3296-23

Nut-Lock, NI

$1.49

$

In Stock, Qty 20+

0

67

Exmark 3290-378

Tie-Cable

$0.99

$

In Stock, Qty 8
