VTS691CKA48400 - Exmark 48" Vantage S-Series Stand-On Mower, Kawasaki FX691V (SN: 402082300 - 404314158) (2018) Deck Assembly Parts Diagram

48" Vantage S-Series Stand-On Mower, Kawasaki FX691V

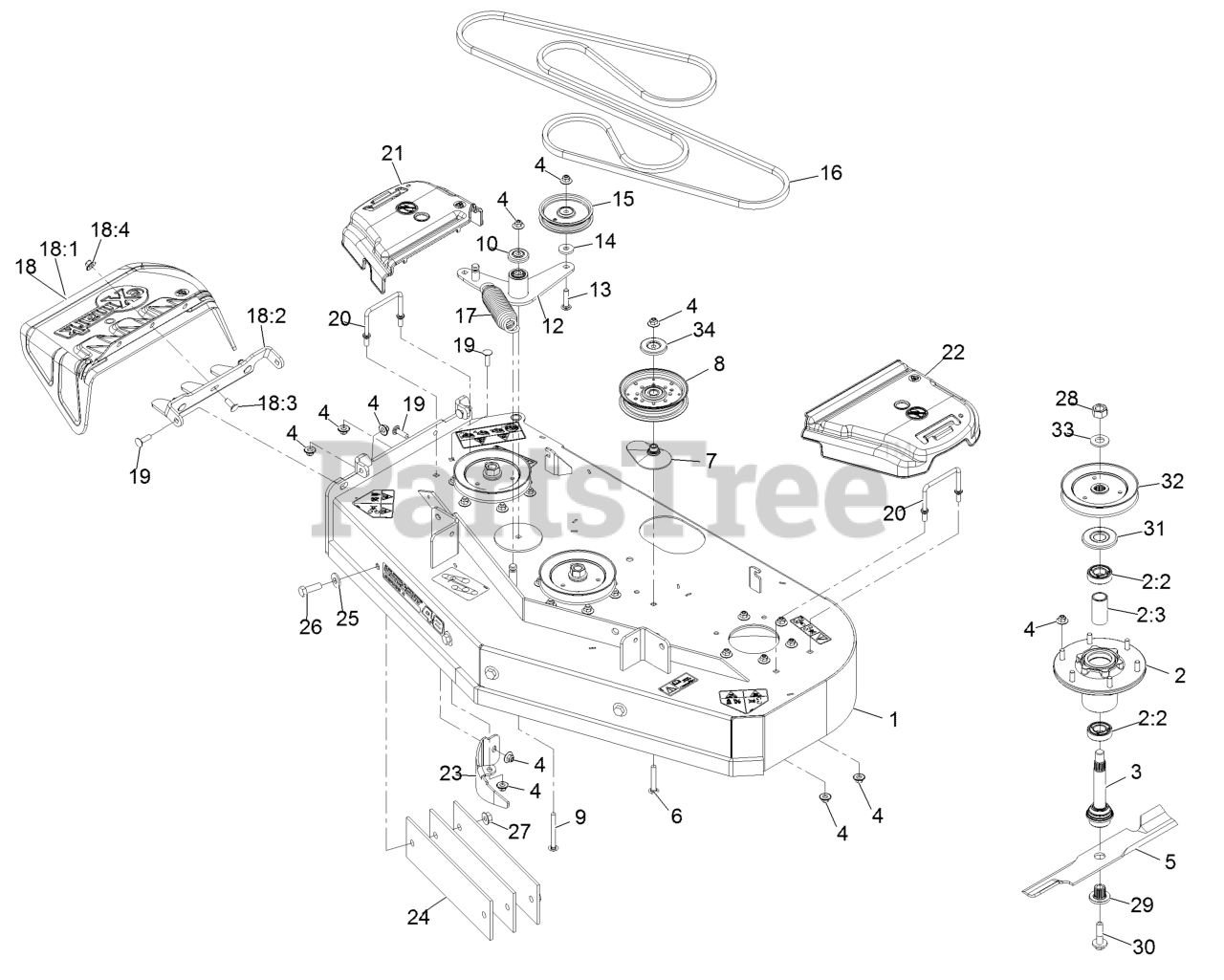

Deck Assembly Parts Diagram

  • Title

1

Exmark 116-3999

Deck ASM-484

$2702.99

$

Usually ships in 3-6 days

0

2

Exmark 116-3344

ASM-Cutter Hsg With Bearings

$158.99

$

In Stock, Qty 20+

0

2:2

Exmark 116-0720

Bearing-Ball

$22.99

$

In Stock, Qty 20+

0

2:3

Exmark 116-3312

Spacer-Bearing

$9.49

$

In Stock, Qty 5

0

3

Exmark 116-3341

ASM-Spindle And Seal

$89.99

$

In Stock, Qty 20+

0

4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

5

Exmark 103-6401

Blade-Notched
(Superseded to 103-6401-S)

$30.99

$

In Stock, Qty 20+

0

5

Exmark 116-5177

Blade-Extreme 2, 16.25"
(Superseded to 116-5177-S)

$31.99

$

In Stock, Qty 20+

0

5

Exmark 103-6391

Blade, Mulching
(Superseded to 103-6391-S)

$31.99

$

In Stock, Qty 20+

0

5

Exmark 103-6386

Blade, Low Lift
(Superseded to 103-6386-S)

$30.99

$

In Stock, Qty 20+

0

5

Exmark 103-6381

Blade, Solid
(Superseded to 103-6381-S)

$34.99

$

In Stock, Qty 20+

0

6

Exmark 3231-44

Bolt-Carriage 3/8-16 X 2 1/2

$2.99

$

In Stock, Qty 14

0

7

Exmark 109-2872

Spacer-Pulley

$22.99

$

In Stock, only 2 left!

0

8

Exmark 126-9187

Idler-Pulley, Flat 5.00X0.95

$60.99

$

In Stock, Qty 19

0

9

Exmark 3231-11

Bolt-Carriage 3/8-16 X 3 1/2

$5.49

$

In Stock, only 2 left!

0

10

Exmark 103-2916

Guard-Top

$2.99

$

In Stock, Qty 9

0

12

Exmark 116-3806

Idler Arm ASM W/Bearings

$242.99

$

Usually ships in 3-6 days

0

13

Exmark 116-3381

Bolt-Carriage 3/8-16 X 1 3/4

$2.99

$

Usually ships in 3-6 days

0

14

Exmark 1-373034

Washer

$3.49

$

In Stock, Qty 20+

0

15

Exmark 93-1622

Pulley-Idler

$42.99

$

In Stock, only 3 left!

0

16

Exmark 99-4627

V-Belt
(Superseded to 99-4627-SL)

$180.99

$

Usually ships in 3-6 days

0

17

Exmark 116-6317

Spring-Extension

$28.99

$

In Stock, Qty 7

0

18

Exmark 109-7188

ASM,Discharge Chute

$104.99

$

In Stock, only 2 left!

0

18:1

Exmark 109-2738

Chute, Discharge

$74.99

$

In Stock, Qty 20+

0

18:2

Exmark 109-8675-01

Bracket,Discharge Chute

$51.99

$

In Stock, only 1 left!

0

18:3

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

18:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

19

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

20

Exmark 109-6982

Wireform-Cover

$11.99

$

In Stock, only 4 left!

0

21

Exmark 109-6935

Cover-Belt, RH

$38.99

$

In Stock, only 1 left!

0

22

Exmark 109-6936

Cover-Belt, LH

$38.99

$

In Stock, only 1 left!

0

23

Exmark 116-5995-01

Baffle-Dogleg,Lzs Lzx Vt48

$62.99

$

Usually ships in 3-6 days

0

24

Exmark 116-1822-01

Bar,Weight

$57.99

$

Usually ships in 3-6 days

0

25

Exmark 1-513435

Washer-Spring Disc 1/2

$5.49

$

In Stock, Qty 13

0

26

Exmark 325-6

Screw-HH 1/2-13 X 1 1/2

$3.49

$

In Stock, only 4 left!

0

27

Exmark 32128-49

Nut-Whizlock 1/2-13

$1.99

$

In Stock, Qty 20+

0

28

Exmark 116-7306

Nut-Hex

$2.99

$

In Stock, Qty 20+

0

29

Exmark 103-3037

Bushing, Splined

$22.99

$

In Stock, Qty 20+

0

30

Exmark 109-9220

Screw-Sems 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

31

Exmark 116-1286

Guard,Bearing Top .989

$5.49

$

In Stock, Qty 20+

0

32

Exmark 116-0674

Sheave,Blade Drive 5.90

$76.99

$

In Stock, only 1 left!

0

33

Exmark 103-2802

Washer-Spring Disc 3/4

$5.49

$

In Stock, Qty 14

0

34

Exmark 126-8043

Shield-Dust

$2.99

$

In Stock, only 2 left!
