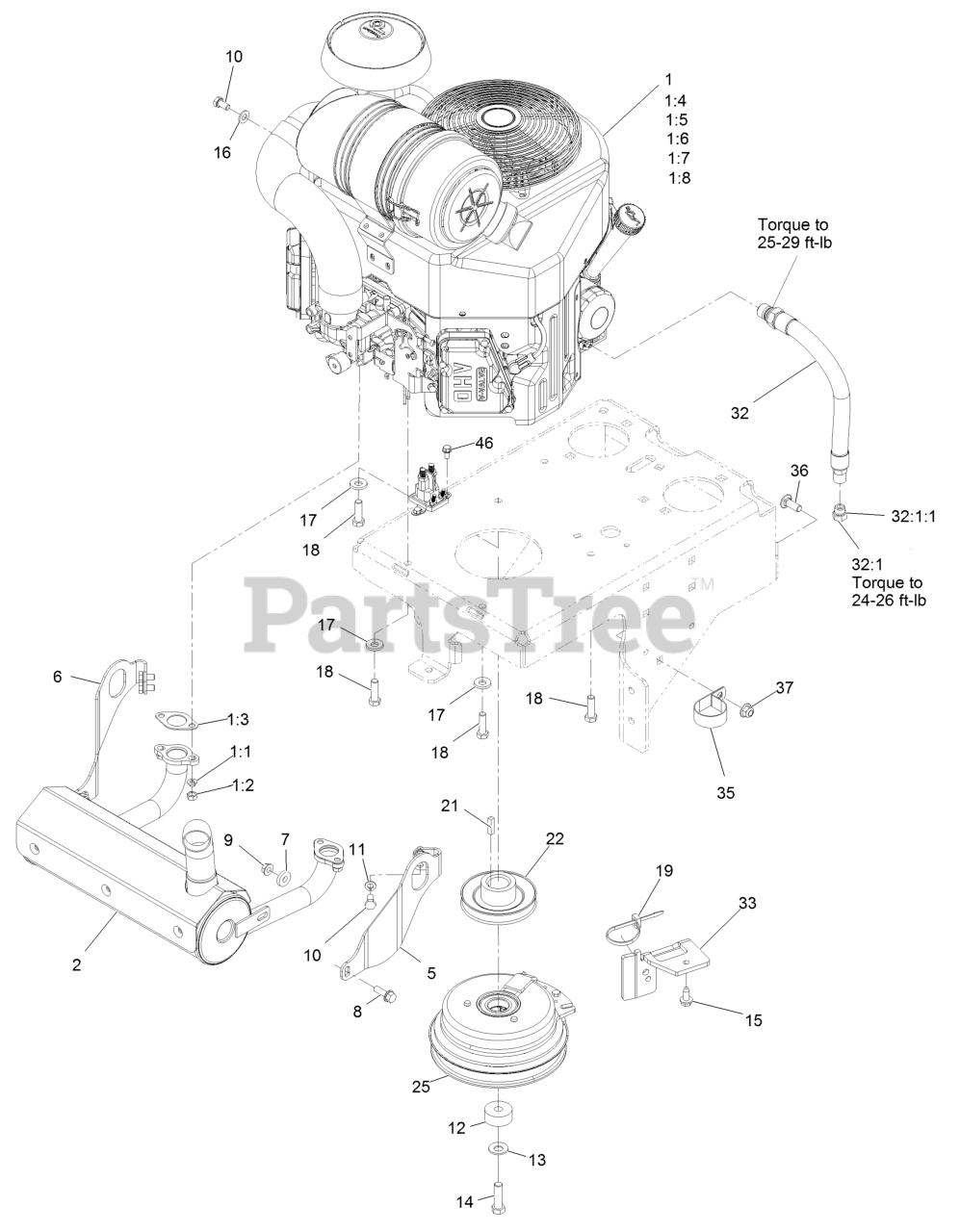

VTS691CKA48400 - Exmark 48" Vantage S-Series Stand-On Mower, Kawasaki FX691V (SN: 400000000 - 402082299) (2017) Engine Assembly Parts Diagram

48" Vantage S-Series Stand-On Mower, Kawasaki FX691V

Engine Assembly Parts Diagram

  • Title

1

Engine-Kawasaki, Fx691V

Note: Not serviced separately - Obtain parts from www.kawpowerepc.com

$

$

Not available

1:1

Exmark 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 6

0

1:2

Exmark 114-3549

NUT

$1.99

$

In Stock, Qty 20+

0

1:3

Exmark 1-653313

GASKET-EXHAUST

$4.99

$

Usually ships in 3-6 days

0

1:4

Exmark 119-5852

FILTER-OIL
(Superseded to 49065-0721)

$18.99

$

In Stock, Qty 20+

0

1:5

Exmark 92-2153

SPARK PLUG

Note: Not illustrated

$4.99

$

In Stock, Qty 7

0

1:6

Exmark 119-5944

ELEMENT-FILTER, AIR (OUTE

$47.99

$

Usually ships in 3-6 days

0

1:7

Exmark 119-5945

ELEMENT-FILTER, AIR (INNE

$53.99

$

In Stock, only 2 left!

0

1:8

Exmark 125-6445

Filter-Fuel

Note: Not illustrated

$

$

Currently unavailable

2

Exmark 116-8747

MUFFLER, KAWASAKI, 22-26

$395.99

$

In Stock, only 1 left!

0

5

Exmark 116-2353

BRACKET-MUFFLER MOUNT, LH

$70.99

$

In Stock, only 1 left!

0

6

Exmark 116-2354

BRACKET-MUFFLER MOUNT, RH

$70.99

$

In Stock, only 1 left!

0

7

Exmark 104-7658

SPACER

$1.49

$

In Stock, only 2 left!

0

8

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

9

Exmark 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

10

Exmark 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

11

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12

Exmark 103-0152

KEEPER-CLUTCH

$12.99

$

In Stock, only 1 left!

0

13

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

14

Exmark 3212-6

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$2.49

$

In Stock, only 1 left!

0

15

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

16

Exmark 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

17

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

18

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

19

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

21

Exmark 1-807259

KEY

$2.99

$

In Stock, only 2 left!

0

22

Exmark 116-3882

PULLEY

$118.99

$

Usually ships in 3-6 days

0

25

Exmark 116-8517

CLUTCH-200 FT-LB, 1.125 B

$653.99

$

Usually ships in 3-6 days

0

32

Exmark 116-4924

ENGINE OIL DRAIN HOSE ASM

$37.99

$

In Stock, Qty 5

0

32:1

Exmark 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$8.49

$

In Stock, only 1 left!

0

32:1:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

33

Exmark 116-3811-01

BRACKET-ANCHOR, CLUTCH

$38.99

$

Usually ships in 3-6 days

0

35

Exmark 2412-147

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0

36

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

37

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

46

Exmark 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0
