VTS541KA363CA - Exmark 36" Vantage S-Series Stand-On Mower, Kawasaki, CARB (SN: 314000000 - 314999999) (2014) Deck Lift Assembly Parts Diagram

36" Vantage S-Series Stand-On Mower, Kawasaki, CARB

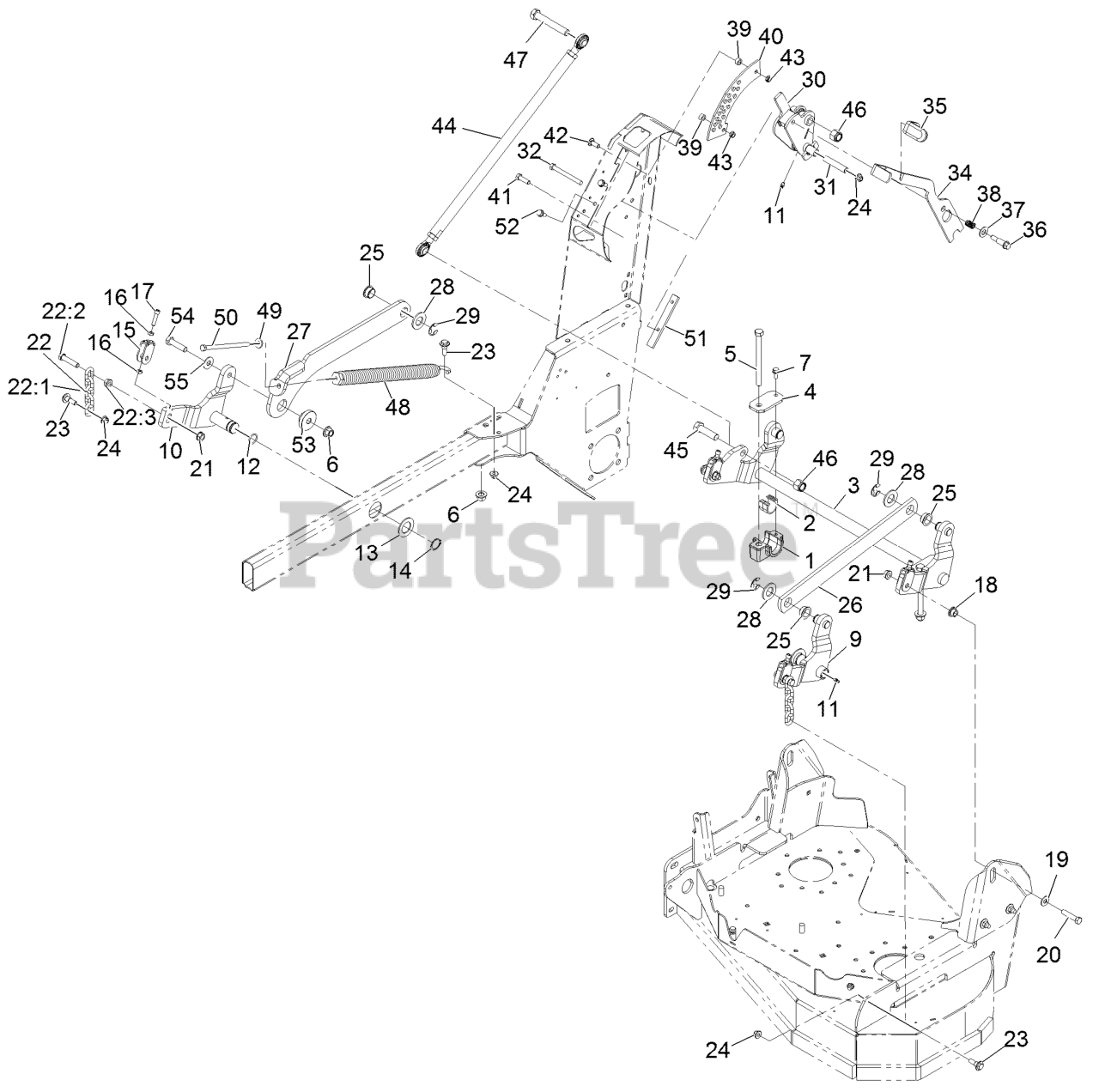

Deck Lift Assembly Parts Diagram

  • Title
1

Exmark 116-4638-01

SUPPORT-BEARING

$80.99

$

Usually ships in 3-6 days

0

2

Exmark 109-9410

BEARING-CROSS SHAFT, FRON

$5.49

$

In Stock, Qty 20+

0

3

Exmark 116-3725-01

REAR CROSSSHAFT ASM

$345.99

$

Usually ships in 3-6 days

0

4

Exmark 116-3733-01

COVER-BEARING SUPPORT

$8.99

$

Usually ships in 3-6 days

0

5

Exmark 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

6

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

7

Exmark 100-1668

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

9

Exmark 116-4663-01

DECKLIFT ARM ASM-LH

$147.99

$

Usually ships in 3-6 days

0

10

Exmark 116-4664-01

DECKLIFT ARM ASM-RH

$147.99

$

Usually ships in 3-6 days

0

11

Exmark 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

12

Exmark 237-77

O RING

$2.99

$

Usually ships in 3-6 days

0

13

$3.99

$

Usually ships in 3-6 days

0

14

Exmark 32120-2

RING-RETAINING

$6.49

$

Usually ships in 3-6 days

0

15

Exmark 109-9066

YOKE-ADJUST, DECK

$7.99

$

In Stock, Qty 5

0

16

Exmark 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

17

Exmark 3274-18

SCREW-HSH

$9.49

$

In Stock, Qty 7

0

18

Exmark 116-2428

BUSHING-FLANGED

$12.99

$

In Stock, Qty 11

0

19

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

20

Exmark 109-9065

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

21

$4.49

$

In Stock, Qty 17

0

22

Exmark 116-0756

DECK LIFT CHAIN ASM

$14.99

$

In Stock, Qty 8

0

22:1

Exmark 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 16

0

22:2

Exmark 109-9065

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

22:3

$4.49

$

In Stock, Qty 17

0

23

Exmark 109-9840

SCREW-SHOULDER, HHF

$5.49

$

In Stock, Qty 20+

0

24

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

25

Exmark 116-2909

BEARING-FLANGE

$7.99

$

In Stock, only 1 left!

0

26

Exmark 116-3972-03

LINK-DECKLIFT, LH

$81.99

$

Usually ships in 3-6 days

0

27

Exmark 116-4661-03

LINK-DECKLIFT, RH

$117.99

$

Usually ships in 3-6 days

0

28

Exmark 3256-29

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

29

Exmark 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

0

30

Exmark 116-5602

ASM-HOC HANDLE

$129.99

$

Usually ships in 3-6 days

0

31

Exmark 116-4021

BEARING-HOC PIVOT

$7.99

$

Usually ships in 3-6 days

0

32

Exmark 323-42

SCREW-HH

$8.49

$

In Stock, only 3 left!

0

34

Exmark 114-1878-03

LEVER-HOC

$121.99

$

In Stock, Qty 6

0

35

Exmark 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 3 left!

0

36

Exmark 66-0561

SCREW-SHOULDER

$5.99

$

In Stock, only 1 left!

0

37

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

38

$4.99

$

In Stock, Qty 18

0

39

Exmark 111044

SPACER

$1.49

$

In Stock, Qty 20+

0

40

Exmark 116-3971

BRACKET-HOC

$37.99

$

Usually ships in 3-6 days

0

41

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

42

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

43

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

44

Exmark 116-3975

HOC LINK ASM

$167.99

$

Usually ships in 3-6 days

0

45

Exmark 327-22

SCREW-HH

$13.99

$

Usually ships in 3-6 days

0

46

Exmark 3296-53

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

47

Exmark 327-29

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

48

Exmark 116-0886

SPRING-EXTENSION

$136.99

$

Usually ships in 3-6 days

0

49

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

50

Exmark 323-58

BOLT-TAP, HH

$5.49

$

Usually ships in 3-6 days

0

51

Exmark 116-3124

SKID-HANDLE, LIFT

$23.99

$

Usually ships in 3-6 days

0

52

Exmark 32144-11

SCREW-THD ROLL, HWH

$7.99

$

In Stock, Qty 6

0

53

Exmark 116-4702

BUSHING-FLANGED

$37.99

$

Usually ships in 3-6 days

0

54

Exmark 325-8

SCREW-HH

$5.49

$

In Stock, Qty 17

0

55

Exmark 3256-5

WASHER-FLAT

$0.99

$

In Stock, Qty 9

0
