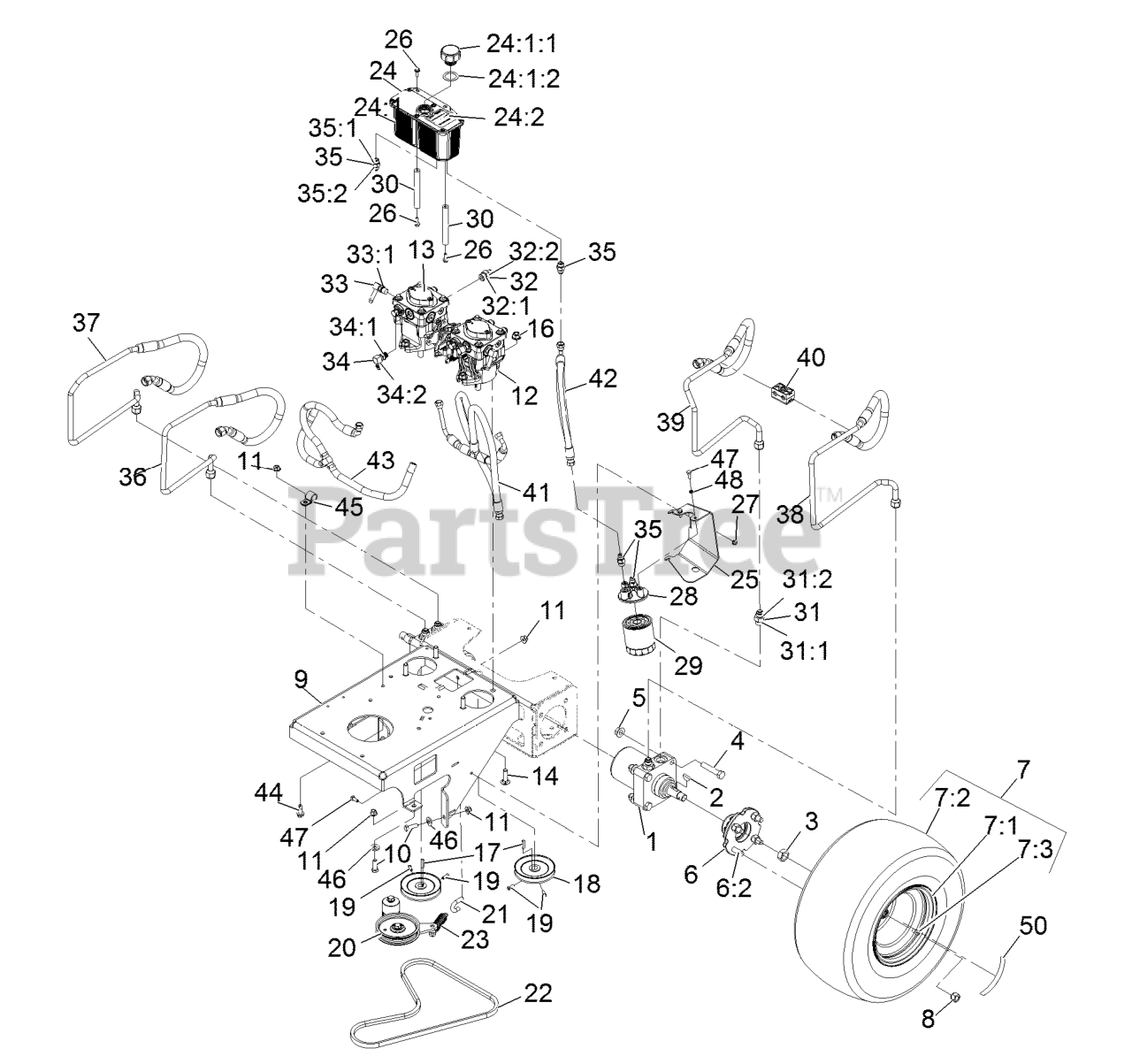

VTS541KA363CA - Exmark 36" Vantage S-Series Stand-On Mower, Kawasaki, CARB (SN: 313000000 - 313999999) (2013) Ground Drive Assembly Parts Diagram

36" Vantage S-Series Stand-On Mower, Kawasaki, CARB

Ground Drive Assembly Parts Diagram

  • Title

1

Exmark 104-1171

HYD MOTOR ASM

$1262.99

$

Usually ships in 3-6 days

0

2

Exmark 3257-8

KEY-WOODRUFF

$5.49

$

In Stock, Qty 5

0

3

Exmark 85-7310

NUT-MOTOR, WHEEL

$27.99

$

Usually ships in 3-6 days

0

4

Exmark 325-10

SCREW-HH

$5.49

$

In Stock, Qty 6

0

5

Exmark 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

6

Exmark 105-0800

WHEEL HUB ASM

$248.99

$

In Stock, only 1 left!

0

6:2

Exmark 10-6830

STUD-TYPE, DRIVE

$5.49

$

In Stock, Qty 5

0

7

Exmark 116-4587

WHEEL/TIRE ASM

$255.99

$

Usually ships in 3-6 days

0

7:1

Exmark 116-4605

RIM-8 INCH

$108.99

$

Usually ships in 3-6 days

0

7:2

Exmark 116-4606

TIRE

$173.99

$

Usually ships in 3-6 days

0

7:3

Exmark 232-27

Stem-Valve

$

$

Not available

8

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

9

Exmark 116-8745-01

BASE, ENGINE

$362.99

$

Usually ships in 3-6 days

0

10

Exmark 323-18

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

11

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 116-2572

PUMP - HYDRAULIC

$1354.99

$

Usually ships in 3-6 days

0

13

Exmark 116-4635

PUMP-HYDRAULIC

$1357.99

$

Usually ships in 3-6 days

0

14

Exmark 323-23

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

16

Exmark 114-8417

NUT-HF, NI

$2.49

$

In Stock, Qty 18

0

17

Exmark 1-807272

KEY

$5.99

$

In Stock, Qty 9

0

18

Exmark 105-5648

PULLEY-PUMP

Note: Apply anti-seize compound in bore.

$125.99

$

Usually ships in 3-6 days

0

19

Exmark 3241-5

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$2.49

$

In Stock, only 2 left!

0

20

Pump Idler Asm

Note: Not serviced separately

$

$

Not available

21

Exmark 116-8526

ANCHOR, SPRING

$16.99

$

Usually ships in 3-6 days

0

22

Exmark 119-0174

BELT-V
(Superseded to 119-0174-SL)

$44.99

$

Usually ships in 3-6 days

0

23

Exmark 108-4056

SPRING-EXTENSION

$8.49

$

In Stock, Qty 20+

0

24

Exmark 116-2066

RESERVOIR ASM

Note: Use Exmark Premium Hydro Oil P/N 109-9828 (32oz)

$191.99

$

Usually ships in 3-6 days

0

24:1

Reservoir-Hyd

Note: Not serviced separately

$

$

Not available

24:1:1

Exmark 103-1948

Cap-Reservoir, HYD
(Superseded to 103-7615)

$32.99

$

In Stock, Qty 20+

0

24:1:2

Exmark 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 20+

0

24:2

Exmark 116-0404

DECAL-HYDRAULIC TANK

$1.99

$

In Stock, Qty 15

0

25

Exmark 116-4319-01

PLATE-FILTER MOUNT

$49.99

$

Usually ships in 3-6 days

0

26

Exmark 117-8304

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

27

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

28

Exmark 103-2888

HEAD-FILTER

$88.99

$

Usually ships in 3-6 days

0

29

Exmark 109-4180

FILTER-25 MICRON, BI-DIRE

$49.99

$

In Stock, Qty 13

0

30

Exmark 116-4343

ROD-RESERVOIR STAND

$19.99

$

Usually ships in 3-6 days

0

31

Exmark 1-603991

FITTING-STRAIGHT

$21.99

$

In Stock, only 4 left!

0

31:1

Exmark 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

31:2

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

32

Exmark 1-603990

FITTING-STRAIGHT

$18.99

$

In Stock, Qty 12

0

32:1

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

32:2

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

33

Exmark 100-4887

FITTING-ELBOW, 90

$29.99

$

In Stock, only 1 left!

0

33:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

34

Exmark 103-2155

FITTING-90 DEG

$29.99

$

Usually ships in 3-6 days

0

34:1

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

34:2

Exmark 103-1020

O-RING

$1.49

$

Usually ships in 3-6 days

0

35

Exmark 103-2156

FITTING-STRAIGHT

$42.99

$

In Stock, only 3 left!

0

35:1

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

35:2

Exmark 103-1020

O-RING

$1.49

$

Usually ships in 3-6 days

0

36

Exmark 116-5526

HOSE-HARDLINE

$168.99

$

Usually ships in 3-6 days

0

37

Exmark 116-5525

HOSE-HARDLINE

$191.99

$

Usually ships in 3-6 days

0

38

Exmark 116-5523

HOSE-HARDLINE

$168.99

$

Usually ships in 3-6 days

0

39

Exmark 116-5524

HOSE-HARDLINE

$191.99

$

Usually ships in 3-6 days

0

40

Exmark 116-5804

CLAMP, STAUFF 212,7/12,7

$21.99

$

In Stock, only 1 left!

0

41

Exmark 116-5145

HOSE-ASM CHARGE

$106.99

$

Usually ships in 3-6 days

0

42

Exmark 116-4252

HOSE ASM-HYD LP 3/8X14.4

$43.99

$

Usually ships in 3-6 days

0

43

Exmark 116-5460

HOSE ASM - HYD 3/8

$76.99

$

Usually ships in 3-6 days

0

44

Exmark 105-6245

SCREW-TAPPING

$6.49

$

Usually ships in 3-6 days

0

45

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

46

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

47

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

48

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 14

0

50

Exmark 116-4181

126-2130
(Superseded to 126-2130)

$9.49

$

Usually ships in 3-6 days

0
