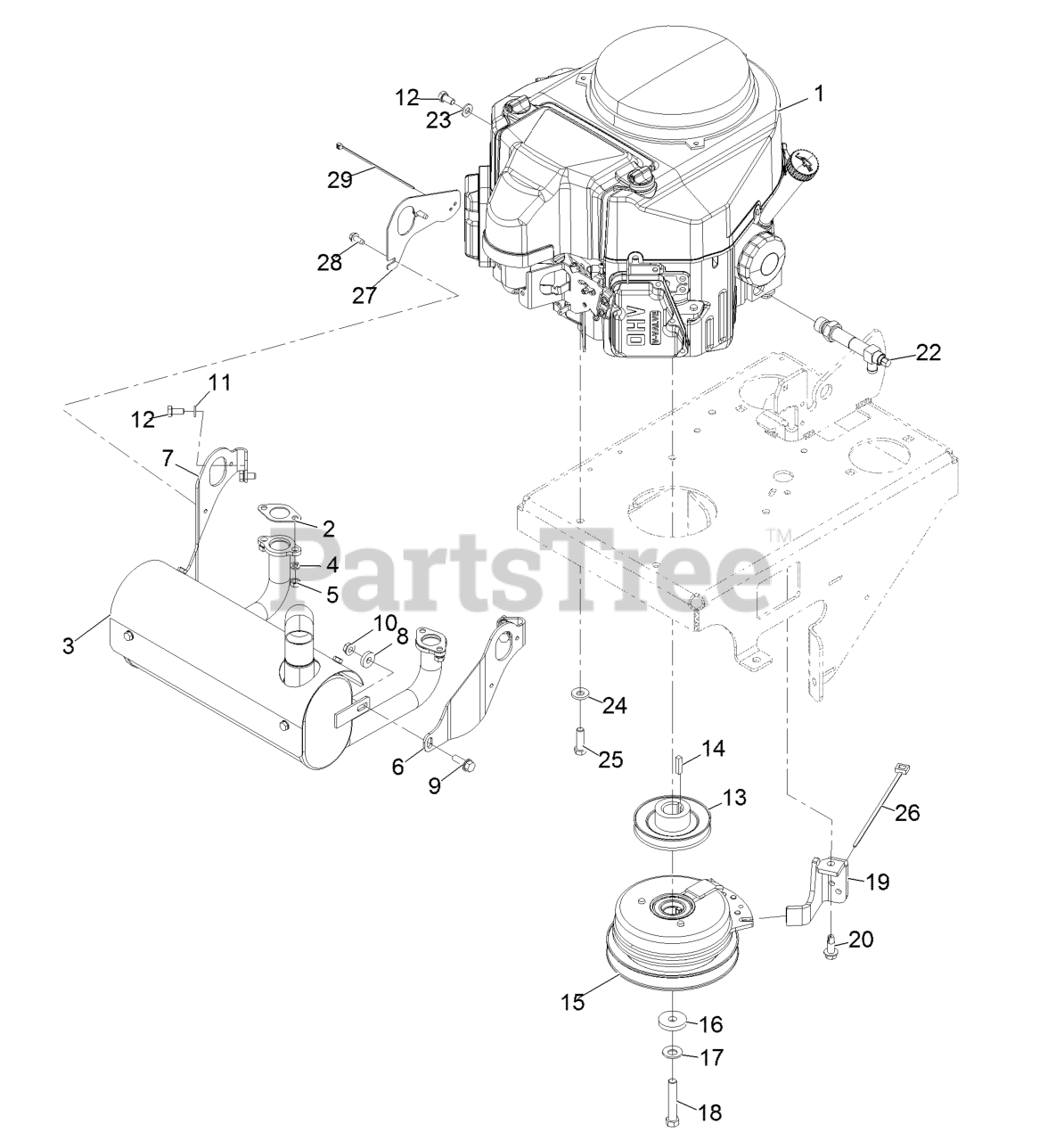

  • Title
1

Engine-Kawasaki, Fs541v

Note: Not serviced separately, Obtain parts from www.kawpowerepc.com

$

$

Not available

2

Exmark 1-653313

GASKET-EXHAUST

$5.49

$

Usually ships in 3-6 days

0

3

Exmark 116-2351

132-1547
(Superseded to 132-1547)

$322.99

$

In Stock, only 1 left!

0

4

Exmark 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

$1.99

$

In Stock, Qty 20+

0

6

Exmark 116-4752

BRACKET-MUFFLER MOUNT, LH

$38.99

$

Usually ships in 3-6 days

0

7

Exmark 116-4750

BRACKET-MUFFLER MOUNT, RH

$38.99

$

Usually ships in 3-6 days

0

8

$1.49

$

In Stock, only 2 left!

0

9

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

10

$3.49

$

In Stock, Qty 12

0

11

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12

Exmark 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

13

Exmark 116-3610

PULLEY

Note: Apply anti-seize compound in bore.

$80.99

$

Usually ships in 3-6 days

0

$2.49

$

In Stock, Qty 20+

0

15

Exmark 116-4395

CLUTCH-175 FT-LB

Note: Apply anti-seize compound in bore.

$509.99

$

Usually ships in 3-6 days

0

16

Exmark 107-4136

WASHER
(Superseded to 1-543610)

$6.49

$

In Stock, Qty 16

0

17

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

18

Exmark 3212-10

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$6.49

$

In Stock, Qty 11

0

19

Exmark 116-3565-01

ANCHOR-CLUTCH

$27.99

$

Usually ships in 3-6 days

0

20

Exmark 105-6245

SCREW-TAPPING

$6.49

$

Usually ships in 3-6 days

0

22

Exmark 116-6126

DRAIN-OIL, VALVE, KAW

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$67.99

$

Usually ships in 3-6 days

0

23

Exmark 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

24

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

25

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

26

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

27

Exmark 116-4751

GUARD-CABLE, SPARK PLUG

$26.99

$

Usually ships in 3-6 days

0

28

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

29

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

99

Exmark 103-1964

HOSE-DRAIN, OIL

Note: Not illustrated

$11.99

$

In Stock, only 2 left!

0
