VTS541KA363CA - Exmark 36" Vantage S-Series Stand-On Mower, Kawasaki, CARB (SN: 313000000 - 313999999) (2013) Deck Assembly Parts Diagram

36" Vantage S-Series Stand-On Mower, Kawasaki, CARB

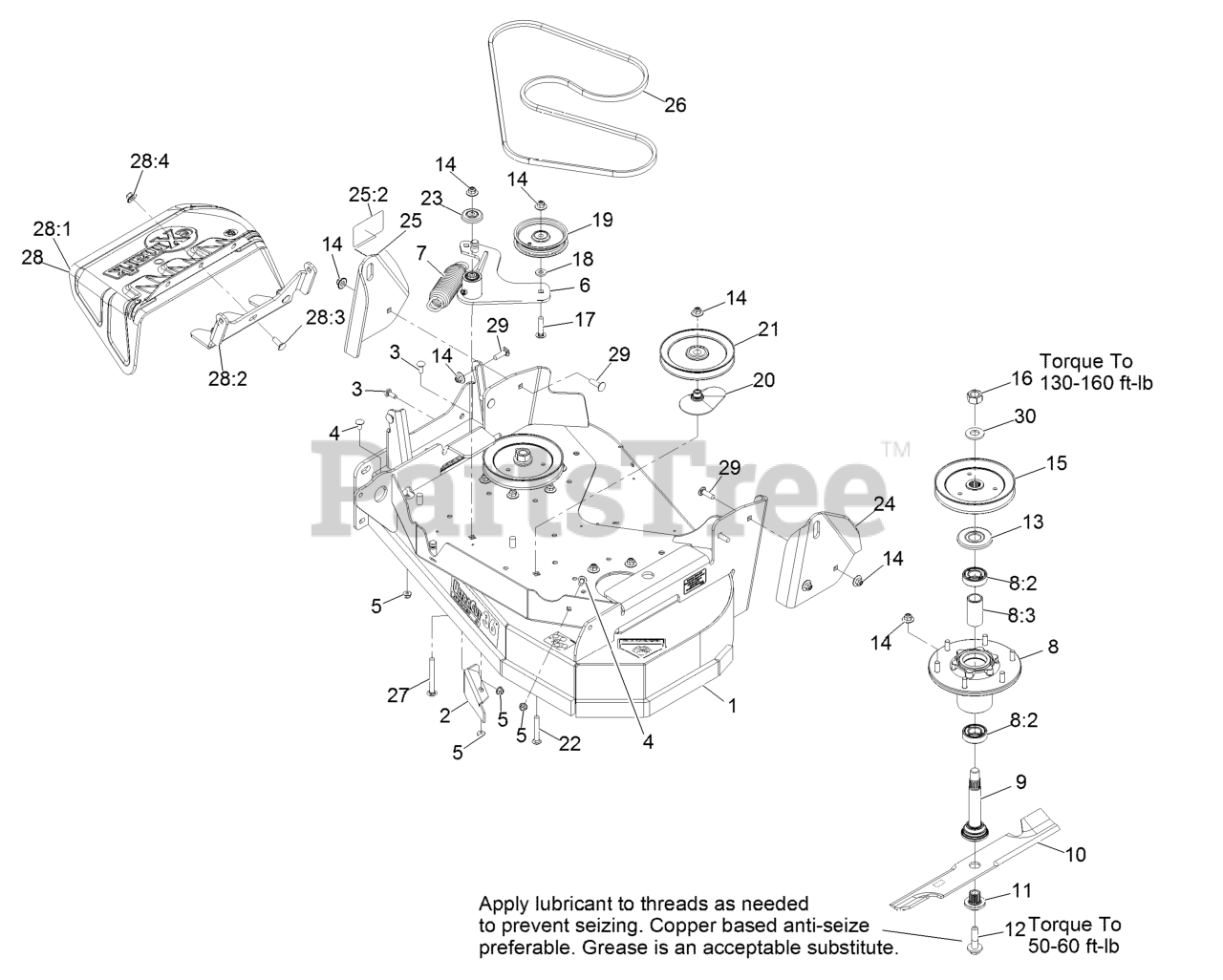

Deck Assembly Parts Diagram

  • Title

1

Exmark 116-3662

DECK ASM - 36

$2567.99

$

Usually ships in 3-6 days

0

2

Exmark 116-4244-01

BAFFLE-DOGLEG

$20.99

$

Usually ships in 3-6 days

0

3

Exmark 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

4

Exmark 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

0

5

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

6

Exmark 116-3680

IDLER ARM ASM -

$242.99

$

Usually ships in 3-6 days

0

7

Exmark 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 7

0

8

Exmark 116-3344

ASM-CUTTER HSG WITH BEARINGS

$158.99

$

In Stock, Qty 20+

0

8:2

Exmark 116-0720

BEARING-BALL

$22.99

$

In Stock, Qty 20+

0

8:3

Exmark 116-3312

SPACER-BEARING

$9.49

$

In Stock, Qty 5

0

9

Exmark 116-3342

ASM-SPINDLE AND SEAL

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$85.99

$

In Stock, only 1 left!

0

10

Exmark 103-6382

103-6382-S
(Superseded to 103-6382-S)

$36.99

$

In Stock, only 4 left!

0

10

Exmark 103-6387

103-6387-S
(Superseded to 103-6387-S)

$31.99

$

In Stock, Qty 11

0

10

Exmark 103-6392

103-6392-S
(Superseded to 103-6392-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$30.99

$

In Stock, Qty 20+

0

10

Exmark 103-6397

116-5175-S
(Superseded to 116-5175-S)

$30.99

$

In Stock, Qty 20+

0

10

Exmark 103-6402

103-6402-S
(Superseded to 103-6402-S)

$30.99

$

In Stock, Qty 20+

0

11

Exmark 103-3037

BUSHING,SPLINED

$22.99

$

In Stock, Qty 20+

0

12

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

13

Exmark 116-1286

GUARD,BEARING TOP .989

$5.49

$

In Stock, Qty 9

0

14

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

15

Exmark 116-0675

SHEAVE,BLADE DRIVE 6.50

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$92.99

$

In Stock, Qty 20+

0

16

Exmark 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 9

0

17

Exmark 3231-5

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

18

Exmark 43-0940

SPACER

$5.49

$

In Stock, Qty 20+

0

19

Exmark 93-1622

PULLEY-IDLER

$42.99

$

In Stock, only 3 left!

0

20

Exmark 109-2872

SPACER-PULLEY

$22.99

$

In Stock, only 2 left!

0

21

Exmark 116-3592

PULLEY-IDLER

$111.99

$

Usually ships in 3-6 days

0

22

Exmark 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 20+

0

23

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

24

Exmark 116-3675-01

PUSH-TOWER,LH 36

$63.99

$

Usually ships in 3-6 days

0

25

Exmark 116-4674

PUSH TOWER-RH 36, W/DECAL

$

$

Not available

25:2

Exmark 1-303508

DECAL-WARNING, DISCHARGE

$5.49

$

In Stock, Qty 20+

0

26

Exmark 116-3703

BELT-V
(Superseded to 116-3703-SL)

$61.99

$

In Stock, only 2 left!

0

27

Exmark 116-1502

BOLT-SHOULDER, CARRIAGE 3/8-16 X 3 1/2

$7.99

$

In Stock, only 4 left!

0

28

Exmark 116-4230

CHUTE - DISCHARGE ASM

$212.99

$

Usually ships in 3-6 days

0

28:1

Exmark 109-2738

CHUTE,DISCHARGE

$74.99

$

In Stock, Qty 20+

0

28:2

Exmark 116-4229-01

BRACKET-CHUTE, DISCHARGE

$

$

Not available

28:3

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

28:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

29

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

30

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 14

0
