VTS541CKA36300 - Exmark 36" Vantage S-Series Stand-On Mower, Kawasaki FS541V (SN: 402082300 - 404314158) (2018) Platform Assembly No. 116-3523 Parts Diagram

36" Vantage S-Series Stand-On Mower, Kawasaki FS541V

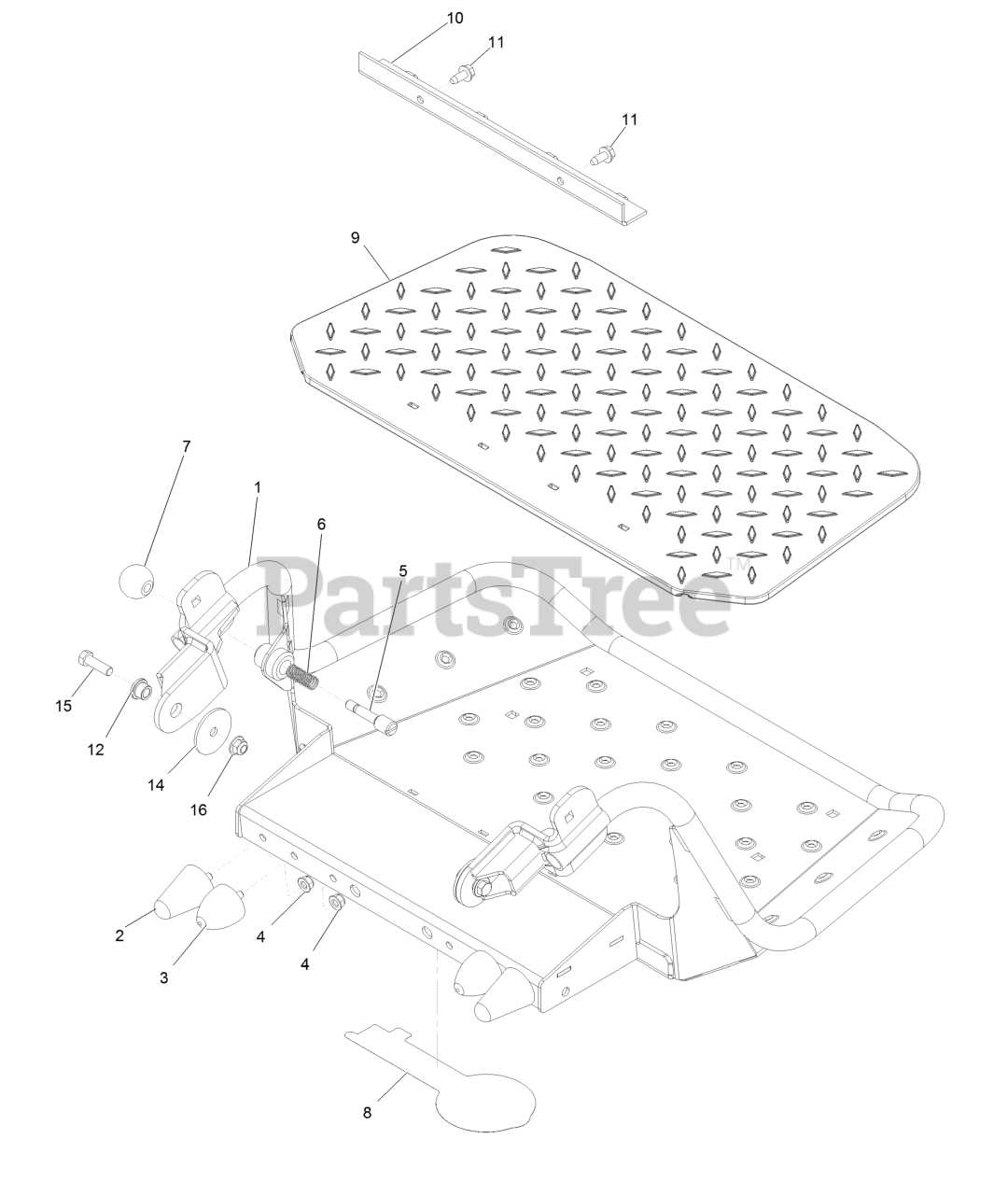

Platform Assembly No. 116-3523 Parts Diagram

  • Title

1

Exmark 132-9403-03

Platform ASM [black]

$662.99

$

Usually ships in 3-6 days

0

2

Exmark 114-1925

Bumper-Rubber

$26.99

$

In Stock, only 3 left!

0

3

Exmark 114-1926

Bumper-Rubber

$28.99

$

In Stock, Qty 20+

0

4

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

5

Exmark 119-8650

Pin-Latch

$20.99

$

In Stock, only 1 left!

0

6

Exmark 114-5348

Spring

$2.99

$

In Stock, Qty 20+

0

7

Exmark 1-603175

Knob-Ball

$11.99

$

In Stock, Qty 6

0

8

Exmark 126-6991

Decal-Exmark Logo

$18.99

$

Usually ships in 3-6 days

0

9

Exmark 126-7157

Mat-Platform

$110.99

$

In Stock, only 1 left!

0

10

Exmark 114-1920-03

Clamp-Shield

$43.99

$

Usually ships in 3-6 days

0

11

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

12

Exmark 109-8788

Bushing-Flanged

$6.99

$

In Stock, Qty 20+

0

14

Exmark 83-1040

Washer

$4.49

$

In Stock, only 2 left!

0

15

Exmark 323-7

Screw-HH 3/8-16 X 1 1/4

$2.99

$

In Stock, Qty 20+

0

16

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0
