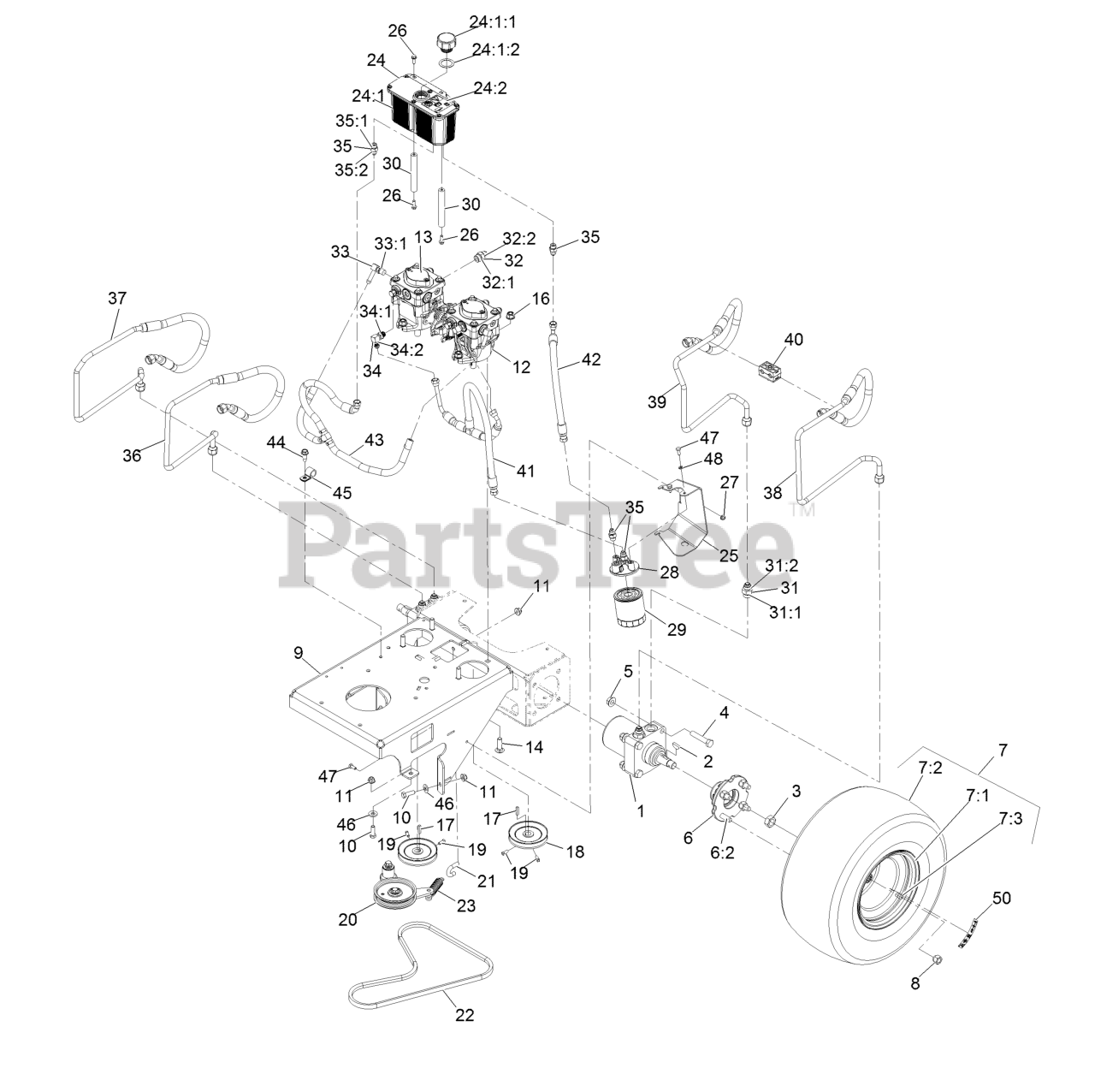

VTS541CKA36300 - Exmark 36" Vantage S-Series Stand-On Mower, Kawasaki FS541V (SN: 402082300 - 404314158) (2018) Ground Drive Assembly Parts Diagram

36" Vantage S-Series Stand-On Mower, Kawasaki FS541V

Ground Drive Assembly Parts Diagram

  • Title

1

Exmark 104-1171

HYD Motor ASM

$1262.99

$

Usually ships in 3-6 days

0

2

Exmark 3257-8

Key-Woodruff

$5.49

$

In Stock, Qty 5

0

3

Exmark 85-7310

Nut-Motor, Wheel

$27.99

$

Usually ships in 3-6 days

0

4

Exmark 325-10

Screw-HH 1/2-13 X 2 1/2

$5.49

$

In Stock, Qty 6

0

5

Exmark 32128-23

Nut-Hex 1/2-13 Side Lock

$1.99

$

In Stock, only 2 left!

0

6

Exmark 105-0800

Wheel Hub ASM

$248.99

$

In Stock, only 1 left!

0

6:2

Exmark 10-6830

Stud-Type, Drive

$5.49

$

In Stock, Qty 5

0

7

Exmark 116-4587

Wheel/Tire ASM

$255.99

$

Usually ships in 3-6 days

0

7:1

Exmark 116-4605

Rim-8 Inch

$108.99

$

Usually ships in 3-6 days

0

7:2

Exmark 116-4606

Tire

$173.99

$

Usually ships in 3-6 days

0

7:3

Exmark 232-27

Stem-Valve

$

$

Not available

8

Exmark 242-50

Nut-Lug 1/2-20
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

9

Exmark 116-8745-01

Base, Engine [red]

$362.99

$

Usually ships in 3-6 days

0

10

Exmark 323-18

Screw-HH

$4.99

$

Usually ships in 3-6 days

0

11

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

12

Exmark 116-2572

Pump - Hydraulic

$1354.99

$

Usually ships in 3-6 days

0

13

Exmark 116-4635

Pump-Hydraulic

$1357.99

$

Usually ships in 3-6 days

0

14

Exmark 3232-3

Bolt-Carriage 7/16-14 X 1 1/2

$3.49

$

In Stock, Qty 5

0

16

Exmark 114-8417

Nut-HF, NI

$2.49

$

In Stock, Qty 18

0

17

Exmark 1-807272

Key-5Mm X 5Mm X 25Mm

$5.99

$

In Stock, Qty 9

0

18

Exmark 105-5648

Pulley-Pump

$125.99

$

Usually ships in 3-6 days

0

19

Exmark 3241-5

Setscrew-SQH 1/4-20 X 5/8

$2.49

$

In Stock, only 2 left!

0

20

Exmark 116-9980

Pump Idler ASM

$179.99

$

Usually ships in 3-6 days

0

21

Exmark 116-8526

Anchor, Spring

$16.99

$

Usually ships in 3-6 days

0

22

Exmark 119-0174

Belt-V
(Superseded to 119-0174-SL)

$44.99

$

Usually ships in 3-6 days

0

23

Exmark 108-4056

Spring-Extension

$8.49

$

In Stock, Qty 20+

0

24

Exmark 116-2066

ASM,Reservoir W/Decals

$191.99

$

Usually ships in 3-6 days

0

24:1

Reservoir-HYD

$

$

Not available

24:1:1

Exmark 103-1948

Cap-Reservoir, HYD
(Superseded to 103-7615)

$32.99

$

In Stock, Qty 20+

0

24:1:2

Exmark 103-1949

Gasket-Cap
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 20+

0

24:2

Exmark 115-4212

Decal-Warning

$12.99

$

Usually ships in 3-6 days

0

25

Exmark 116-4319-01

Plate-Filter Mount

$49.99

$

Usually ships in 3-6 days

0

26

Exmark 117-8304

Screw-Hex Flange 1/4-20 X 3/4

$3.49

$

Usually ships in 3-6 days

0

27

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

28

Exmark 103-2888

Head-Filter

$88.99

$

Usually ships in 3-6 days

0

29

Exmark 109-4180

Element, Oil Filter

$49.99

$

In Stock, Qty 13

0

30

Exmark 116-4343

Rod-Reservoir Stand

$19.99

$

Usually ships in 3-6 days

0

31

Exmark 1-603991

Adapter-Straight

$21.99

$

In Stock, only 4 left!

0

31:1

Exmark 237-80

O-Ring

$6.99

$

In Stock, Qty 19

0

31:2

Exmark 1-603992

O-Ring-37 Flare #8

$2.99

$

In Stock, Qty 20+

0

32

Exmark 1-603990

Adapter-Straight

$18.99

$

In Stock, Qty 12

0

32:1

Exmark 1-603920

O-Ring-SAE #8

$3.99

$

In Stock, Qty 20+

0

32:2

Exmark 1-603992

O-Ring-37 Flare #8

$2.99

$

In Stock, Qty 20+

0

33

Exmark 100-4887

Fitting-Barbed

$29.99

$

In Stock, only 1 left!

0

33:1

Exmark 237-42

O-Ring

$3.49

$

In Stock, Qty 20+

0

34

Exmark 103-2155

Adapter-90deg

$29.99

$

Usually ships in 3-6 days

0

34:1

Exmark 1-603921

O-Ring-SAE #6
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

34:2

Exmark 103-1020

O-Ring-37 Flare #6

$1.49

$

Usually ships in 3-6 days

0

35

Exmark 103-2156

Adapter-Straight

$42.99

$

In Stock, only 3 left!

0

35:1

Exmark 1-603921

O-Ring-SAE #6
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

35:2

Exmark 103-1020

O-Ring-37 Flare #6

$1.49

$

Usually ships in 3-6 days

0

36

Exmark 116-5526

Hose-Hardline

$168.99

$

Usually ships in 3-6 days

0

37

Exmark 116-5525

Hose-Hardline

$191.99

$

Usually ships in 3-6 days

0

38

Exmark 116-5523

Hose-Hardline

$168.99

$

Usually ships in 3-6 days

0

39

Exmark 116-5524

Hose-Hardline

$191.99

$

Usually ships in 3-6 days

0

40

Exmark 116-5804

Clamp, Stauff 212,7/12,7 W/Retainers

$21.99

$

In Stock, only 1 left!

0

41

Exmark 116-5145

Hose-ASM Charge

$106.99

$

Usually ships in 3-6 days

0

42

Exmark 116-4252

Hose ASM-HYD LP 3/8X14.4

$43.99

$

Usually ships in 3-6 days

0

43

Exmark 116-5460

Hose ASM - HYD 3/8

$76.99

$

Usually ships in 3-6 days

0

44

Exmark 105-6245

Screw-Tapping

$6.49

$

Usually ships in 3-6 days

0

45

Exmark 1-633396

Clip-Loom 5/8

$5.49

$

Usually ships in 3-6 days

0

46

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0

47

Exmark 321-3

Screw-HH 1/4-20 X 5/8

$1.49

$

In Stock, Qty 20+

0

48

Exmark 1-805004

Washer-Lock 1/4 Heavy

$1.49

$

In Stock, Qty 14

0

50

Exmark 126-2130

Decal-Wheel Torque

$9.49

$

Usually ships in 3-6 days

0
