VTS541CKA36300 - Exmark 36" Vantage S-Series Stand-On Mower, Kawasaki FS541V (SN: 402082300 - 404314158) (2018) Fuel Tank Mounting Assembly Parts Diagram

36" Vantage S-Series Stand-On Mower, Kawasaki FS541V

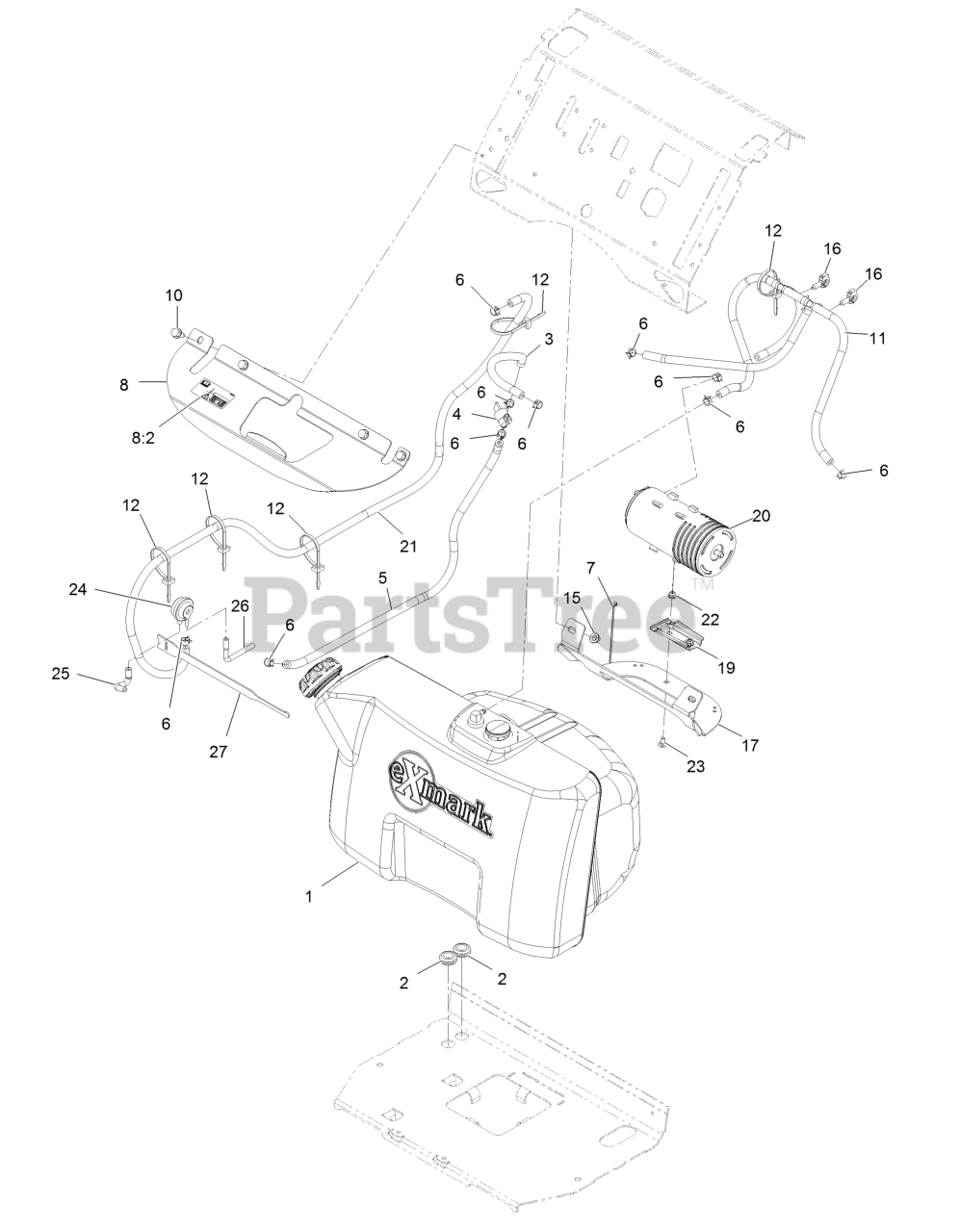

Fuel Tank Mounting Assembly Parts Diagram

  • Title
1

Exmark 135-0647

Tank ASM-

$834.99

$

Usually ships in 3-6 days

0

2

Exmark 112-7069

Grommet

$3.49

$

Usually ships in 3-6 days

0

3

Exmark 107-9297

Hose-Fuel

$7.99

$

In Stock, only 2 left!

0

4

Exmark 1-603770

Valve-Fuel

$8.49

$

In Stock, Qty 5

0

5

Exmark 110-1872

Hose-Fuel

$33.99

$

Usually ships in 3-6 days

0

6

Exmark 2412-98

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

7

Exmark 1-303287

Tie-Cable 5 1/2 (Small)

$1.49

$

Usually ships in 3-6 days

0

8

Exmark 116-3088

Bracket-Tank

$74.99

$

Usually ships in 3-6 days

0

8:2

Exmark 116-8775

Decal-Fill, Fuel

$8.99

$

Usually ships in 3-6 days

0

10

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

11

Exmark 116-5054

Vent ASM

$76.99

$

Usually ships in 3-6 days

0

12

Exmark 3290-378

Tie-Cable

$0.99

$

In Stock, Qty 8

0

15

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

16

Exmark 32180-040

Clip-Harness

$2.99

$

Usually ships in 3-6 days

0

17

Exmark 116-5055-03

Bracket,Carb Canister

$75.99

$

Usually ships in 3-6 days

0

19

Exmark 114-0292

Bracket-Canister, Carbon

$12.99

$

Usually ships in 3-6 days

0

20

Exmark 117-1221

Canister-Carbon, 800Cc

$75.99

$

Usually ships in 3-6 days

0

21

Exmark 116-5053

Hose-Fuel .25 X 60.00, J30R7

$37.99

$

Usually ships in 3-6 days

0

22

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

23

Exmark 116-5879

Screw-CARR

$15.99

$

Usually ships in 3-6 days

0

24

Exmark 116-2232

Valve-Control, Vacuum

$33.99

$

In Stock, only 3 left!

0

25

Exmark 119-8502

Hose-Vent, Formed

$6.49

$

Usually ships in 3-6 days

0

26

Exmark 119-8501

Hose-Vent, Formed

$6.49

$

Usually ships in 3-6 days

0

27

Exmark 116-2469

Strap-Velcro, Cable Tie

$18.99

$

Usually ships in 3-6 days

0
