Exmark VTS541CKA36300 - Exmark 36" Vantage S-Series Stand-On Mower, Kawasaki FS541V (SN: 402082300 - 404314158) (2018) Deck Lift Assembly Parts Lookup with Diagrams

1

Exmark 116-4638-01

Support-Bearing

$80.99

$

Usually ships in 3-6 days

2

Exmark 109-9410

Bearing-Cross Shaft, Front

$5.49

$

In Stock, Qty 20+

3

Exmark 116-3725-01

Rear Crossshaft ASM

$345.99

$

Usually ships in 3-6 days

4

Exmark 116-3733-01

Cover-Bearing Support

$8.99

$

Usually ships in 3-6 days

5

Exmark 325-20

Screw-HH 1/2-13 X 6

$7.99

$

In Stock, Qty 20+

6

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

7

Exmark 100-1668

Screw-Flange

$6.49

$

Usually ships in 3-6 days

9

Exmark 116-4663-01

Decklift Arm ASM-LH

$147.99

$

Usually ships in 3-6 days

10

Exmark 116-4664-01

Decklift Arm ASM-RH

$147.99

$

Usually ships in 3-6 days

11

Exmark 302-5

Zerk 1/4-28 Str Thrd Forming

$3.49

$

In Stock, Qty 20+

12

Exmark 237-77

O Ring

$2.99

$

Usually ships in 3-6 days

13

Exmark 69-8910

Washer

$3.99

$

Usually ships in 3-6 days

14

Exmark 32120-2

Ring-Retaining

$6.49

$

Usually ships in 3-6 days

15

Exmark 109-9066

Yoke-Adjust, Deck

$7.99

$

In Stock, Qty 5

16

Exmark 3218-2

Nut-Jam 5/16-18

$0.99

$

In Stock, Qty 20+

17

Exmark 3274-18

Screw-Sh 5/16-18 X 1 1/4

$9.49

$

In Stock, Qty 7

18

Exmark 116-2428

Bushing-Flanged

$12.99

$

In Stock, Qty 11

19

Exmark 3256-4

Washer-3/8 Std

$1.99

$

In Stock, Qty 20+

20

Exmark 109-9065

Screw-HH 7/16-14 X 2

$3.49

$

In Stock, Qty 20+

21

Exmark 32128-37

Nut-Whizlock 7/16-14

$4.49

$

In Stock, Qty 17

22

Exmark 116-0756

Deck Lift Chain ASM

$14.99

$

In Stock, Qty 8

22:1

Exmark 1-633447

Chain-Lift, Deck

$10.99

$

In Stock, Qty 16

22:2

Exmark 109-9065

Screw-HH 7/16-14 X 2

$3.49

$

In Stock, Qty 20+

22:3

Exmark 32128-37

Nut-Whizlock 7/16-14

$4.49

$

In Stock, Qty 17

23

Exmark 109-9840

Screw-Hex Flange 3/8-16 X .80

$5.49

$

In Stock, Qty 20+

24

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

25

Exmark 116-2909

Bearing-Flange

$7.99

$

In Stock, only 1 left!

26

Exmark 116-3972-03

Link-Decklift, LH

$81.99

$

Usually ships in 3-6 days

27

Exmark 116-4661-03

Link-Decklift, RH

$117.99

$

Usually ships in 3-6 days

28

Exmark 3256-29

Washer-7/8 SAE

$2.99

$

In Stock, only 2 left!

29

Exmark 32151-103

E-Ring

$3.49

$

In Stock, Qty 20+

30

Exmark 116-5602

ASM-HOC Handle

$129.99

$

Usually ships in 3-6 days

31

Exmark 116-4021

Bearing-HOC Pivot

$7.99

$

Usually ships in 3-6 days

32

Exmark 323-42

Screw-HH 3/8-16 X 3 3/4

$8.49

$

In Stock, only 3 left!

34

Exmark 114-1878-03

Lever-HOC

$121.99

$

In Stock, Qty 6

35

Exmark 1-633268

Grip-Lever

$14.99

$

In Stock, only 3 left!

36

Exmark 66-0561

Screw-Shoulder

$5.99

$

In Stock, only 1 left!

37

Exmark 3256-26

Washer-1/2 SAE

$0.99

$

In Stock, Qty 20+

38

Exmark 65-9940

Spring

$4.99

$

In Stock, Qty 18

39

Exmark 111044

Bushing

$1.49

$

In Stock, Qty 20+

40

Exmark 116-3971

Bracket-HOC

$37.99

$

Usually ships in 3-6 days

41

Exmark 323-7

Screw-HH 3/8-16 X 1 1/4

$2.99

$

In Stock, Qty 20+

42

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

43

Exmark 3296-59

Nut-Nyloc 3/8-16 Thin

(Superseded to 121-4600) 

$1.49

$

In Stock, Qty 20+

44

Exmark 116-3975

HOC Link ASM

$167.99

$

Usually ships in 3-6 days

45

Exmark 327-22

Screw-HH

$13.99

$

Usually ships in 3-6 days

46

Exmark 3296-53

Nut-Nyloc 5/8-11

$2.49

$

In Stock, Qty 20+

47

Exmark 327-29

Screw-HH

$7.99

$

Usually ships in 3-6 days

48

Exmark 116-0886

Spring-Extension

$136.99

$

Usually ships in 3-6 days

49

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

50

Exmark 323-58

Bolt-HH 3/8-16 X 6 Tap

$5.49

$

Usually ships in 3-6 days

51

Exmark 116-3124

Skid-Handle, Lift

$23.99

$

Usually ships in 3-6 days

52

Exmark 32144-11

Screw-HWH 5/16-18 X 3/4 Tf

$7.99

$

In Stock, Qty 6

53

Exmark 116-4702

Bushing-Flanged

$37.99

$

Usually ships in 3-6 days

54

Exmark 325-8

Screw-HH 1/2-13 X 1 1/4

$5.49

$

In Stock, Qty 17

55

Exmark 3256-5

Washer-7/16 Std

$0.99

$

In Stock, Qty 9

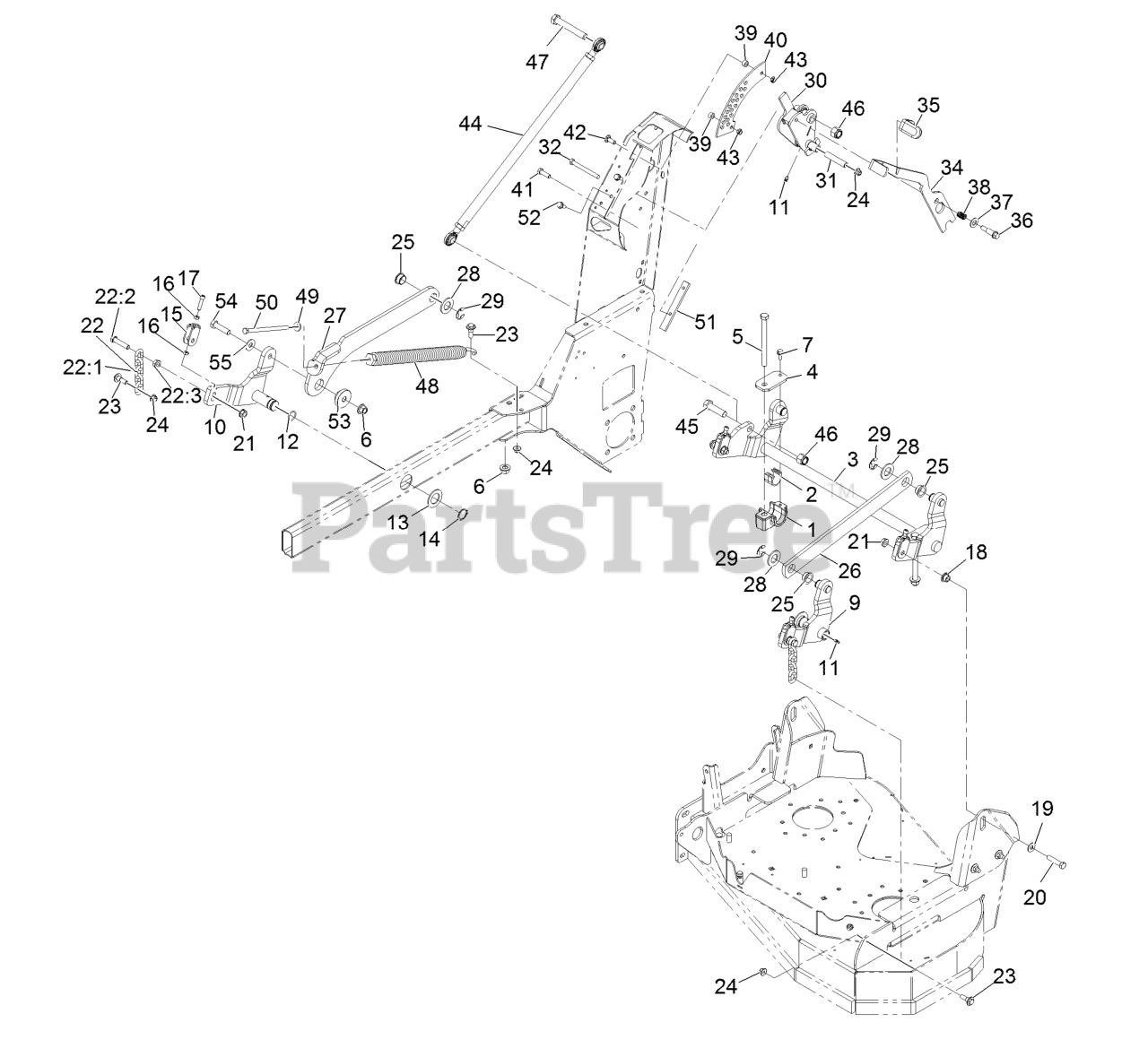

VTS541CKA36300 - Exmark 36" Vantage S-Series Stand-On Mower, Kawasaki FS541V (SN: 402082300 - 404314158) (2018) Deck Lift Assembly Parts Diagram

Deck Lift Assembly Parts Diagram
