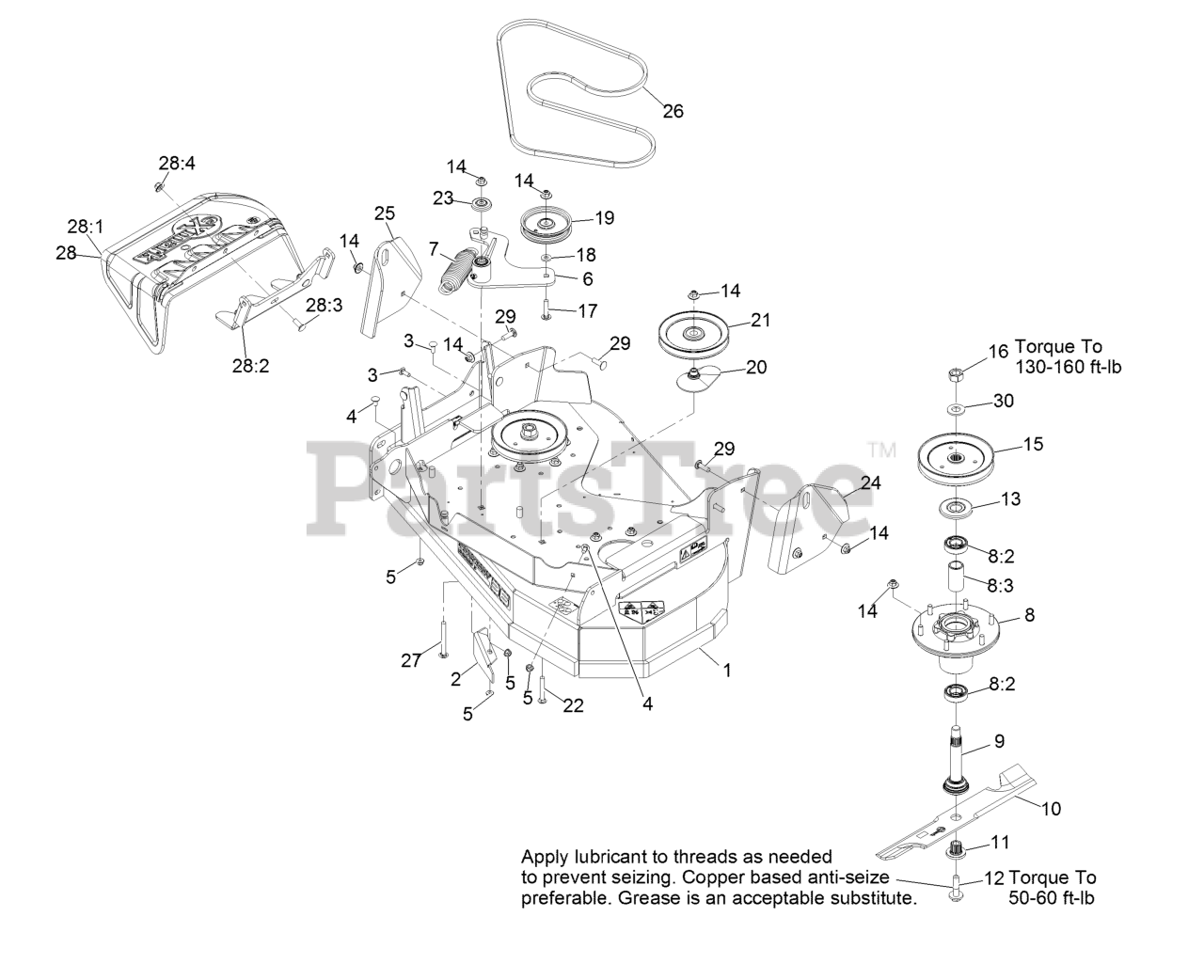

VTS541CKA36300 - Exmark 36" Vantage S-Series Stand-On Mower, Kawasaki FS541V (SN: 402082300 - 404314158) (2018) Deck Assembly Parts Diagram

36" Vantage S-Series Stand-On Mower, Kawasaki FS541V

Deck Assembly Parts Diagram

  • Title

1

Exmark 116-3662

Deck ASM - 36

$2567.99

$

Usually ships in 3-6 days

0

2

Exmark 116-4244-01

Baffle-Dogleg

$20.99

$

Usually ships in 3-6 days

0

3

Exmark 3230-16

Bolt-Carriage 5/16-18 X 7/8

$2.99

$

In Stock, Qty 20+

0

4

Exmark 3230-18

Bolt-Carriage 5/16-18 X 5/8

$5.49

$

In Stock, Qty 5

0

5

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 17

0

6

Exmark 116-3680

Idler Arm ASM -

$242.99

$

Usually ships in 3-6 days

0

7

Exmark 116-6317

Spring-Extension

$28.99

$

In Stock, Qty 7

0

8

Exmark 116-3344

ASM-Cutter Hsg With Bearings

$158.99

$

In Stock, Qty 20+

0

8:2

Exmark 116-0720

Bearing-Ball

$22.99

$

In Stock, Qty 20+

0

8:3

Exmark 116-3312

Spacer-Bearing

$9.49

$

In Stock, Qty 5

0

9

Exmark 116-3342

ASM-Spindle And Seal

$85.99

$

In Stock, only 1 left!

0

10

Exmark 103-6402

Blade-Notched
(Superseded to 103-6402-S)

$30.99

$

In Stock, Qty 20+

0

10

Exmark 103-6397

Blade, Extreme
(Superseded to 116-5175-S)

$30.99

$

In Stock, Qty 20+

0

10

Exmark 103-6392

Blade, Mulching
(Superseded to 103-6392-S)

$30.99

$

In Stock, Qty 20+

0

10

Exmark 103-6387

Blade, Low Lift
(Superseded to 103-6387-S)

$31.99

$

In Stock, Qty 11

0

10

Exmark 103-6382

Blade, Solid
(Superseded to 103-6382-S)

$36.99

$

In Stock, only 4 left!

0

11

Exmark 103-3037

Bushing, Splined

$22.99

$

In Stock, Qty 20+

0

12

Exmark 109-9220

Screw-Sems 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

13

Exmark 116-1286

Guard,Bearing Top .989

$5.49

$

In Stock, Qty 9

0

14

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

15

Exmark 116-0675

Sheave,Blade Drive 6.50

$92.99

$

In Stock, Qty 20+

0

16

Exmark 116-7306

Nut-Hex

$2.99

$

In Stock, Qty 9

0

17

Exmark 3231-5

Bolt-Carriage 3/8-16 X 1 3/4

$1.49

$

In Stock, only 2 left!

0

18

Exmark 43-0940

Spacer

$5.49

$

In Stock, Qty 20+

0

19

Exmark 93-1622

Pulley-Idler

$42.99

$

In Stock, only 3 left!

0

20

Exmark 109-2872

Spacer-Pulley

$22.99

$

In Stock, only 2 left!

0

21

Exmark 116-3592

Pulley-Idler

$111.99

$

Usually ships in 3-6 days

0

22

Exmark 3231-31

Bolt-Carriage 3/8-16 X 2 1/2

$6.99

$

In Stock, Qty 20+

0

23

Exmark 103-2916

Guard-Top

$2.99

$

In Stock, Qty 9

0

24

Exmark 116-3675-01

Push-Tower,LH 36

$63.99

$

Usually ships in 3-6 days

0

25

Exmark 116-3676-01

Push-Tower,RH 36

$63.99

$

Usually ships in 3-6 days

0

26

Exmark 116-3703

Belt-V
(Superseded to 116-3703-SL)

$61.99

$

In Stock, only 2 left!

0

27

Exmark 116-1502

Bolt-Carriage Shoulder 3/8-16 X 3 1/2

$7.99

$

In Stock, only 4 left!

0

28

Exmark 116-4230

Chute - Discharge ASM

$212.99

$

Usually ships in 3-6 days

0

28:1

Exmark 109-2738

Chute, Discharge

$74.99

$

In Stock, Qty 20+

0

28:2

Exmark 116-4229-01

Bracket-Chute, Discharge

$

$

Not available

28:3

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

28:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

29

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

30

Exmark 103-2802

Washer-Spring Disc 3/4

$5.49

$

In Stock, Qty 14
