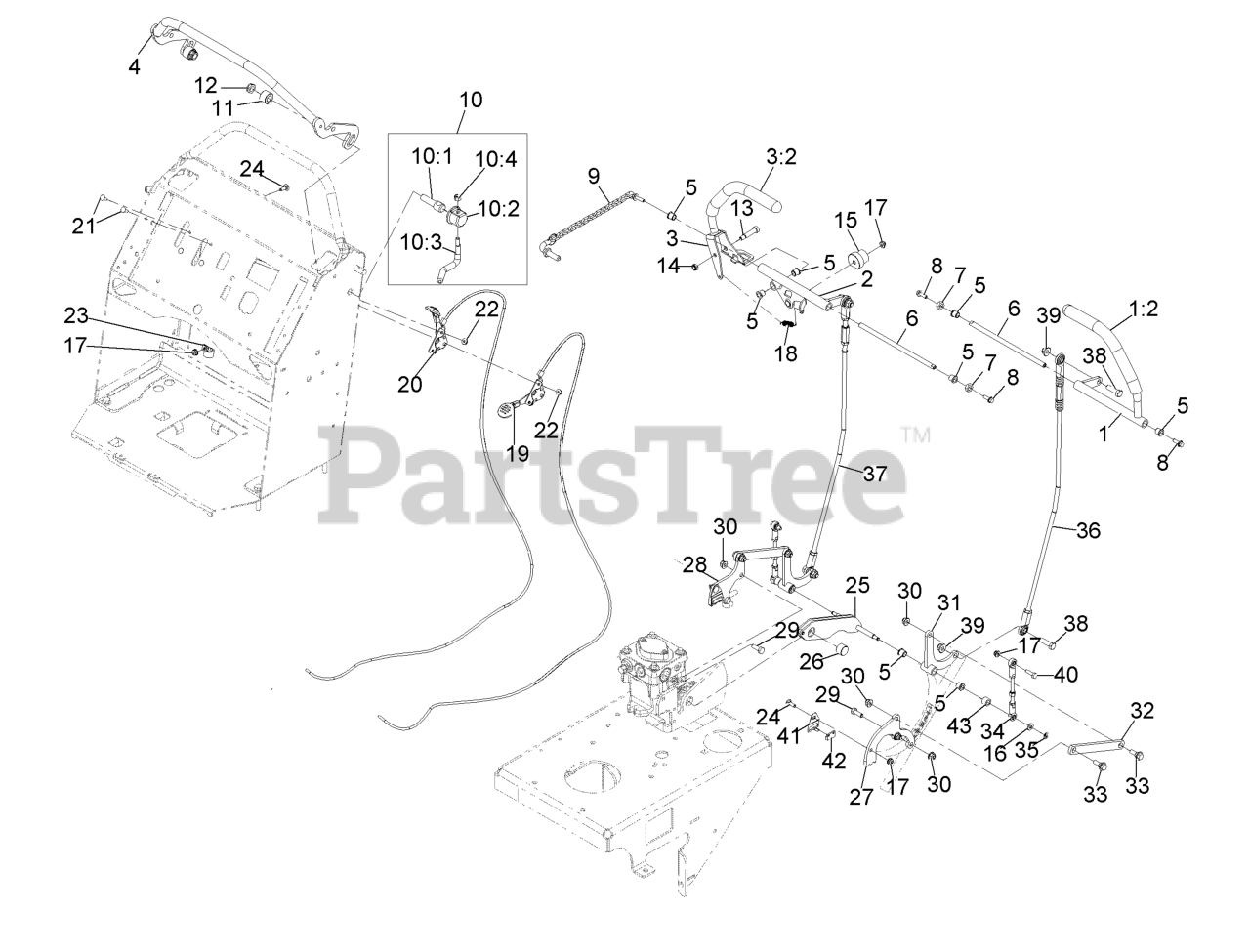

VTS541CKA36300 - Exmark 36" Vantage S-Series Stand-On Mower, Kawasaki FS541V (SN: 402082300 - 404314158) (2018) Control Assembly Parts Diagram

36" Vantage S-Series Stand-On Mower, Kawasaki FS541V

Control Assembly Parts Diagram

  • Title

1

Exmark 116-4195

Lever ASM, LH

$114.99

$

In Stock, only 1 left!

0

1:2

Exmark 116-2357

Grip-Handle, Control

$10.99

$

Usually ships in 3-6 days

0

2

Exmark 126-1943-03

Weld, Motion Control

$85.99

$

Usually ships in 3-6 days

0

3

Exmark 116-9815

ASM, Lever W/ Grip, Rt

$88.99

$

Usually ships in 3-6 days

0

3:2

Exmark 116-2357

Grip-Handle, Control

$10.99

$

Usually ships in 3-6 days

0

4

Exmark 116-6985-03

Tube ASM, Front Speed Control [

$127.99

$

Usually ships in 3-6 days

0

5

Exmark 103-9928

Bearing

$7.99

$

In Stock, Qty 11

0

6

Exmark 116-4197

Shaft-Pivot, Motion Control

$21.99

$

Usually ships in 3-6 days

0

7

Exmark 116-4198

Spacer-Shaft, Drive Lever

$6.49

$

Usually ships in 3-6 days

0

8

Exmark 117-8304

Screw-Hex Flange 1/4-20 X 3/4

$3.49

$

Usually ships in 3-6 days

0

9

Exmark 114-0409

HOC Pin ASM

$51.99

$

In Stock, only 4 left!

0

10

Exmark 107-1664

Lever ASM

$72.99

$

Usually ships in 3-6 days

0

10:1

Exmark 106-3239

Screw-Lock

$52.99

$

Usually ships in 3-6 days

0

10:2

Exmark 107-1644

Cap-Lock

$18.99

$

In Stock, only 2 left!

0

10:3

Exmark 106-3241

Lever-Lock
(Superseded to 107-1664)

$72.99

$

Usually ships in 3-6 days

0

10:4

Exmark 3296-29

Nut-Nyloc 5/16-18

$2.49

$

In Stock, Qty 14

0

11

Exmark 116-2319

Spacer-Clamp

$8.49

$

Usually ships in 3-6 days

0

12

Exmark 3296-45

Nut-Nyloc 1/2-13 Thin

$4.49

$

In Stock, Qty 20+

0

13

Exmark 114-0239

Screw-Shoulder 5/16-18 X 1/2

$12.99

$

In Stock, only 2 left!

0

14

Exmark 3296-47

Nut-Nyloc 5/16-18 Thin

$3.99

$

In Stock, Qty 7

0

15

Exmark 126-1499

Cam

$7.99

$

Usually ships in 3-6 days

0

16

Exmark 3256-22

Washer-1/4 SAE

$0.99

$

In Stock, Qty 20+

0

17

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

18

Exmark 114-0249

Spring-Extension

$13.99

$

Usually ships in 3-6 days

0

19

Exmark 116-4276

Control-Throttle

$49.99

$

In Stock, only 1 left!

0

20

Exmark 116-4277

Control-Choke

$44.99

$

Usually ships in 3-6 days

0

21

Exmark 1-807533

Bolt-Carriage #10-24 X 5/8

$1.49

$

In Stock, Qty 6

0

22

Exmark 3290-148

Nut-Whizlock #10-24

$0.99

$

In Stock, Qty 11

0

23

Exmark 2412-87

Clamp-Cable

$3.49

$

Usually ships in 3-6 days

0

24

Exmark 3229-1

Bolt-Carriage 1/4-20 X 3/4

$3.99

$

In Stock, Qty 20+

0

25

Exmark 116-4740

Bellcrank Link ASM

$95.99

$

Usually ships in 3-6 days

0

26

Exmark 116-4203

Pin-Bellcrank Link Retaining

$7.99

$

Usually ships in 3-6 days

0

27

Exmark 116-4737

Arm-Pump Control

$34.99

$

Usually ships in 3-6 days

0

28

Exmark 116-7000

Arm-Pump Control RH

$26.99

$

Usually ships in 3-6 days

0

29

Exmark 322-4

Screw-HH 5/16-18 X 7/8

$0.99

$

In Stock, Qty 20+

0

30

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

31

Exmark 116-4205

Bellcrank-Lower

$77.99

$

Usually ships in 3-6 days

0

32

Exmark 116-4208

Link-Bellcrank, Pump

$6.49

$

Usually ships in 3-6 days

0

33

Exmark 116-2670

Screw-Shoulder HHF 5/16-18 X .96

$7.99

$

In Stock, Qty 5

0

34

Exmark 116-4210

Vertical Adjust Link

$102.99

$

Usually ships in 3-6 days

0

35

Exmark 32151-86

E-Ring

$2.99

$

In Stock, Qty 20+

0

36

Exmark 116-4213

Linkage-Tracking Control, LH

$159.99

$

Usually ships in 3-6 days

0

37

Exmark 116-4214

Linkage-Tracking Control, RH

$159.99

$

Usually ships in 3-6 days

0

38

Exmark 323-7

Screw-HH 3/8-16 X 1 1/4

$2.99

$

In Stock, Qty 20+

0

39

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

40

Exmark 321-5

Screw-HH 1/4-20 X 7/8

$0.99

$

In Stock, Qty 20+

0

41

Exmark 116-4739

Clamp-Switch

$16.99

$

In Stock, only 2 left!

0

42

Exmark 116-2832

Actuator-Switch, Reed

$26.99

$

Usually ships in 3-6 days

0

43

Exmark 52-2480

Spacer-Wheel

$6.49

$

In Stock, only 3 left!
