Exmark VTS541CKA36300 - Exmark 36" Vantage S-Series Stand-On Mower, Kawasaki FS541V (SN: 400000000 - 402082299) (2017) Deck Lift Assembly Parts Lookup with Diagrams

1

Exmark 116-4638-01

SUPPORT-BEARING

$77.99

$

Usually ships in 3-6 days

2

Exmark 109-9410

BEARING-CROSS SHAFT, FRON

$5.49

$

In Stock, Qty 11

3

Exmark 116-3725-01

REAR CROSSSHAFT ASM

$313.99

$

Usually ships in 3-6 days

4

Exmark 116-3733-01

COVER-BEARING SUPPORT

$8.99

$

Usually ships in 3-6 days

5

Exmark 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

6

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

7

Exmark 100-1668

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

9

Exmark 116-4663-01

DECKLIFT ARM ASM-LH

$147.99

$

Usually ships in 3-6 days

10

Exmark 116-4664-01

DECKLIFT ARM ASM-RH

$147.99

$

Usually ships in 3-6 days

11

Exmark 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

12

Exmark 237-77

O RING

$2.99

$

Usually ships in 3-6 days

13

Exmark 69-8910

WASHER

$3.99

$

Usually ships in 3-6 days

14

Exmark 32120-2

RING-RETAINING

$6.49

$

Usually ships in 3-6 days

15

Exmark 109-9066

YOKE-ADJUST, DECK

$7.99

$

In Stock, only 2 left!

16

Exmark 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

17

Exmark 3274-18

SCREW-HSH

$9.49

$

In Stock, Qty 7

18

Exmark 116-2428

BUSHING-FLANGED

$12.99

$

In Stock, Qty 11

19

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

20

Exmark 109-9065

SCREW-HH

$3.49

$

In Stock, Qty 20+

21

Exmark 32128-37

NUT-HF

$4.49

$

In Stock, Qty 17

22

Exmark 116-0756

DECK LIFT CHAIN ASM

$14.99

$

In Stock, Qty 8

22:1

Exmark 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 16

22:2

Exmark 109-9065

SCREW-HH

$3.49

$

In Stock, Qty 20+

22:3

Exmark 32128-37

NUT-HF

$4.49

$

In Stock, Qty 17

23

Exmark 109-9840

SCREW-SHOULDER, HHF

$5.49

$

In Stock, Qty 11

24

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

25

Exmark 116-2909

BEARING-FLANGE

$7.99

$

In Stock, only 1 left!

26

Exmark 116-3972-03

LINK-DECKLIFT, LH

$74.99

$

Usually ships in 3-6 days

27

Exmark 116-4661-03

LINK-DECKLIFT, RH

$105.99

$

Usually ships in 3-6 days

28

Exmark 3256-29

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

29

Exmark 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 7

30

Exmark 116-5602

ASM-HOC HANDLE

$115.99

$

Usually ships in 3-6 days

31

Exmark 116-4021

BEARING-HOC PIVOT

$7.99

$

Usually ships in 3-6 days

32

Exmark 323-42

SCREW-HH

$8.49

$

Usually ships in 3-6 days

34

Exmark 114-1878-03

LEVER-HOC

$121.99

$

In Stock, only 1 left!

35

Exmark 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 4 left!

36

Exmark 66-0561

SCREW-SHOULDER

$5.99

$

In Stock, only 1 left!

37

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

38

Exmark 65-9940

SPRING

$4.99

$

Usually ships in 3-6 days

39

Exmark 111044

SPACER

$1.49

$

In Stock, Qty 20+

40

Exmark 116-3971

BRACKET-HOC

$37.99

$

Usually ships in 3-6 days

41

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

42

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

43

Exmark 3296-59

121-4600

(Superseded to 121-4600) 

$1.49

$

In Stock, Qty 17

44

Exmark 116-3975

HOC LINK ASM

$151.99

$

Usually ships in 3-6 days

45

Exmark 327-22

SCREW-HH

$13.99

$

Usually ships in 3-6 days

46

Exmark 3296-53

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

47

Exmark 327-29

SCREW-HH

$7.49

$

Usually ships in 3-6 days

48

Exmark 116-0886

SPRING-EXTENSION

$136.99

$

In Stock, only 1 left!

49

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

50

Exmark 323-58

BOLT-TAP, HH

$5.49

$

Usually ships in 3-6 days

51

Exmark 116-3124

SKID-HANDLE, LIFT

$23.99

$

Usually ships in 3-6 days

52

Exmark 32144-11

SCREW-THD ROLL, HWH

$7.99

$

In Stock, Qty 6

53

Exmark 116-4702

BUSHING-FLANGED

$37.99

$

Usually ships in 3-6 days

54

Exmark 325-8

SCREW-HH

$5.49

$

In Stock, Qty 7

55

Exmark 3256-5

WASHER-FLAT

$0.99

$

In Stock, Qty 9

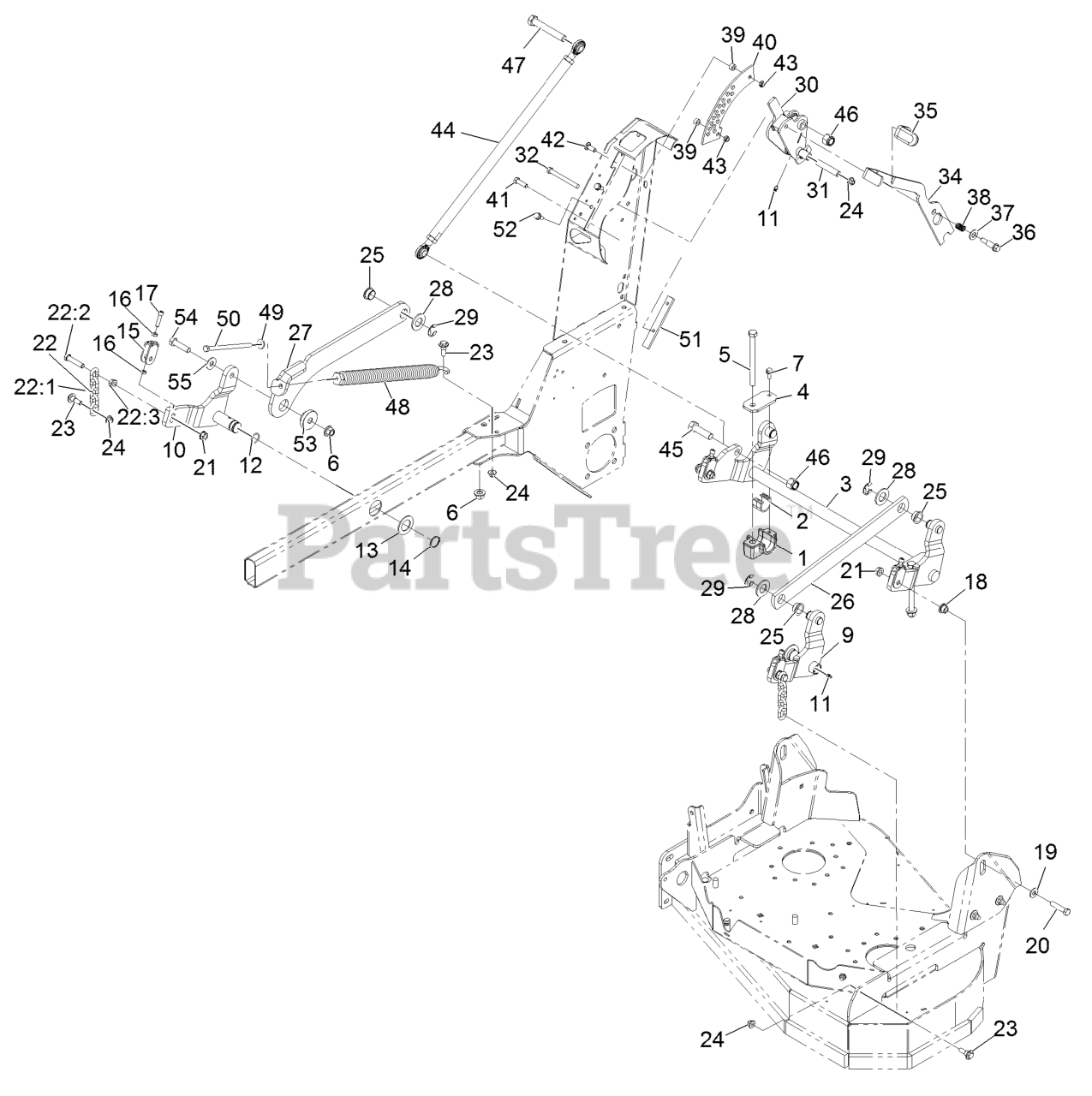

VTS541CKA36300 - Exmark 36" Vantage S-Series Stand-On Mower, Kawasaki FS541V (SN: 400000000 - 402082299) (2017) Deck Lift Assembly Parts Diagram

Deck Lift Assembly Parts Diagram
