VTS541CKA36300 - Exmark 36" Vantage S-Series Stand-On Mower, Kawasaki FS541V (SN: 316000000 - 399999999) (2016) Electrical Assembly Parts Diagram

36" Vantage S-Series Stand-On Mower, Kawasaki FS541V

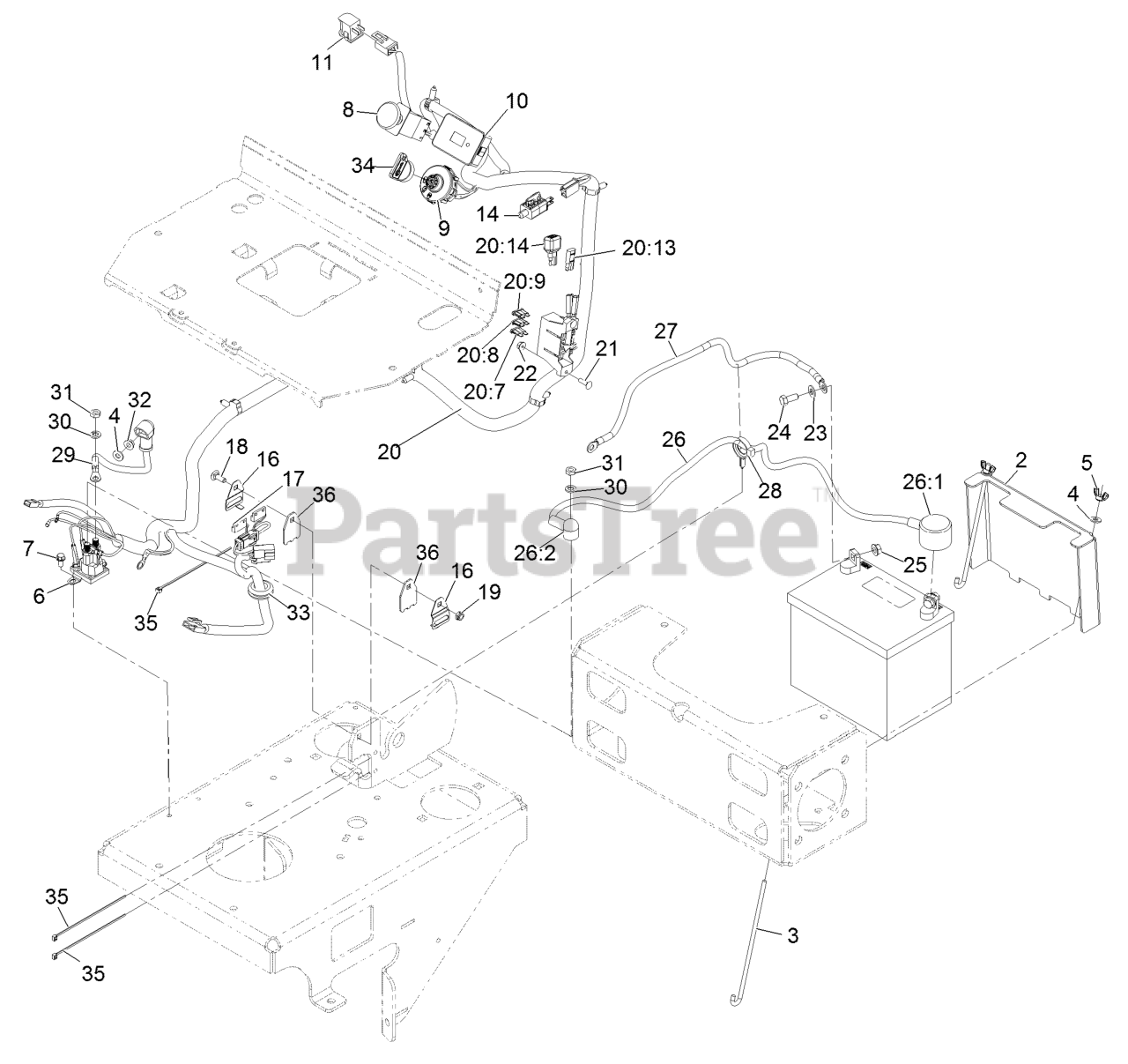

Electrical Assembly Parts Diagram

  • Title

2

Exmark 116-4756-01

COVER-BATTERY

$39.99

$

Usually ships in 3-6 days

0

3

Exmark 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, Qty 20+

0

4

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Exmark 1-543792

WINGNUT

$6.49

$

In Stock, Qty 14

0

6

Exmark 117-1197

SOLENOID

$45.99

$

In Stock, Qty 20+

0

7

Exmark 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

8

Exmark 114-0279

SWITCH-PTO, ON-ON

$59.99

$

In Stock, Qty 18

0

9

Exmark 117-2222

137-4101
(Superseded to 137-4101)

$34.99

$

In Stock, Qty 19

0

10

Exmark 117-3886

MODULE-HOUR METER

$215.99

$

In Stock, only 1 left!

0

11

Exmark 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

0

14

Exmark 119-8231

SWITCH-PLUNGER, NC, SPST

$20.99

$

Usually ships in 3-6 days

0

16

Exmark 116-4739

CLAMP-SWITCH

$16.99

$

In Stock, only 2 left!

0

17

Exmark 116-2833

HARNESS-SWITCH, REED

$118.99

$

Usually ships in 3-6 days

0

18

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

19

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Exmark 126-1214

135-2487
(Superseded to 135-2487)

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$281.99

$

In Stock, only 1 left!

0

20:7

Exmark 109103

FUSE-BLADE, 30 AMP

$6.99

$

In Stock, Qty 6

0

20:8

Exmark 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 17

0

20:9

Exmark 218-578

FUSE-BLADE, 10 AMP

$2.99

$

In Stock, Qty 6

0

20:13

Exmark 116-0053

CAP-PLUG

$39.99

$

Usually ships in 3-6 days

0

20:14

Exmark 103-3895

DIODE

$64.99

$

In Stock, only 4 left!

0

21

Exmark 3229-20

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

22

Exmark 3290-148

NUT-HF

$0.99

$

In Stock, Qty 11

0

23

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

24

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Exmark 109-5715

NUT-HHF, SMOOTH

$1.49

$

Usually ships in 3-6 days

0

26

Exmark 109-7608

ASM,POSITIVE BATTERY CABL

$44.99

$

Usually ships in 3-6 days

0

26:1

Exmark 109-2407

INSULATOR-BATTERY

$5.49

$

In Stock, only 3 left!

0

26:2

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0

27

Exmark 54-3093

CABLE-BATTERY, NEGATIVE

$36.99

$

Usually ships in 3-6 days

0

28

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

29

Exmark 106-8268

CABLE-BATTERY, RED

$37.99

$

Usually ships in 3-6 days

0

30

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

31

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

32

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

33

Exmark 117-2781

GROMMET

$7.99

$

Usually ships in 3-6 days

0

34

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

35

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

36

Exmark 116-4388

PLATE-SPACER

$6.49

$

Usually ships in 3-6 days

0
