VTP 4 A (UT-01605-A) - Homelite Pump Impeller Housing Parts Diagram

Pump

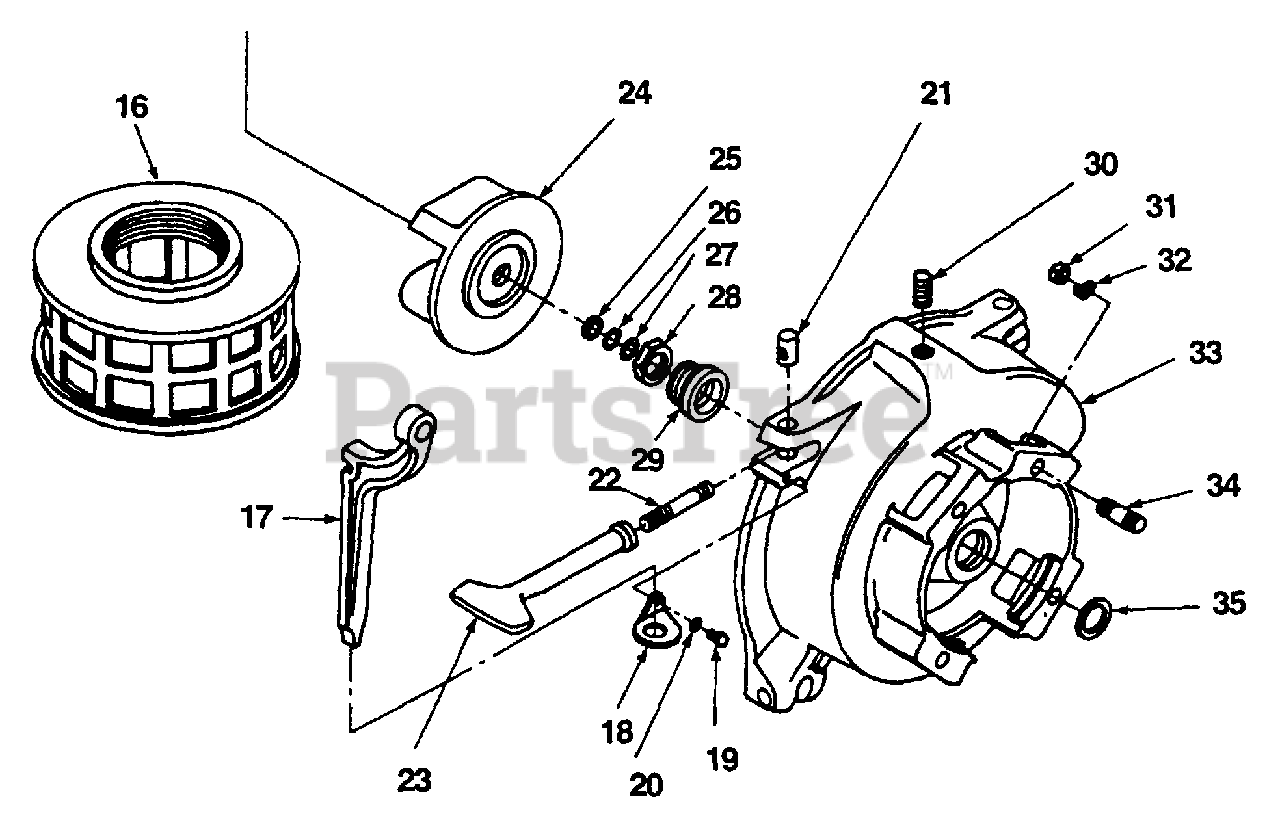

Impeller Housing Parts Diagram

  • Title
16

Homelite 54956

STRAINER

$

$

Not available

17

Homelite 22148

SPANNER WRENCH
(Superseded to UP07012)

$

$

Not available

18

Homelite 624501

WRENCH HOLDER

$

$

Not available

19

Homelite 80044

HEX HD SCREW

$

$

Not available

20

Homelite 84020

FLAT WASHER (1/4)

$

$

Not available

21

Homelite 545701

HANDLE PIVOT

$

$

Not available

22

Homelite 54571

HANDLE STUD

$

$

Not available

23

Homelite 545722A

DISCONNECT HANDLE

$

$

Not available

24

Homelite 479203

IMPELLER

$

$

Not available

25

Homelite 43893

SHIM (.010)

Note: As Required

$

$

Not available

26

Homelite 43894

SHIM (.015)

Note: As Required

$

$

Not available

27

Homelite 43895

SHIM (.032)

Note: As Required

$

$

Not available

28

Homelite 46151

HEX NUT

$

$

Not available

29

Homelite 46150

SHAFT SEAL

$

$

Not available

30

Homelite 82381

SET SCREW (5/8-11 X .75)

$

$

Not available

31

Homelite 81060

HEX NUT (7/16-14)
(Superseded to UP07187)

$

$

Not available

32

Homelite 83054

LOCKWASHER (7/16)

$

$

Currently unavailable

33

Homelite 544582B

IMPELLER HOUSING
(Superseded to UP08153)

$

$

Not available

34

Homelite 54963

STUD (7/16-14)
(Superseded to UP05635)

$

$

Not available

35

Homelite 62688

SLINGER
(Superseded to UP06433)

$

$

Not available
